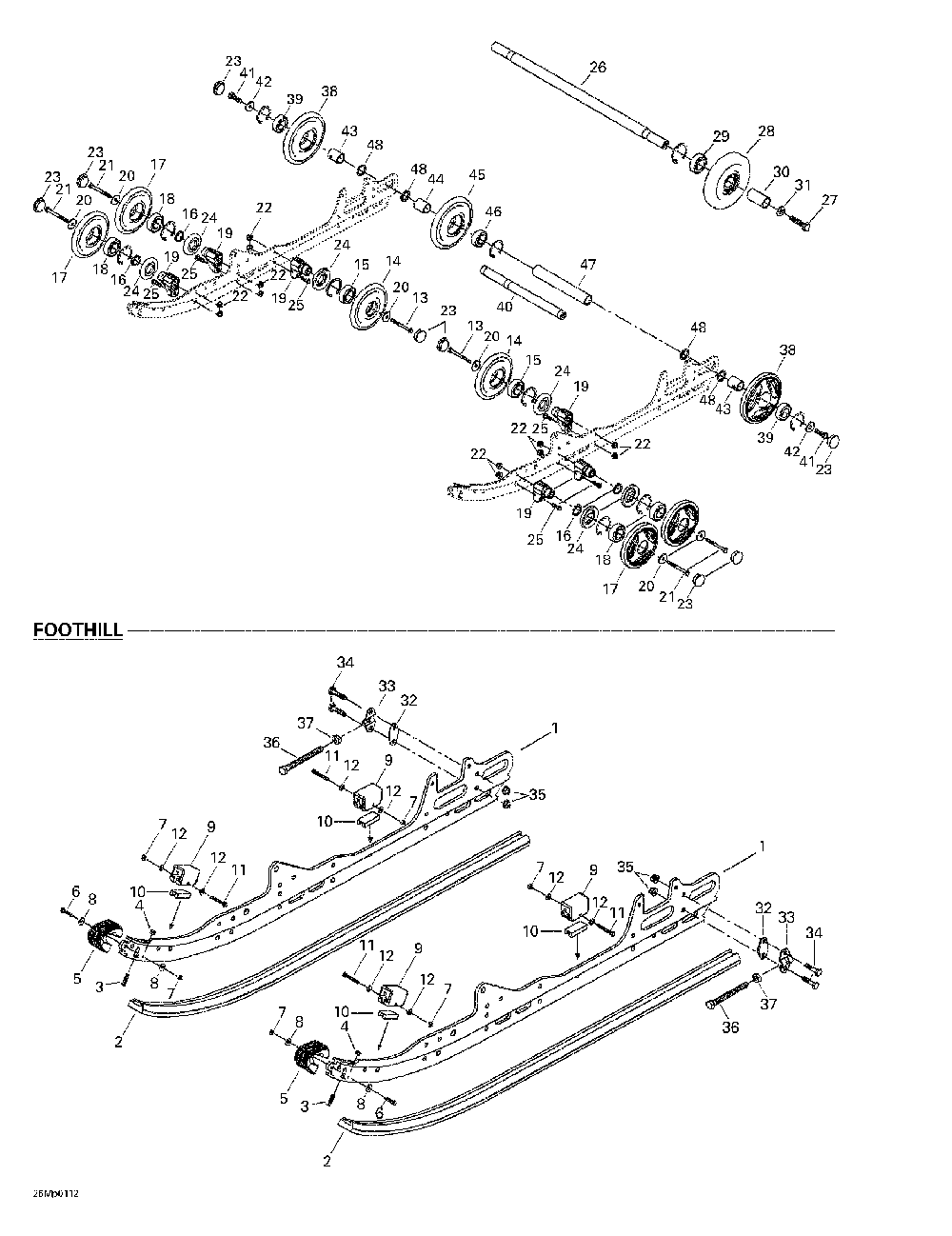

08- rear suspension (foothill)

Ski-Doo (Bombardier) Summit 600/700/800
Ski-Doo (Bombardier)
#oem кодцена
1
503189415
Rail Usine *runner-mach Summit 800.
2
503189639
Glissiere Noir 136" *shoe-runner Black Summit 800.
3
208562560
Screw-ctsk.ov.hd.ph.din.966a-a2 Summit 800.
4
232561414
Nut-stop Elastic Din.985 Summit 800.
5
572075400
Protecteur Rail*prot-runner Summit 800.
6
207152544
Screw-hex.cap Din.933 Summit 800.
7
232551414
Nut-stop Elastic Din.985 Summit 800.
8
391301600
Rondelle *washer Summit 800.
9
503190905
Butee Caout As *stopper-rub As Summit 800.
10
572084800
Renfort Butee *reinf.-stopper Summit 800.
11
207054044
Screw-hex.cap Din.931 Summit 800.
12
391301700
Rondelle *washer Summit 800.
13
207088044
Screw-hex.cap Din.931 Summit 800.
14
503191029
Roue 135 *wheel-135 Includes 14 - 15. Summit 800.
15
293350055
Ball Bearing Summit 800.
16
503173700
Rondelle *washer Summit 800.
17
503190785
Roue135 Jaune *wheel135yellow Includes 17 - 18. Summit 800.
19
503190389
Support Moulee *support-cast. Summit 800.
20
503183100
Rondelle *washer Summit 800.
21
207088544
Screw-hex.cap Din.931 Summit 800.
22
233281414
Nut-flange Elastic Din.6926 Summit 800.
23
570063600
Capuchon Roue *cap-wheel Summit 800.
24
572089000
Joint Labyrint.*seal-labyrinth Summit 800.
25
207182544
Screw-hex.cap Din.933 Summit 800.
26
503153600
Axe Roue Supp. *axle-wheel Idler Summit 800.
27
207383044
Screw-hex.cap Iso.4017 S.grip Summit 800.
28
572043500
Roue Support *wheel-idler Includes 28 - 29. Summit 800.
29
405404600
Roulement Bille*ball Bearing Summit 800.
30
572048300
Entretoise *spacer Summit 800.
31
503189157
Rondelle *washer Summit 800.
32
503189160
Entretoise *spacer Summit 800.
33
503155300
Tendeur *tensioner Summit 800.
34
207063044
Screw-hex.cap Din.931 Summit 800.
35
233261414
Nut-flange Elastic Din.6926 Summit 800.
36
230100044
Screw-hex.cap Iso.4017 Summit 800.
37
233601416
Nut-locking Elastic Din.982 Summit 800.
38
503190817
Roue 165 Jaune *wheel 165 Yellow Includes 38 - 39. Summit 800.
40
503167900
Essieu Arriere *axle-rear Summit 800.
41
250000019
Screw-hex.cap With Nylon Patch Summit 800.
42
503183300
Rondelle *washer Summit 800.
43
503189809
Entretoise *spacer Summit 800.
44
503182900
Entretoise *spacer Summit 800.
45
503189568
Roue 165 *wheel-165 Includes 45 - 46. Summit 800.
47
503183000
Entretoise *spacer Summit 800.
48
503180400
Rondelle *washer Summit 800.
