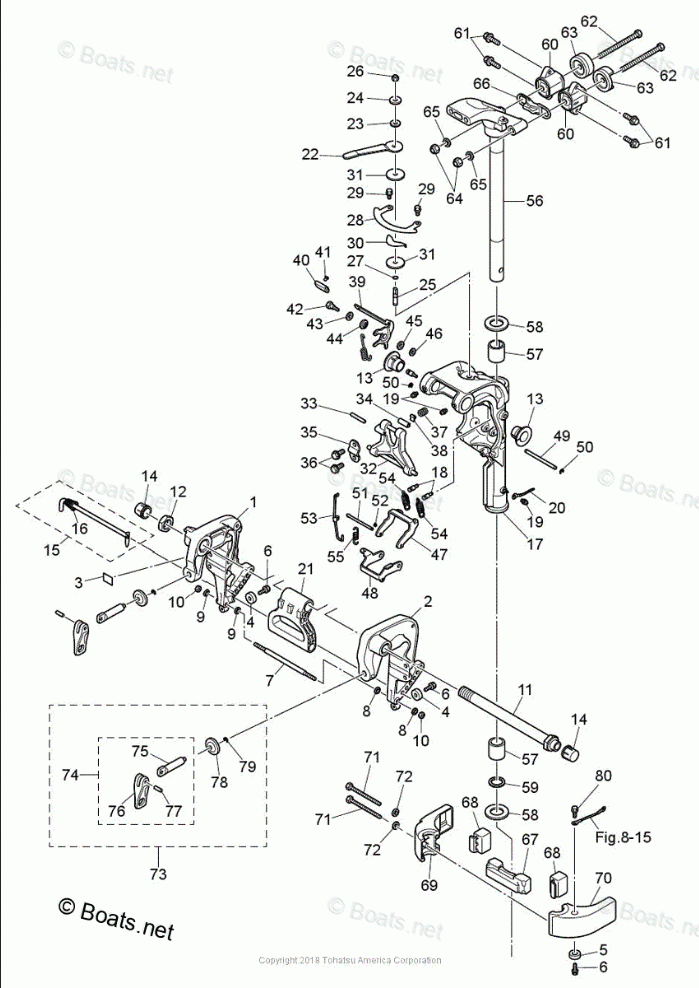

BRACKET (MANUAL)

Tohatsu MFS9.9E (EFI)
Tohatsu
#oem кодцена
10-78
332621011
PAD, CLAMP SCREW (THREADED STYLE)
10-69
3RSQ614010
MOUNT BRACKET (R)
10-2
3RSQ621130
CLAMP BRACKET (L)
10-1
3RSQ621120
CLAMP BRACKET (R)
10-74
3RSQ621080
CLAMP SCREW ASSY
10-73
3RSQ621050
CLAMP SCREW KIT
10-76
3RSQ621020
CLAMP SCREW HANDLE
10-56
3RSQ620100
STEERING SHAFT ASSY
10-70
3RSQ614020
MOUNT BRACKET (L)
10-47
3RS663510
REVERSE LOCK (R)
10-32
3RSQ629930
TILT STOPPER
10-54
3RS663310
REVERSE LOCK SPRING (S)
10-49
3RS663240
REVERSE LOCK SHAFT
10-48
3RS663130
REVERSE LOCK ARM
10-53
3RS663120
REVERSE LOCK LINK
10-39
3RS663110
REVERSE LOCK LEVER
10-28
3RS624470
PLATE
10-25
3RS624450
BOLT
10-17
3RSQ623090
SWIVEL BRACKET ASSY (L/UL)
10-56
3RTQ620100
STEERING SHAFT ASSY
10-15
3RS621230
THRUST ROD ASSY
10-43
9401030800
WASHER (10 MULTIPLE)
10-77
9514030622
SPRING PIN
10-33
9514030535
SPRING PIN
10-79
9453030600
E-RING (10 MULTIPLE)
10-50
9453030600
E-RING (10 MULTIPLE)
10-65
9402E31000
WASHER (10 MULTIPLE)
10-8
9401E30600
WASHER (10 MULTIPLE)
10-9
9401E30600
WASHER (10 MULTIPLE)
10-10
9301030600
NUT (10 MULTIPLE)
10-17
3RTQ623090
SWIVEL BRACKET ASSY (S)
10-71
9161E30885
BOLT
10-6
9101E35620
BOLT & WASHER (10 MULTIPLE)
10-80
9101E35612
BOLT & WASHER (10 MULTIPLE)
10-29
9101E35612
BOLT & WASHER (10 MULTIPLE)
10-61
9101035830
BOLT
10-36
9101035818
BOLT
10-26
3V5624420
NYLON NUT, CO-PILOT (8MM)
10-22
3RS624410
FRICTION LEVER
10-7
3RS621170
DISTANCE PIECE
10-5
338602182
ANODE
10-34
350624370
BUSHING
10-11
3AC621910
SWIVEL BRACKET BOLT
10-45
3AA837190
WASHER
10-21
3AA611990
CARRYING HANDLE
10-20
3A3623961
GROUND WIRE
10-16
369621222
SPRING
10-55
350663150
SPRING, REVERSE LOCK
10-35
350624391
SET PLATE
10-13
349621260
BUSHING BRACKET BOLT
10-42
3AL052540
SHOULDER BOLT
10-41
346663340
STOPPER
10-38
346624380
SET PIECE
10-14
346621270
BRACKET CAP
10-12
346621241
BRACKET NUT
10-27
345660210
O-RING A
10-19
344671771
GREASE NIPPLE
10-4
338602182
ANODE
10-44
3AL052120
BUSHING
10-40
3AL663330
LOCK LEVER GRIP
10-75
3RS621060
CLAMP SCREW
10-57
3R3624170
BUSHING
10-66
3RS613370
DAMPER (UPPER)
10-67
3RS613360
DAMPER (LOWER)
10-63
3RS613330
DAMPER (UPPER)
10-62
3RS613070
BOLT
10-68
3RS613020
RUBBER MOUNT (LOWER)
10-60
3RS613010
RUBBER MOUNT (UPPER)
10-23
3R3624430
WASHER
10-46
3R0663080
WASHER, 6-16-1.5
10-24
3B7637300
WASHER
10-72
3P0662330
WASHER (10 MULTIPLE)
10-3
3H8720490
LABEL, CO-PILOT
10-58
3H8624231
THRUST PLATE
10-59
3H8624150
O-RING
10-51
3G2663210
ROD REVERSE LOCK A
10-37
3C8624211
SPRING
10-64
3C8620980
NYLON NUT
10-18
3BA663140
PIN
10-52
9515030212
SPLIT PIN
