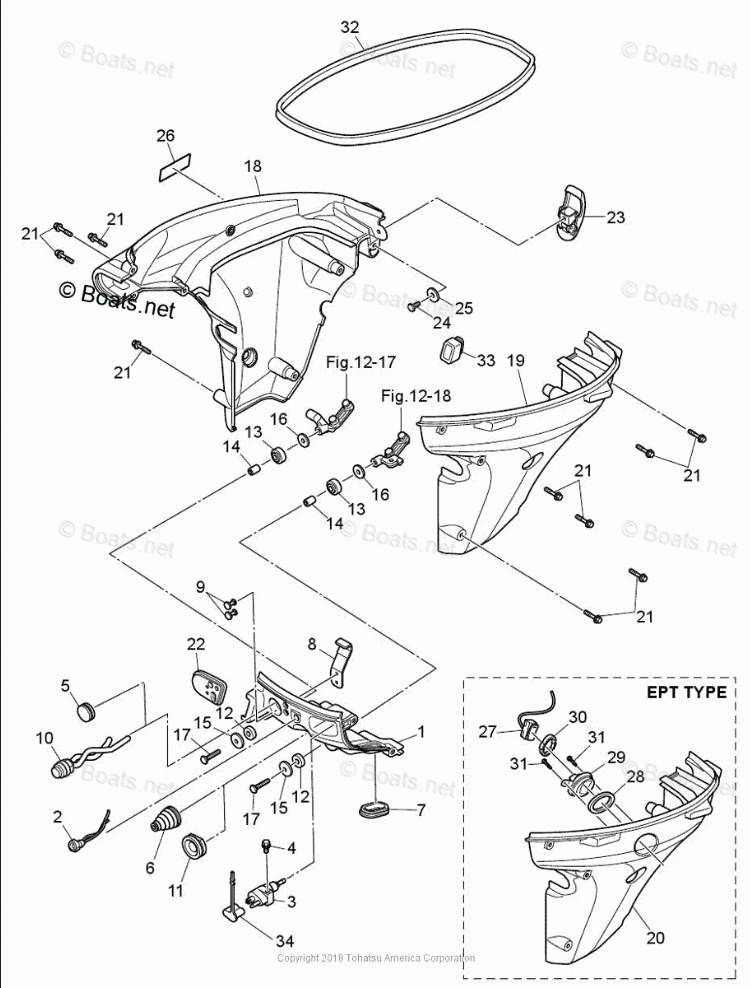

FRONT PANEL & DRIVE SHAFT HOUSING COVER

Tohatsu MFS9.9E (EFI)
Tohatsu
#oem кодцена
13-25
345051221
WASHER, RACHET
13-6
3RS662600
GROMMET (MF/EF)
13-4
9101E35616
BOLT & WASHER (10 MULTIPLE)
13-17
9101E30630
BOLT (10 MULTIPLE)
13-24
9101030612
BOLT (10 MULTIPLE)
13-30
3SY760350
GROMMET, SWITCH BOX
13-29
3SY760320
SWITCH BOX
13-27
3SY726150
PTT SWITCH ASSY
13-20
3RTQ670040
DRIVE SHAFT HOUSING COVER (L)
13-1
3RSQ670100
FRONT PANEL
13-19
3RSQ670040
DRIVE SHAFT HOUSING COVER (L)
13-18
3RSQ670030
DRIVE SHAFT HOUSING COVER (R)
13-33
3RS837320
GROMMET
13-8
3RS675120
COVER STAY (FRONT)
13-32
3RS675010
TOP COWL SEAL
13-21
3RS674850
BOLT
13-22
3RS636210
GROMMET
13-5
345671170
GROMMET
13-9
3AL675920
RIVET
13-11
345671610
GROMMET
13-12
346671130
MOUNT RUBBER
13-16
346671150
WASHER
13-3
394702600
FUEL CONN, ENGINE SIDE, MALE, 4 STROKE, 4-50
13-23
3AA671201
COWL LATCH ASSY.
13-10
3AA760260
MAIN SWITCH
13-13
3B7069200
MOUNT RUBBER
13-14
3RS636190
COLLAR
13-7
3BJ662260
GROMMET, SHIFT ROD
13-15
3BJ671150
RUBBER MOUNT WASHER
13-28
3F3726161
GASKET, PTT SWITCH NS70B, D40/50B2
13-26
3H6675720
LABEL, STORAGE
13-34
3H6702620
PROTECTOR, FUEL CONN
13-2
3R3710400
PILOT LAMP ASSY
13-31
9215030512
SCREW (10 MULTIPLE)
