BRACKET (PTT) Каталог оригинальных запчастей для лодочных моторов Tohatsu MFS9.9E (EFI) (2018)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

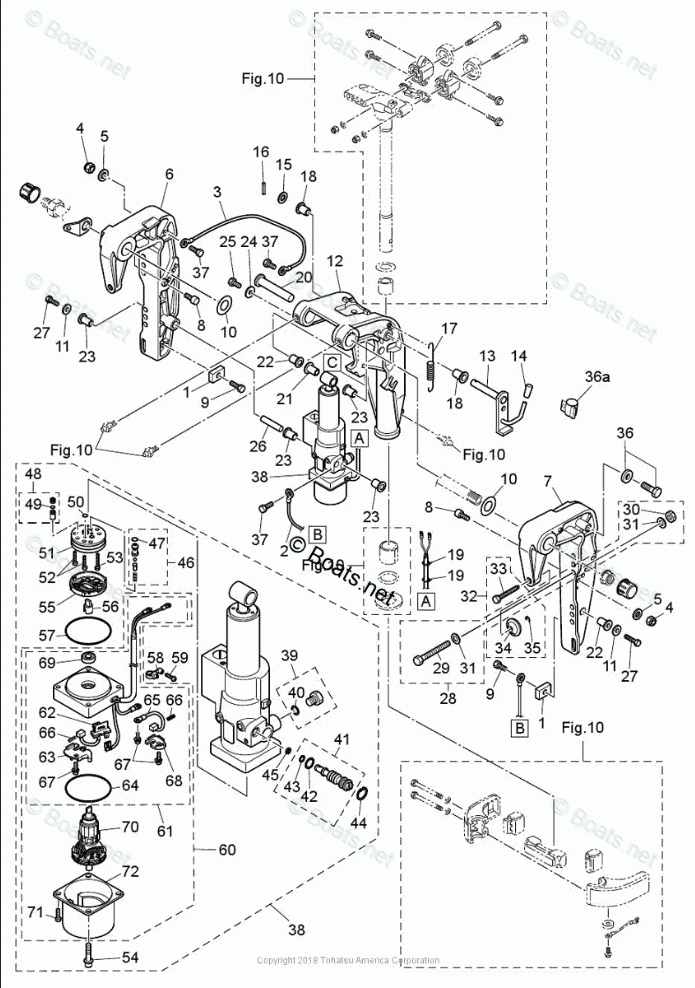

BRACKET (PTT)

Tohatsu MFS9.9E (EFI)

BRACKET (PTT)

#

oem код

название

цена

11-11

WASHER

WASHER

11-43

O-RING

O-RING

11-72

YOKE ASSY

YOKE ASSY

11-62

BREAKER

BREAKER

11-70

ARMATURE ASSY

ARMATURE ASSY

11-63

BREAKER HOLDER

BREAKER HOLDER

11-68

BRUSH HOLDER

BRUSH HOLDER

11-47

O-RING

O-RING

11-64

O-RING

O-RING

11-54

BOLT

BOLT

11-8

TRIM LOCK PIN

TRIM LOCK PIN

11-26

CYLINDER PIN (LOWER)

CYLINDER PIN (LOWER)

11-21

BUSHING, 13-16-31

BUSHING, 13-16-31

11-23

BUSHING, 13-16-31

BUSHING, 13-16-31

11-13

TILT STOPPER

TILT STOPPER

11-4

NYLON NUT, CO-PILOT (8MM)

NYLON NUT, CO-PILOT (8MM)

11-39

CAP ASSY

CAP ASSY

11-48

VALVE ASSY

VALVE ASSY

11-12

SWIVEL BRACKET ASSY

SWIVEL BRACKET ASSY

11-29

BOLT

BOLT

11-35

E-RING (10 MULTIPLE)

E-RING (10 MULTIPLE)

11-15

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

11-31

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

11-30

NUT (10 MULTIPLE)

NUT (10 MULTIPLE)

11-67

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

11-71

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

11-36

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

11-19

BAND LEAD WIRE 203-LOCAL PURCHASE

BAND LEAD WIRE 203-LOCAL PURCHASE

11-9

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

11-37

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

11-27

BOLT

BOLT

11-25

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

11-58

BAND

BAND

11-7

CLAMP BRACKET, (PTT-LEFT) PORT

CLAMP BRACKET, (PTT-LEFT) PORT

11-6

CLAMP BRACKET, (PTT-RIGHT) STARBOARD

CLAMP BRACKET, (PTT-RIGHT) STARBOARD

11-59

SCREW, PRE-COATED

SCREW, PRE-COATED

11-12

SWIVEL BRACKET ASSY

SWIVEL BRACKET ASSY

11-34

PAD, CLAMP SCREW (THREADED STYLE)

PAD, CLAMP SCREW (THREADED STYLE)

11-40

O-RING

O-RING

11-46

RELIEF VALVE ASSY

RELIEF VALVE ASSY

11-41

MANUAL VALVE ASSY

MANUAL VALVE ASSY

11-55

FILTER B

FILTER B

11-52

BOLT

BOLT

11-53

BOLT

BOLT

11-50

O-RING

O-RING

11-45

SEAL WASHER

SEAL WASHER

11-51

PUMP

PUMP

11-10

WASHER

WASHER

11-3

GROUND WIRE

GROUND WIRE

11-2

GROUND WIRE

GROUND WIRE

11-14

GRIP

GRIP

11-18

COLLAR

COLLAR

11-36A

CORD CLAMP A

CORD CLAMP A

11-24

WASHER, RACHET

WASHER, RACHET

11-28

RIGGING BOLT SET

RIGGING BOLT SET

11-56

COUPLING, PUMP

COUPLING, PUMP

11-38

POWER TRIM AND TILT ASSY

POWER TRIM AND TILT ASSY

11-44

C-RING

C-RING

11-32

CLAMP SCREW KIT

CLAMP SCREW KIT

11-33

CLAMP SCREW (PTT)

CLAMP SCREW (PTT)

11-61

MOTOR BRACKET ASSY

MOTOR BRACKET ASSY

11-60

MOTOR ASSY, PTT

MOTOR ASSY, PTT

11-49

O-RING

O-RING

11-42

O-RING

O-RING

11-57

O-RING

O-RING

11-65

BRUSH

BRUSH

11-22

BUSHING, 13-17-19.5

BUSHING, 13-17-19.5

11-17

SPRING, TILT STOPPER

SPRING, TILT STOPPER

11-5

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

11-20

CYLINDER PIN (UPPER)

CYLINDER PIN (UPPER)

11-1

ANODE, ZINC (SQUARE) *{/* For 5B models prior to sn 16748, use 369602181M (round anode) */}*

ANODE, ZINC (SQUARE) *{/* For 5B models prior to sn 16748, use 369602181M (round anode) */}*

11-69

OIL SEAL-NOT FOR SALE

OIL SEAL-NOT FOR SALE

11-66

SPRING, BRUSH

SPRING, BRUSH

11-16

SPRING PIN (10 MULTIPLE)

SPRING PIN (10 MULTIPLE)
