ТОПЛИВНЫЙ НАСОС Каталог оригинальных запчастей для лодочных моторов Tohatsu MFS9.9E (EFI) (2018)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Tohatsu
2018
MFS9.9E (EFI)
ТОПЛИВНЫЙ НАСОС
ТОПЛИВНЫЙ НАСОС

ТОПЛИВНЫЙ НАСОС

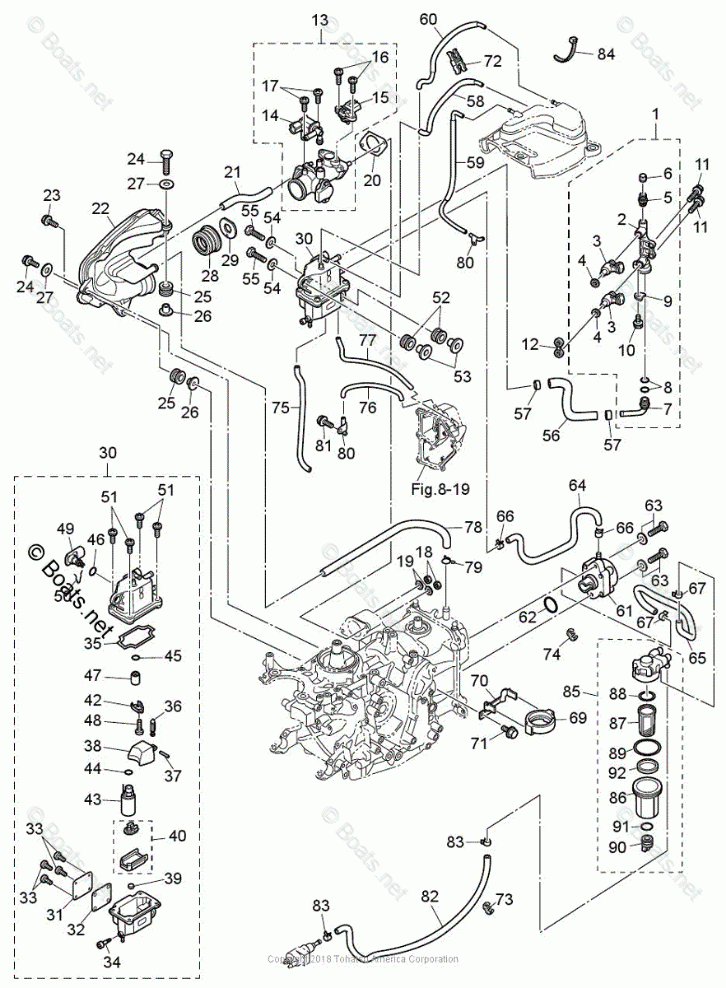

Tohatsu MFS9.9E (EFI)

ТОПЛИВНЫЙ НАСОС

#

oem код

название

цена

5-84

WIRE TIE BAND

WIRE TIE BAND

5-72

CLAMP

CLAMP

5-82

FUEL HOSE W/PROTECTOR

FUEL HOSE W/PROTECTOR

5-29

RESTRICTOR (MFS9.9)

RESTRICTOR (MFS9.9)

5-28

GASKET (MFS9.9)

GASKET (MFS9.9)

5-75

WATER HOSE

WATER HOSE

5-77

COOLING HOSE

COOLING HOSE

5-59

VENT HOSE W/PROTECTOR

VENT HOSE W/PROTECTOR

5-65

FUEL HOSE W/PROTECTOR

FUEL HOSE W/PROTECTOR

5-45

O-RING

O-RING

5-26

COLLAR

COLLAR

5-73

CLAMP

CLAMP

5-53

COLLAR

COLLAR

5-76

COOLING HOSE

COOLING HOSE

5-4

SEAL RING

SEAL RING

5-3

FUEL INJECTOR ASSY

FUEL INJECTOR ASSY

5-15

MAP SENSOR

MAP SENSOR

5-21

HOSE

HOSE

5-14

ISC VALVE

ISC VALVE

5-2

FUEL RAIL

FUEL RAIL

5-60

VENT HOSE W/PROTECTOR

VENT HOSE W/PROTECTOR

5-74

CLAMP

CLAMP

5-58

VENT HOSE W/PROTECTOR

VENT HOSE W/PROTECTOR

5-71

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

5-18

NUT (10 MULTIPLE)

NUT (10 MULTIPLE)

5-17

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

5-16

SCREW

SCREW

5-51

SCREW

SCREW

5-48

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

5-33

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

5-63

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

5-11

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

5-10

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

5-5

VALVE ASSY

VALVE ASSY

5-81

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

5-24

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

5-55

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

5-23

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

5-9

PLATE, NIPPLE

PLATE, NIPPLE

5-8

O-RING 9.8-1.9

O-RING 9.8-1.9

5-7

NIPPLE

NIPPLE

5-6

CAP, VALVE

CAP, VALVE

5-1

FUEL RAIL ASSY

FUEL RAIL ASSY

5-32

SEAL

SEAL

5-57

CLAMP

CLAMP

5-61

FUEL PUMP, F25/30A/B F9.9/15/18/20

FUEL PUMP, F25/30A/B F9.9/15/18/20

5-85

FUEL FILTER ASSY

FUEL FILTER ASSY

5-56

FUEL HOSE W/PROTECTOR

FUEL HOSE W/PROTECTOR

5-65

FUEL HOSE W/PROTECTOR

FUEL HOSE W/PROTECTOR

5-80

NIPPLE

NIPPLE

5-52

RUBBER MOUNT

RUBBER MOUNT

5-25

RUBBER MOUNT

RUBBER MOUNT

5-82

FUEL HOSE W/ PROTECTOR

FUEL HOSE W/ PROTECTOR

5-62

O-RING

O-RING

5-67

CLIP, @ 9.4

CLIP, @ 9.4

5-70

PLATE

PLATE

5-83

CLIP, @ 9.4

CLIP, @ 9.4

5-66

CLIP, @ 9.4

CLIP, @ 9.4

5-27

WASHER

WASHER

5-54

WASHER

WASHER

5-79

CLIP

CLIP

5-20

GASKET, CARBURETOR

GASKET, CARBURETOR

5-88

O-RING A

O-RING A

5-87

FILTER

FILTER

5-69

FUEL FILTER HOLDER

FUEL FILTER HOLDER

5-22

INTAKE SILENCER ASSY

INTAKE SILENCER ASSY

5-31

COVER

COVER

5-39

GROMMET

GROMMET

5-49

VST CONNECTOR

VST CONNECTOR

5-42

HOLDER

HOLDER

5-47

FUEL REGULATOR

FUEL REGULATOR

5-30

VAPOR SEPARATOR ASSY

VAPOR SEPARATOR ASSY

5-13

THROTTLE BODY ASSY

THROTTLE BODY ASSY

5-46

O-RING

O-RING

5-78

BREATHER HOSE W/PROTECTOR

BREATHER HOSE W/PROTECTOR

5-40

FILTER (INLET)

FILTER (INLET)

5-43

FUEL FEED PUMP

FUEL FEED PUMP

5-44

O-RING

O-RING

5-35

GASKET

GASKET

5-64

FUEL HOSE W/PROTECTOR

FUEL HOSE W/PROTECTOR

5-64

FUEL HOSE W/PROTECTOR

FUEL HOSE W/PROTECTOR

5-12

INSULATOR

INSULATOR

5-34

DRAIN SCREW

DRAIN SCREW

5-50

CLIP

CLIP

5-36

FLOAT VALVE ASSY

FLOAT VALVE ASSY

5-37

FLOAT ARM PIN

FLOAT ARM PIN

5-38

FLOAT

FLOAT

5-19

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)
