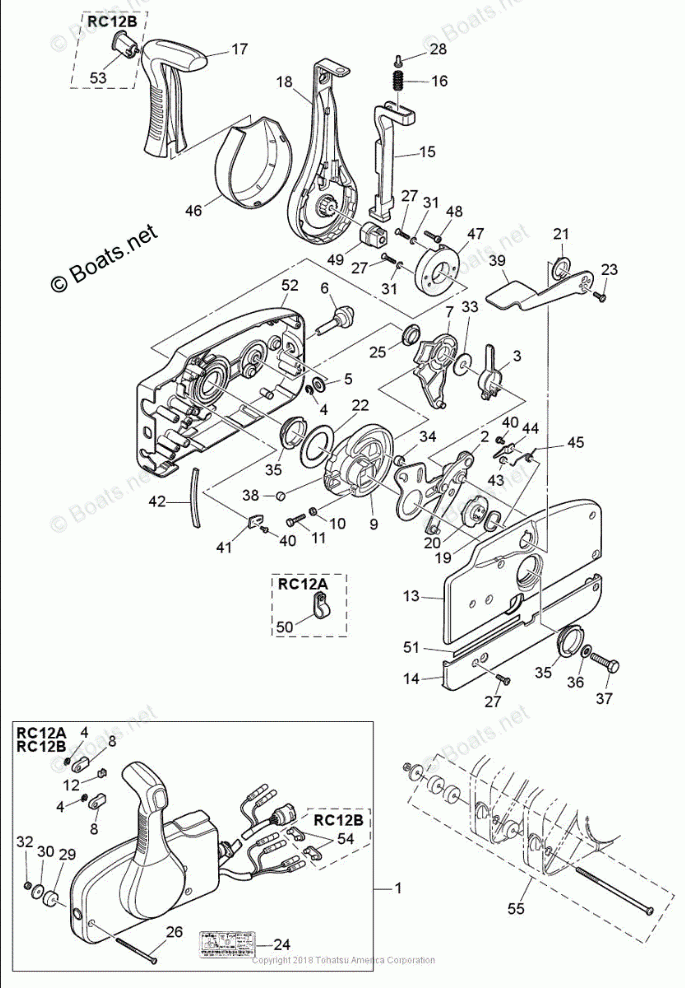

COMPONENT PARTS OF REMOTE CONTROL

Tohatsu MFS9.9E (EFI)
Tohatsu
#oem кодцена
17-54
353760370
PLUG
17-41
3A3844230
RETAINER
17-1
3U2B843300
R C BOX (RC12A) MFS8-30C, M40D2-90A W/PTT/ELECTRIC START(2018)
17-4
9453030600
E-RING (10 MULTIPLE)
17-36
9401030800
WASHER (10 MULTIPLE)
17-32
9301030600
NUT (10 MULTIPLE)
17-10
9301030500
NUT (10 MULTIPLE)
17-23
9216030512
SCREW (10 MULTIPLE)
17-40
9215030406
SCREW (10 MULTIPLE)
17-11
9101030525
BOLT (10 MULTIPLE)
17-21
3A3844350
BUSHING
17-25
3A3844320
BUSHING B
17-3
3A3844280
ARM
17-44
3A3844260
RETAINER
17-45
3A3844250
SPRING, FREE ACCELERATOR
17-43
3A3844240
ROLLER, FREE ACCELERATOR
17-22
3A3844220
THRUST PLATE
17-30
353843710
WASHER
17-2
3A3843651
THROTTLE ARM
17-38
353843880
ROLLER, THROTTLE DRUM
17-5
353843940
WASHER
17-55
3A3813010
TWIN SLRC KIT
17-8
3A3833142
TERMINAL EYE
17-42
3A3843070
SPRING
17-9
3A3843642
DRIVE GEAR
17-19
3A3843680
WAVE WASHER
17-34
3A3844210
ROLLER
17-29
3A3843740
SPACER
17-12
3A3843760
GROMMET
17-7
3A3843810
SHIFT GEAR ASSY
17-33
3A3843830
WASHER
17-20
3A3843910
DRUM, FREE ACCELERATOR
17-16
3A3844030
SPRING
17-1
3U2B843400
RC BOX, RC12B (MFS-15/18B2-15/20D-25/30C EP) W/ ELECTRIC START W/O PTT(2018)
