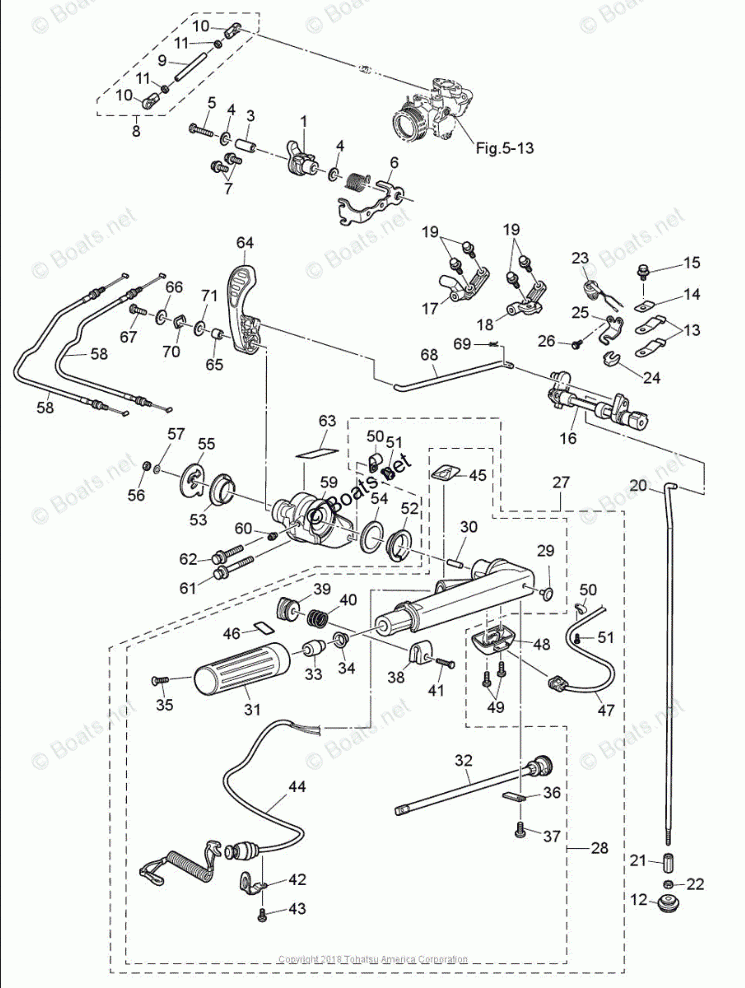

TILLER HANDLE & SHIFT
TILLER HANDLE & SHIFT

TILLER HANDLE & SHIFT

Tohatsu MFS9.9E (EFI)

TILLER HANDLE & SHIFT

#

oem код

название

цена

12-50

CLAMP

CLAMP

12-67

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

12-47

PTT SWITCH ASSY

PTT SWITCH ASSY

12-59

STEERING BRACKET

STEERING BRACKET

12-27

TILLER HANDLE ASSY (EFT)

TILLER HANDLE ASSY (EFT)

12-62

BOLT

BOLT

12-68

SHIFT LEVER ROD

SHIFT LEVER ROD

12-18

HOLDER

HOLDER

12-28

TILLER HANDLE ASSY (MF/EF)

TILLER HANDLE ASSY (MF/EF)

12-38

FRICTION PIECE

FRICTION PIECE

12-40

SPRING

SPRING

12-32

THROTTLE SHAFT

THROTTLE SHAFT

12-39

ADJUST NUT

ADJUST NUT

12-52

BUSHING, HANDLE

BUSHING, HANDLE

12-48

SWITCH BOX

SWITCH BOX

12-14

SHIFT LEVER STOPPER

SHIFT LEVER STOPPER

12-41

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

12-20

SHIFT ROD (S)

SHIFT ROD (S)

12-43

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

12-69

R-PIN (10 MULTIPLE)

R-PIN (10 MULTIPLE)

12-57

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

12-56

NUT (10 MULTIPLE)

NUT (10 MULTIPLE)

12-22

NUT (10 MULTIPLE)

NUT (10 MULTIPLE)

12-11

NUT (10 MULTIPLE)

NUT (10 MULTIPLE)

12-35

SCREW

SCREW

12-37

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

12-5

BOLT

BOLT

12-49

SCREW

SCREW

12-51

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

12-19

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

12-26

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

12-7

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

12-15

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

12-20

SHIFT ROD (L)

SHIFT ROD (L)

12-17

HOLDER

HOLDER

12-60

GREASE NIPPLE

GREASE NIPPLE

12-30

STUD

STUD

12-65

COLLAR, BRACKET

COLLAR, BRACKET

12-34

BUSHING

BUSHING

12-33

SHAFT, RUBBER THROTTLE

SHAFT, RUBBER THROTTLE

12-13

SHIFT LEVER STOPPER

SHIFT LEVER STOPPER

12-4

WASHER

WASHER

12-10

CAP C BALL JOINT

CAP C BALL JOINT

12-36

SUPPORTER

SUPPORTER

12-31

GRIP

GRIP

12-45

STOP SWITCH DECAL

STOP SWITCH DECAL

12-46

THROTTLE DECAL

THROTTLE DECAL

12-21

SHIFT ROD JOINT

SHIFT ROD JOINT

12-24

ACTUATOR, NEUTRAL SWITCH

ACTUATOR, NEUTRAL SWITCH

12-29

PIN

PIN

12-66

WASHER

WASHER

12-23

NEUTRAL SWITCH

NEUTRAL SWITCH

12-70

WAVE WASHER

WAVE WASHER

12-16

SHIFT LEVER SHAFT ASSY

SHIFT LEVER SHAFT ASSY

12-58

THROTTLE WIRE

THROTTLE WIRE

12-3

COLLAR

COLLAR

12-64

SHIFT LEVER

SHIFT LEVER

12-12

GROMMET

GROMMET

12-1

THROTTLE DRUM ASSY

THROTTLE DRUM ASSY

12-9

THROTTLE ROD

THROTTLE ROD

12-8

LINK ROD ASSY (THROTTLE)

LINK ROD ASSY (THROTTLE)

12-6

THROTTLE WIRE BRACKET

THROTTLE WIRE BRACKET

12-44

STOP SWITCH ASSY

STOP SWITCH ASSY

12-61

BOLT

BOLT

12-54

WASHER

WASHER

12-55

COVER

COVER

12-53

BUSHING

BUSHING

12-71

WAVE WASHER

WAVE WASHER

12-42

BRACKET

BRACKET

12-25

NEUTRAL SWITCH BRACKET

NEUTRAL SWITCH BRACKET
