CYLINDER & CRANK CASE

CYLINDER & CRANK CASE

Tohatsu MFS9.9E (EFI)

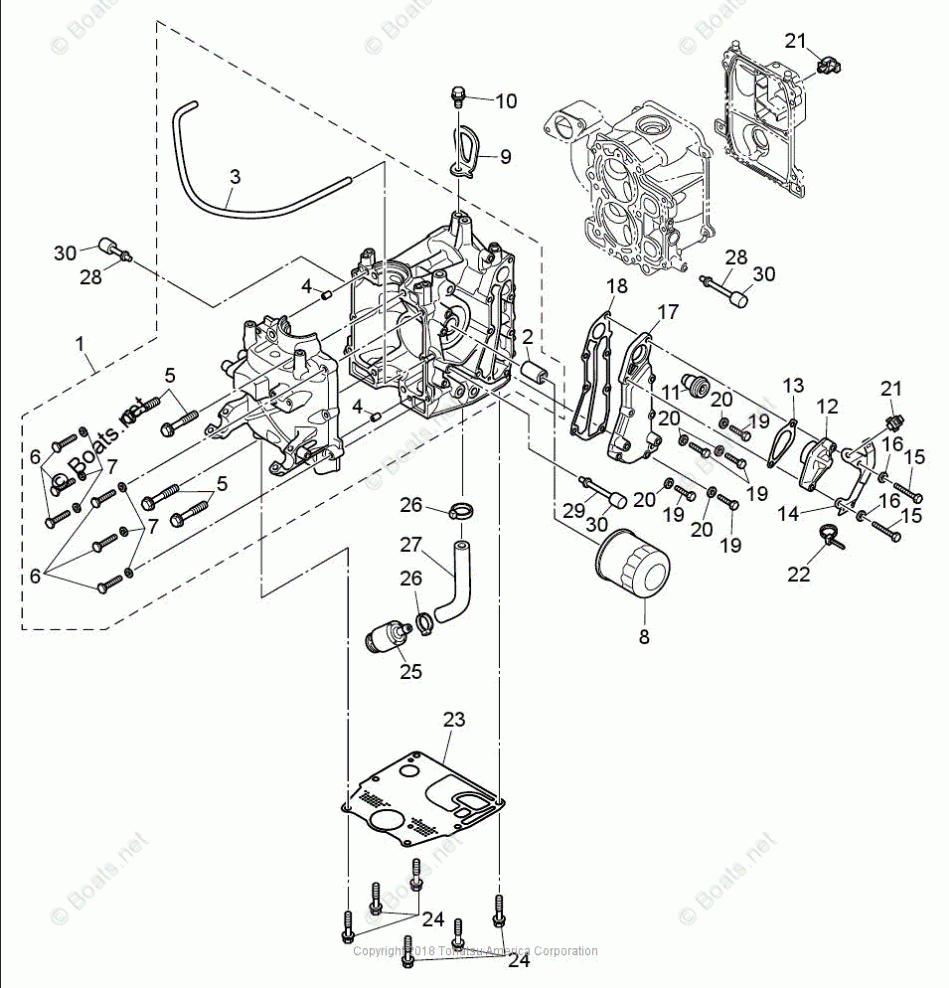

CYLINDER & CRANK CASE

#

oem код

название

цена

1-4

DOWEL PIN 6-12

DOWEL PIN 6-12

1-2

OIL FILTER BOLT

OIL FILTER BOLT

1-27

HOSE

HOSE

1-7

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

1-20

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

1-16

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

1-10

BOLT

BOLT

1-29

COWL SUPPORT

COWL SUPPORT

1-14

BRACKET

BRACKET

1-17

EXHAUST COVER (OUTER)

EXHAUST COVER (OUTER)

1-1

CYLINDER BLOCK & CRANKCASE ASSY

CYLINDER BLOCK & CRANKCASE ASSY

1-30

RUBBER, COWL SUPPORT

RUBBER, COWL SUPPORT

1-28

COWL SUPPORT

COWL SUPPORT

1-25

OIL STRAINER ASSY

OIL STRAINER ASSY

1-18

EXHAUST COVER GASKET

EXHAUST COVER GASKET

1-13

GASKET, THERMOSTAT *{/*For 40C serial 94363 and below has different gasket. That gasket is no longer available. Have to replace cylinder head and thermostat cap to newer style.*/}*

GASKET, THERMOSTAT *{/*For 40C serial 94363 and below has different gasket. That gasket is no longer available. Have to replace cylinder head and thermostat cap to newer style.*/}*

1-15

BOLT

BOLT

1-9

HANGER

HANGER

1-23

ENGINE BASEMENT GASKET

ENGINE BASEMENT GASKET

1-11

THERMOSTAT

THERMOSTAT

1-8

OIL FILTER, 9.9-60 HP 4-STROKE

OIL FILTER, 9.9-60 HP 4-STROKE

1-19

BOLT 25MM

BOLT 25MM

1-6

BOLT, 60MM X 30MM (10-MULTIPLE)

BOLT, 60MM X 30MM (10-MULTIPLE)

1-21

BAND

BAND

1-5

BOLT

BOLT

1-12

CAP, THERMOSTAT

CAP, THERMOSTAT

1-24

BOLT

BOLT

1-22

WIRE TIE BAND

WIRE TIE BAND

1-26

WIRE TIE BAND

WIRE TIE BAND

1-3

VINYL PIPE (1 EA.=1 METER)

VINYL PIPE (1 EA.=1 METER)
