Tohatsu MFS9.9E (EFI)

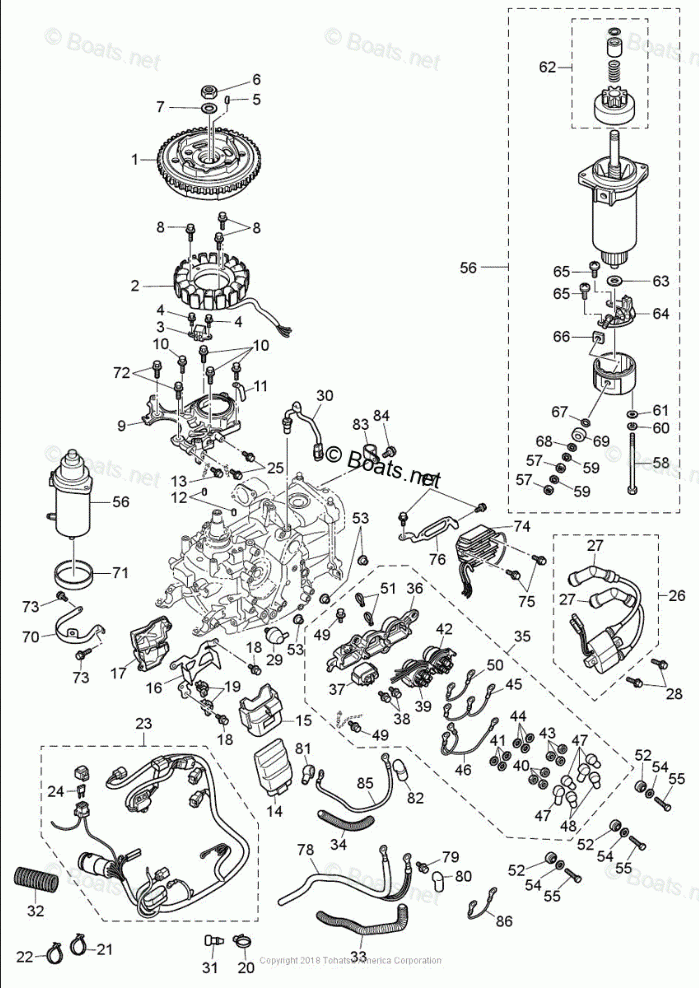

MAGNETO & ELECTRIC PARTS

#

oem код

название

цена

7-12

DOWEL PIN 6-12

DOWEL PIN 6-12

7-31

PLUG ,CABLE TERMINAL

PLUG ,CABLE TERMINAL

7-72

BOLT

BOLT

7-4

BOLT

BOLT

7-55

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

7-47

TERMINAL CAP

TERMINAL CAP

7-81

TERMINAL CAP

TERMINAL CAP

7-32

PROTECTOR

PROTECTOR

7-51

LEAD WIRE BAND, 104

LEAD WIRE BAND, 104

7-24

FUSE, 20A

FUSE, 20A

7-5

MAGNETO KEY

MAGNETO KEY

7-73

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

7-23

CORD ASSY (EP/EPT)

CORD ASSY (EP/EPT)

7-14

ECU ASSY (9.9)

ECU ASSY (9.9)

7-23

CORD ASSY (EF/EFT)

CORD ASSY (EF/EFT)

7-35

ELECTRIC BRACKET ASSY, EFT/EPT

ELECTRIC BRACKET ASSY, EFT/EPT

7-17

PLATE

PLATE

7-1

FLYWHEEL W/ RING GEAR (EF/EP)

FLYWHEEL W/ RING GEAR (EF/EP)

7-2

ALTERNATOR (EF)

ALTERNATOR (EF)

7-76

RECTIFIER BRACKET

RECTIFIER BRACKET

7-85

STARTER CABLE

STARTER CABLE

7-38

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

7-77

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

7-53

COLLAR

COLLAR

7-40

NUT (10 MULTIPLE)

NUT (10 MULTIPLE)

7-41

SPRING WASHER (10 MULTIPLE)

SPRING WASHER (10 MULTIPLE)

7-44

SPRING WASHER (10 MULTIPLE)

SPRING WASHER (10 MULTIPLE)

7-59

SPRING WASHER (10 MULTIPLE)

SPRING WASHER (10 MULTIPLE)

7-61

WASHER-DISCONTINUED *{/*NO LONGER AVAILABLE*/}*

WASHER-DISCONTINUED *{/*NO LONGER AVAILABLE*/}*

7-68

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

7-6

NUT, RH (CLOCKWISE) SB #04-012

NUT, RH (CLOCKWISE) SB #04-012

7-57

NUT (10 MULTIPLE)

NUT (10 MULTIPLE)

7-43

NUT (10 MULTIPLE)

NUT (10 MULTIPLE)

7-65

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

7-13

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

7-8

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

7-10

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

7-28

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

7-75

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

7-18

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

7-25

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

7-84

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

7-79

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

7-49

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

7-23

CORD ASSY (MF)

CORD ASSY (MF)

7-74

RECTIFIER ASSY

RECTIFIER ASSY

7-83

CORD CLAMP A

CORD CLAMP A

7-33

PROTECTOR (L=320MM)

PROTECTOR (L=320MM)

7-63

WASHER

WASHER

7-64

BRUSH HOLDER ASSY

BRUSH HOLDER ASSY

7-71

RUBBER, STARTER MOTOR

RUBBER, STARTER MOTOR

7-42

SOLENOID SWITCH, DOWN (PINK WIRE)

SOLENOID SWITCH, DOWN (PINK WIRE)

7-39

SOLENOID SWITCH, UP (BLUE WIRE)

SOLENOID SWITCH, UP (BLUE WIRE)

7-54

WASHER

WASHER

7-19

LEAD WIRE BAND 135

LEAD WIRE BAND 135

7-80

TERMINAL CAP

TERMINAL CAP

7-78

BATTERY CABLE (L=2750 MM)

BATTERY CABLE (L=2750 MM)

7-66

BUSHING

BUSHING

7-34

PROTECTOR (L=180MM)

PROTECTOR (L=180MM)

7-50

EARTH CORD

EARTH CORD

7-86

EARTH CORD

EARTH CORD

7-27

PLUG CAP (WITH RESISTANCE)

PLUG CAP (WITH RESISTANCE)

7-82

TERMINAL CAP

TERMINAL CAP

7-48

CAP BATTERY CORD

CAP BATTERY CORD

7-21

WIRE TIE BAND

WIRE TIE BAND

7-22

WIRE TIE BAND

WIRE TIE BAND

7-20

WIRE TIE BAND

WIRE TIE BAND

7-69

BUSHING

BUSHING

7-67

O-RING

O-RING

7-62

PINION ASSY

PINION ASSY

7-3

PULSAR COIL

PULSAR COIL

7-56

STARTER MOTOR ASSY

STARTER MOTOR ASSY

7-70

STARTER MOTOR BAND

STARTER MOTOR BAND

7-46

SOLENOID SWITCH CORD (B) (EFT/EPT)

SOLENOID SWITCH CORD (B) (EFT/EPT)

7-45

SOLENOID SWITCH CORD (A) (EFT/EPT)

SOLENOID SWITCH CORD (A) (EFT/EPT)

7-36

BRACKET

BRACKET

7-35

ELECTRIC BRACKET ASSY

ELECTRIC BRACKET ASSY

7-15

ECU HOLDER

ECU HOLDER

7-16

PLATE

PLATE

7-26

IGNITION COIL W/RES-CAP

IGNITION COIL W/RES-CAP

7-58

BOLT

BOLT

7-2

ALTERNATOR (MF)

ALTERNATOR (MF)

7-9

COIL BRACKET

COIL BRACKET

7-1

FLYWHEEL (MF)

FLYWHEEL (MF)

7-11

CLAMP

CLAMP

7-30

ENGINE TEMP SENSOR

ENGINE TEMP SENSOR

7-52

RUBBER MOUNT

RUBBER MOUNT

7-37

STARTER SOLENOID

STARTER SOLENOID

7-7

WASHER

WASHER

7-29

SWITCH, OIL PRESSURE

SWITCH, OIL PRESSURE

7-60

SPRING WASHER-DISCONTINUED *{/*NO LONGER AVAILABLE*/}*

SPRING WASHER-DISCONTINUED *{/*NO LONGER AVAILABLE*/}*
