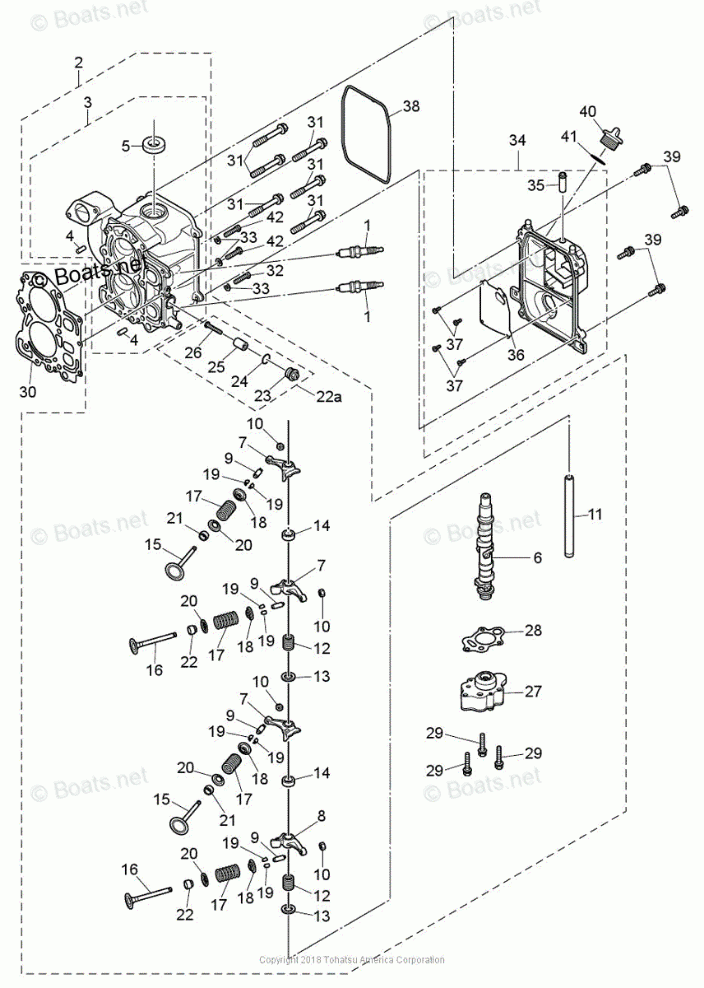

CYLINDER HEAD & OIL PUMP

Tohatsu MFS9.9E (EFI)
Tohatsu
#oem кодцена
3-4
345011110
DOWEL PIN 6-12
3-18
3V1072210
RETAINER
3-17
3RS079030
VALVE SPRING
3-20
3RS079050
VALVE SPRING SEAT
3-11
3RS079200
ROCKER ARM SHAFT
3-8
3RS079350
ROCKER ARM
3-14
3RS079390
COLLAR
3-3
3RSB010010
CYLINDER HEAD
3-34
3RSB010200
CYLINDER HEAD COVER ASSY
3-24
3T5100460
O-RING
3-7
3Y2079350
ROCKER ARM
3-15
3RS079010
INTAKE VALVE
3-32
9101030640
BOLT
3-39
9101E35625
BOLT & WASHER (10 MULTIPLE)
3-29
9101E35635
BOLT & WASHER (10 MULTIPLE)
3-37
9215030406
SCREW (10 MULTIPLE)
3-26
9215030530
SCREW (10 MULTIPLE)
3-33
9401130600
WASHER (10 MULTIPLE)
3-1
970101103
SPARK PLUG, NGK DCPR6E, (SOLD INDIVIDUALLY)
3-22A
3KM011420
ANODE PLUG ASSY
3-16
3RS079020
EXHAUST VALVE
3-6
3RS078100
CAMSHAFT ASSY
3-12
3AA072250
SPRING, ROCKER SHAFT
3-9
3R0072380
SCREW
3-19
3H6072230
COTTER
3-31
3H8010130
BOLT, CYLINDER HEAD
3-35
3H8020930
NIPPLE
3-5
3H8070250
OIL SEAL
3-10
3H8072370
NUT
3-42
3NT023190
BOLT 25MM
3-23
3P0011430
ANODE PLUG
3-25
3P0602180
ANODE
3-41
3R0074220
O-RING
3-36
3RS077310
BREATHER CHAMBER COVER
3-40
3R0710151
FILLER CAP, ENGINE OIL
3-21
3R3072040
SEAL, INT VALVE STEM
3-22
3R3072060
SEAL, EXH VALVE STEM
3-13
3R3072270
WASHER
3-30
3RS010050
CYLINDER HEAD GASKET
3-38
3RS010240
CYLINDER HEAD COVER GASKET
3-27
3RS076000
OIL PUMP ASSY
3-28
3RS076530
OIL PUMP GASKET
3-2
3RTB010000
CYLINDER HEAD
