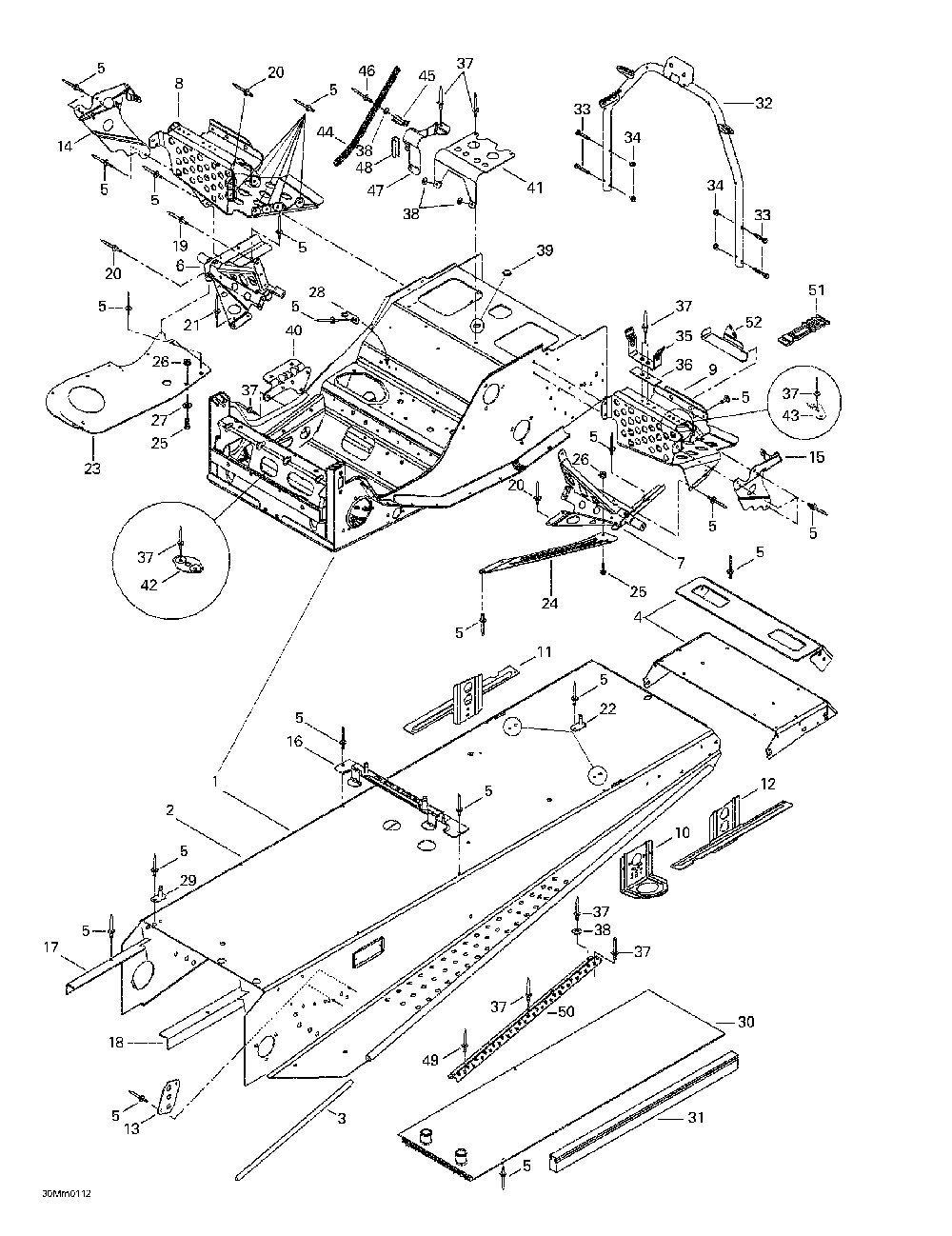

Рама

Ski-Doo (Bombardier) Summit 600/700/800
Ski-Doo (Bombardier)
#oem кодцена
1
518322491
Chassis *frame Includes 1 - 30. Summit 700. Summit 800.
1
518322492
Chassis *frame Includes 1 - 31.
1
518322568
Chassis *frame Includes 1 - 31. Summit 800.
2
518322537
Tunnel Forme *frame-forming Includes 2 - 5.
2
518322536
Tunnel Forme *frame-forming Includes 2 - 6. Summit 700. Summit 800.
2
518323025
Tunnel Forme *frame-forming Summit 800.
3
518304746
Renf.marche-pie*reinf.-foot.
4
518322751
Capuchon Arr. *cap-rear
518322814
Rallonge Tunnel*extention Frame Summit 700. Summit 800.
518321304
Capuchon Arr. *cap-rear Summit 800.
5
390402200
Заклепка 3/16
6
518320506
Support Droit *rh.support
7
518320507
Support Gauche *lh.support
8
518323563
Repose-pied Dr.*rh.footrest
9
518323564
Repose-pied Ga.*lh.footrest
10
518321495
Attache Avant *bracket-front
11
518321502
Attache Susp.dr*brkt-slide Rh
518321965
Attache Susp.dr*brkt-slide Rh Summit 700. Summit 800.
518323280
Attache Susp.dr*slide Bracket Rh Summit 800.
12
518321506
Attache Susp.ga*bracket-slide Lh
518321966
Attache Susp.ga*bracket-slide Lh Summit 700. Summit 800.
518322628
Attache Susp.ga*bracket-slide Lh Summit 800.
13
518201321
Plaque Renfort *plate-reinf.
14
518321305
Renf.rep.-pi.dr*reinf.-footrest Rh
15
518321307
Renf.rep.-pi.ga*reinf.-footrest Lh
16
518321510
Att.reserv.p. *brkt-tank Paint
518322022
Att.reserv.p. *brkt-tank Paint Summit 700. Summit 800.
17
518322395
Renf.tunnel Dr.*reinf-frame Rh Summit 800.
518322812
Renf.tunnel Dr.*reinf-frame Rh
18
518322813
Renf.tunnel Ga.*reinf-frame Lh
518322396
Renf.tunnel Ga.*reinf-frame Lh Summit 800.
19
390909200
Заклепка
20
390909100
Заклепка
21
390402300
Заклепка 3/16
22
518323321
Attache Siege S*seat Bracke Weld
23
518319760
Plaque Coque Dr*plate-pan Bott.rh
24
518322119
Plaque Renf.ga.*plate-reinf.lh
25
207152044
Винт
26
233251414
Гайка
27
391301700
Шайба
28
518322391
Attache Doub.so*bracket Double Weld
29
518321604
Guide Soude *guide-weld.
30
518322413
Radiateur Arr.s*rad.-front Weld. Summit 700. Summit 800.
30
518322354
Radiateur Arr.s*rad.-rear Weld. Includes 30 - 31.
518322905
Radiateur Arr.s*rad.-rear Weld. Summit 800.
31
415012300
Защита
518321656
Protecteur *protector Summit 800.
32
518322755
Supp.guidon Sou*supp-handle Weld.
33
207663544
Винт
34
233261414
Гайка
35
518202100
Attache Gard.co*brkt-guard Belt
36
518207500
Renfort *reinforcement
38
517225900
Шайба
39
414859400
Крышка
40
518322635
Support Silenc.*support-muffler
41
518310400
Supp.silenc.adm*supp-air Intake
42
518201307
Plaque Att.soud*plate-brkt Weld
43
518322031
Attache Trousse*bracket-tool Kit
44
518321569
Направляющая троса
45
518321570
Хомут открывающийся
46
390406500
Заклепка 3/16
47
518322699
Support Boyaux *support-hose
48
271000110
Moul.protect. *trim-protect.
50
518319405
Bande *strip
51
570069700
Loquet *latch
52
518321999
Support Trousse*support-tool Kit
518322357
Renf.tunnel Dr.*reinf-frame Rh
18
518322359
Renf.tunnel Ga.*reinf-frame Lh
47
518319762
Support Boyaux *support-hose
