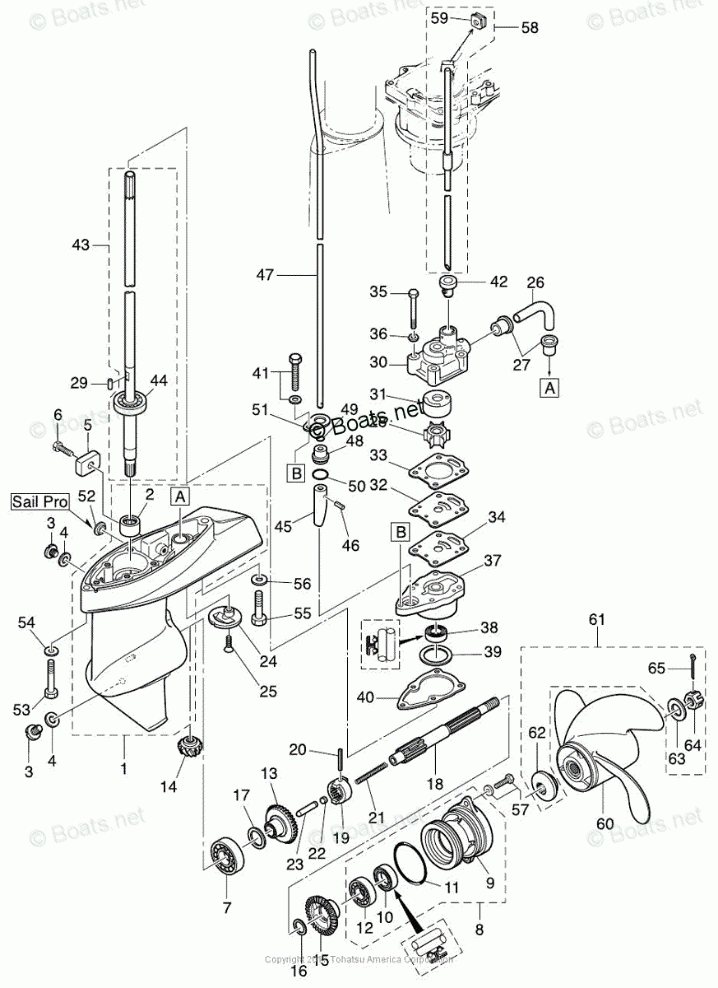

КАРТЕР КОРОБКИ ПЕРЕДАЧ
КАРТЕР КОРОБКИ ПЕРЕДАЧ

КАРТЕР КОРОБКИ ПЕРЕДАЧ

Tohatsu MFS4C

КАРТЕР КОРОБКИ ПЕРЕДАЧ

#

oem код

название

цена

8-19

CLUTCH

CLUTCH

8-60

PROP 4/5/6HP, 8.375 DIA X 6 PITCH (ELEPHANT EAR)

PROP 4/5/6HP, 8.375 DIA X 6 PITCH (ELEPHANT EAR)

8-45

CLUTCH CAM

CLUTCH CAM

8-15

BEVEL GEAR (C)

BEVEL GEAR (C)

8-14

BEVEL GEAR (B)

BEVEL GEAR (B)

8-13

BEVEL GEAR (A)

BEVEL GEAR (A)

8-52

GROMMET

GROMMET

8-62

THRUST HOLDER, PROPELLER

THRUST HOLDER, PROPELLER

8-60

PROP 4/5/6HP (7.9 DIA. x 6 PITCH)

PROP 4/5/6HP (7.9 DIA. x 6 PITCH)

8-61

PROP HDWR KIT 4C/5B/F4/5/6A2 B

PROP HDWR KIT 4C/5B/F4/5/6A2 B

8-21

CLUTCH SPRING

CLUTCH SPRING

8-8

PROP SHAFT HOUSING ASSY (AMB)

PROP SHAFT HOUSING ASSY (AMB)

8-9

PROP SHAFT HOUSING (AMB)

PROP SHAFT HOUSING (AMB)

8-1

GEAR CASE (AMB)

GEAR CASE (AMB)

8-60

PROP 4/5/6HP (7.9 DIA. x 9 PITCH)

PROP 4/5/6HP (7.9 DIA. x 9 PITCH)

8-51

STOPPER

STOPPER

8-5

ANODE, ZINC (SQUARE)

ANODE, ZINC (SQUARE)

8-60

PROP 4/5/6HP (7.7 DIA. x 7 PITCH)

PROP 4/5/6HP (7.7 DIA. x 7 PITCH)

8-49

O-RING A

O-RING A

8-36

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

8-7

BEARING

BEARING

8-12

BEARING

BEARING

8-65

SPLIT PIN (10 MULTIPLE)

SPLIT PIN (10 MULTIPLE)

8-46

SPRING PIN (10 MULTIPLE)

SPRING PIN (10 MULTIPLE)

8-54

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

8-56

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

8-25

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

8-60

PROP 4/5/6HP (7.7 DIA. x 8 PITCH)

PROP 4/5/6HP (7.7 DIA. x 8 PITCH)

8-55

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

8-35

BOLT

BOLT

8-53

BOLT

BOLT

8-41

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

8-57

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

8-6

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

8-48

BUSHING

BUSHING

8-47

CAM ROD L

CAM ROD L

8-20

PIN CLUTCH

PIN CLUTCH

8-38

OIL SEAL

OIL SEAL

8-18

PROPELLER SHAFT (12 SPLINE)

PROPELLER SHAFT (12 SPLINE)

8-63

WASHER, PROP NUT

WASHER, PROP NUT

8-64

PROP NUT

PROP NUT

8-16

WASHER,BEVEL GEAR C

WASHER,BEVEL GEAR C

8-39

SHIM KIT

SHIM KIT

8-17

SHIM KIT

SHIM KIT

8-2

BEARING

BEARING

8-23

PUSH ROD

PUSH ROD

8-24

SUB WATER STRAINER

SUB WATER STRAINER

8-10

OIL SEAL, PROPELLER SHAFT

OIL SEAL, PROPELLER SHAFT

8-11

O-RING

O-RING

8-50

O-RING

O-RING

8-4

GASKET (10 MULTIPLE)

GASKET (10 MULTIPLE)

8-3

OIL PLUG (8 X 1.25)

OIL PLUG (8 X 1.25)

8-22

SPRING HOLDER

SPRING HOLDER

8-43

DRIVE SHAFT S

DRIVE SHAFT S

8-47

CAM ROD S

CAM ROD S

8-32

GUIDE PLATE

GUIDE PLATE

8-59

WATER TUBE GROMMET

WATER TUBE GROMMET

8-58

WATER PIPE L

WATER PIPE L

8-58

WATER PIPE S

WATER PIPE S

8-27

SEAL RUBBER

SEAL RUBBER

8-26

WATER PIPE LOWER

WATER PIPE LOWER

8-34

GASKET, PUMP GUIDE PLATE

GASKET, PUMP GUIDE PLATE

8-29

KEY

KEY

8-43

DRIVE SHAFT L

DRIVE SHAFT L

8-28

IMPELLER NS3.5B/NS5B/4-6HP 4STR

IMPELLER NS3.5B/NS5B/4-6HP 4STR

8-40

GASKET, WATER PUMP CASE LOWER

GASKET, WATER PUMP CASE LOWER

8-33

GASKET, WATER PUMP CASE

GASKET, WATER PUMP CASE

8-37

PUMP CASE, LOWER

PUMP CASE, LOWER

8-30

PUMP CASE, UPPER

PUMP CASE, UPPER

8-42

SEAL RUBBER LOWER

SEAL RUBBER LOWER

8-31

LINER, WATER PUMP CASE

LINER, WATER PUMP CASE

8-44

BEARING

BEARING
