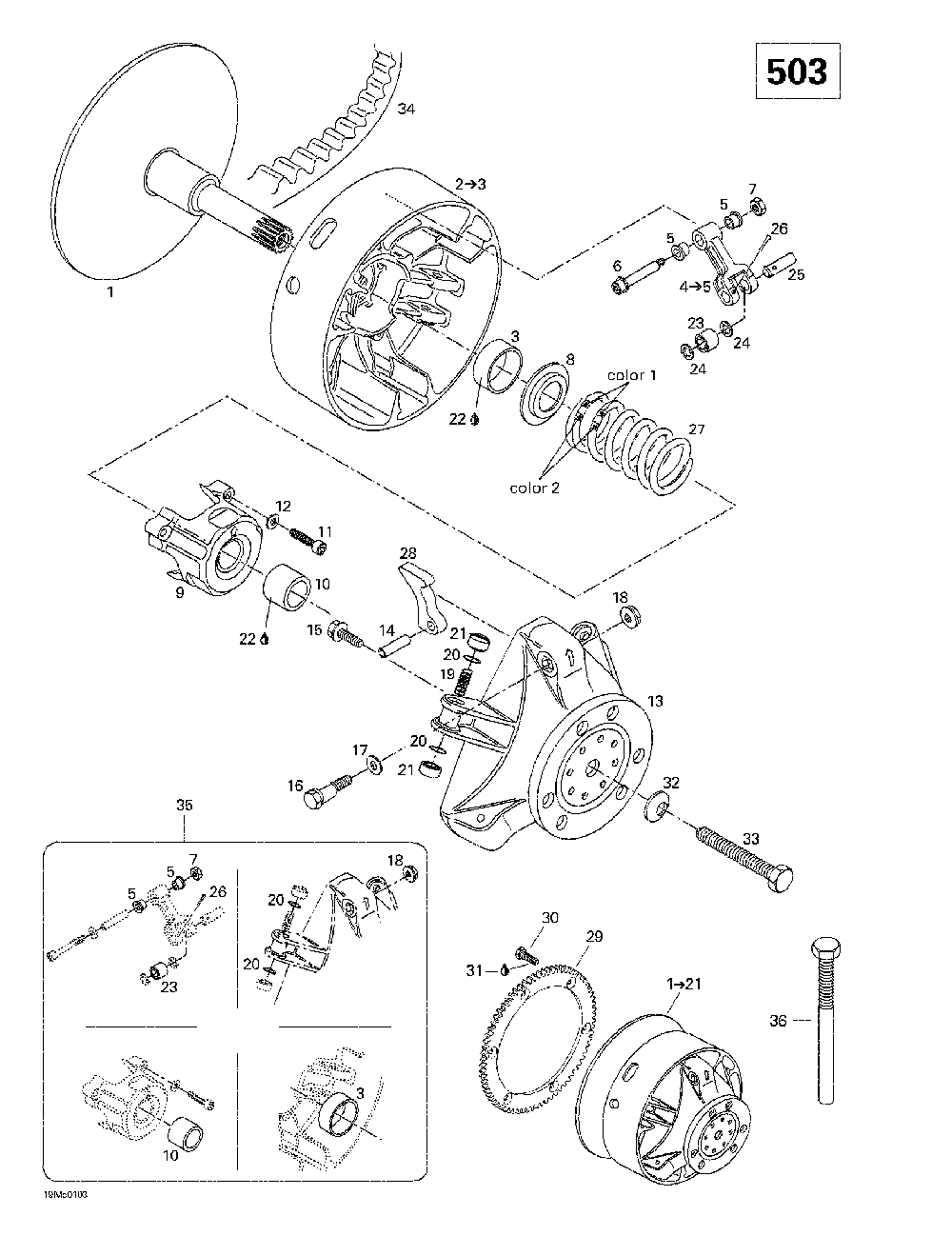

05- drive pulley (503)

Ski-Doo (Bombardier) Touring 380 F/500F
Ski-Doo (Bombardier)
#oem кодцена
1
417222368
Poulie Motrice *pulley-drive Includes 1 - 21. Touring 500 F.
1
417222412
Flasque Fixe Us*flange-fix.mac Touring 500 F.
2
417222241
Flasque Coul.as*flange-slid.as Includes 2 - 3. Touring 500 F.
3
417004201
Douille *bushing Touring 500 F.
4
417222383
Levier Ass. *lever-assy Includes 4 - 5. Touring 500 F.
5
417004305
Douille *bushing Touring 500 F.
6
417004800
Vis Assemble *screw-ass Y Touring 500 F.
7
232561414
Nut-stop Elastic Din.985 Touring 500 F.
8
417222044
Siege Ressort *seat-spring Touring 500 F.
9
417222304
Couvercle *spring Cover Includes 9 - 10. Touring 500 F.
10
417004501
Douille *bushing Touring 500 F.
11
205064086
Screw-socket Hd.din.912 Gm6174m Touring 500 F.
12
420245370
Rondelle *washer Touring 500 F.
13
417222081
Cuvette Regul.a*govern.cup Assy. Touring 500 F.
14
732804009
Pin-rolled Din.1481 M8 X 24 Touring 500 F.
15
210361890
Screw-forming Hex.hd.black Oxide Touring 500 F.
16
417005500
Vis Calibration*screw-calib. Touring 500 F.
17
417005600
Rondelle *washer Touring 500 F.
18
233061414
Nut-flange Hexagonal Din.6927 Touring 500 F.
19
417005700
Ressort *spring Touring 500 F.
20
732401030
Joint Torique *o-ring Touring 500 F.
21
417223021
Glissiere *shoe-slider Touring 500 F.
22
413703100
Loctite 609 *loctite-609 Touring 500 F.
23
417222947
Rouleau Ass. *roller-ass. Touring 500 F.
24
417004302
Rondelle Butee *washer-stopper Touring 500 F.
25
417004309
Goupille *pin Touring 500 F.
26
732958001
Goupille Fendue*pin-cotter Touring 500 F.
27
414689800
Ressort Embra. *spring-clutch Touring 500 F.
28
417005292X
Rampe 292x *ramp-292x Touring 500 F.
29
417009400
Cour.lancement *gear-ring 86th Touring 500 F.
30
236281684
Screw-forming Bn.hd.torx Touring 500 F.
31
293800005
Loctite 271 *loctite-271 Touring 500 F.
33
417113800
Boulon *bolt-pulley Drive Touring 500 F.
34
415060600
Courroie *belt-drive Touring 500 F.
35
417006100
Ens.rep.emb. *kit-clutch Rep Touring 500 F.
36
529007900
Extrac.poulie *puller-drive Touring 500 F.
