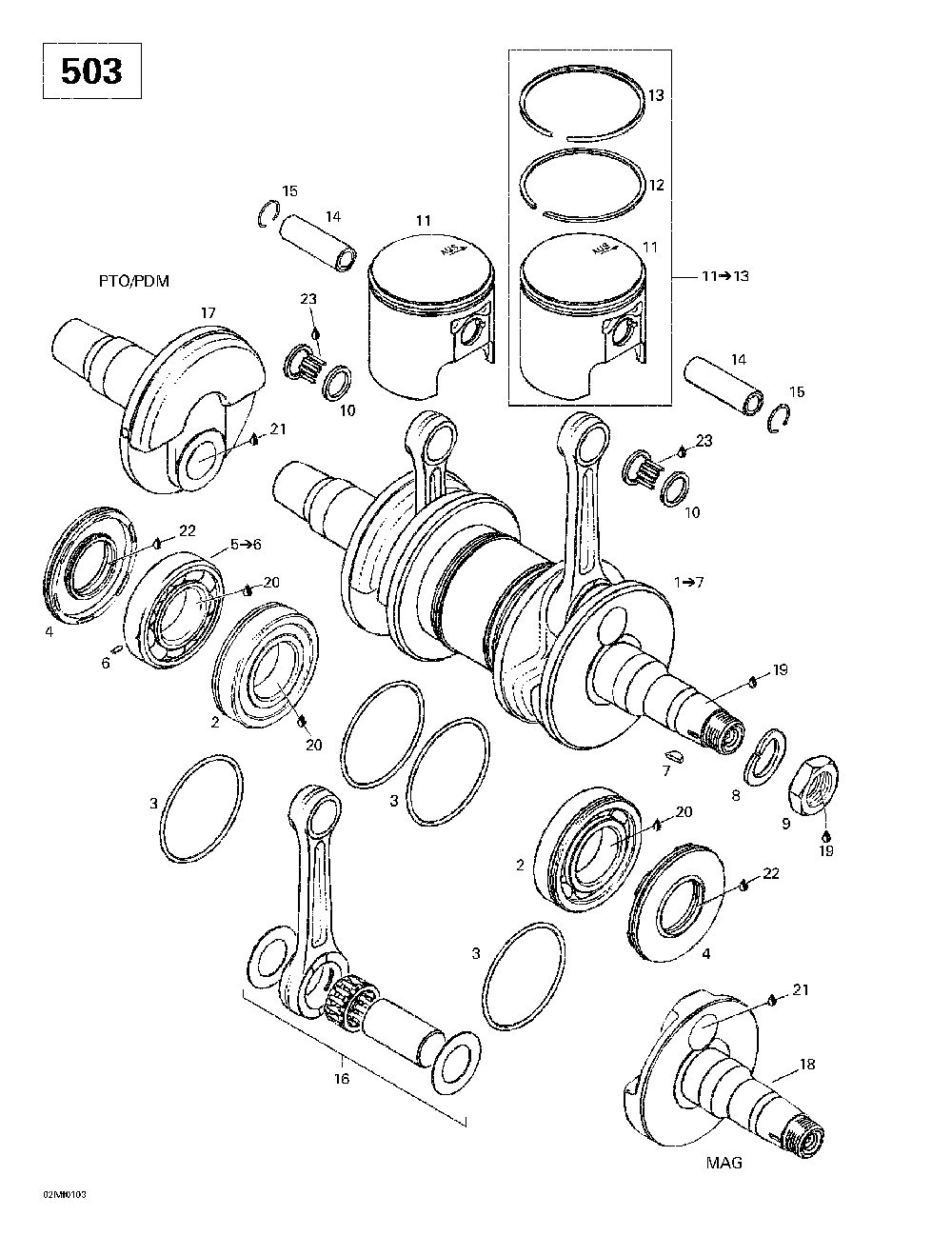

01- crankshaft (503)

Ski-Doo (Bombardier) Touring 380 F/500F
Ski-Doo (Bombardier)
#oem кодцена
1
420888391
Vilebrequin *crankshaft Includes 1 - 7. Touring 500 F.
2
420832570
Roulement Bille*ball Bearing Touring 500 F.
3
293300022
Joint Torique *o-ring Touring 500 F.
4
420831952
Anneau Etanche *seal-oil Touring 500 F.
5
420832574
Roulement Bille*ball Bearing Includes 5 - 6. Touring 500 F.
6
420929972
Goupille Ressor*pin-roll Touring 500 F.
7
420246055
Clavette *key-woodruff Touring 500 F.
8
420945759
Rondelle-frein *washer-lock 22 Touring 500 F.
9
420842234
Nut-hex.m22 X 1, 5 Touring 500 F.
10
420832320
Roul.aiguille *needle Bearing Touring 500 F.
11
420890070
Piston 71.91 *piston 71.91 Includes 11 - 13. Touring 500 F.
420890071
Piston 72.16 *piston 72.16 Touring 500 F.
420890072
Piston 72.41 *piston 72.41 Touring 500 F.
12
420915850
Segment R 72.0 *ring-r 72.0 Touring 500 F.
420915851
Segment R 72.25*ring-r 72.25 Touring 500 F.
420915852
Segment R 72.5 *ring-r 72.5 Touring 500 F.
420815201
Segment L 72.25*ring-l 72.25 Touring 500 F.
420815202
Segment L 72.50*ring-l 72.50 Touring 500 F.
14
420916186
Axe De Piston *pin-gudgeon Touring 500 F.
15
420945735
Circlip Piston *circlip-piston Touring 500 F.
16
420888394
Ens.tige Rep. *kit-rod Repair Touring 500 F.
17
420818244
Demi-vileb.pto *half-crank Pto Touring 500 F.
18
420819020
Demi-vileb.mag.*half-crank Mag Touring 500 F.
19
293800060
Loctite 243 *loctite-243 Touring 500 F.
21
413711400
Loctite 648 *loctite-648 Touring 500 F.
22
413707000
Dow Corning 111*dow Corning 111 Touring 500 F.
23
413802900
Huile 2t 12x1 Minr* Oil 2t 12x1 Mineral Touring 500 F.
1
421000155
Vilebreq.refait*crank-rebuild 503 97 Includes 1 - 7. Touring 500 F.
13
420815200
Segment L 72.0 *ring-l 72.0 Touring 500 F.
