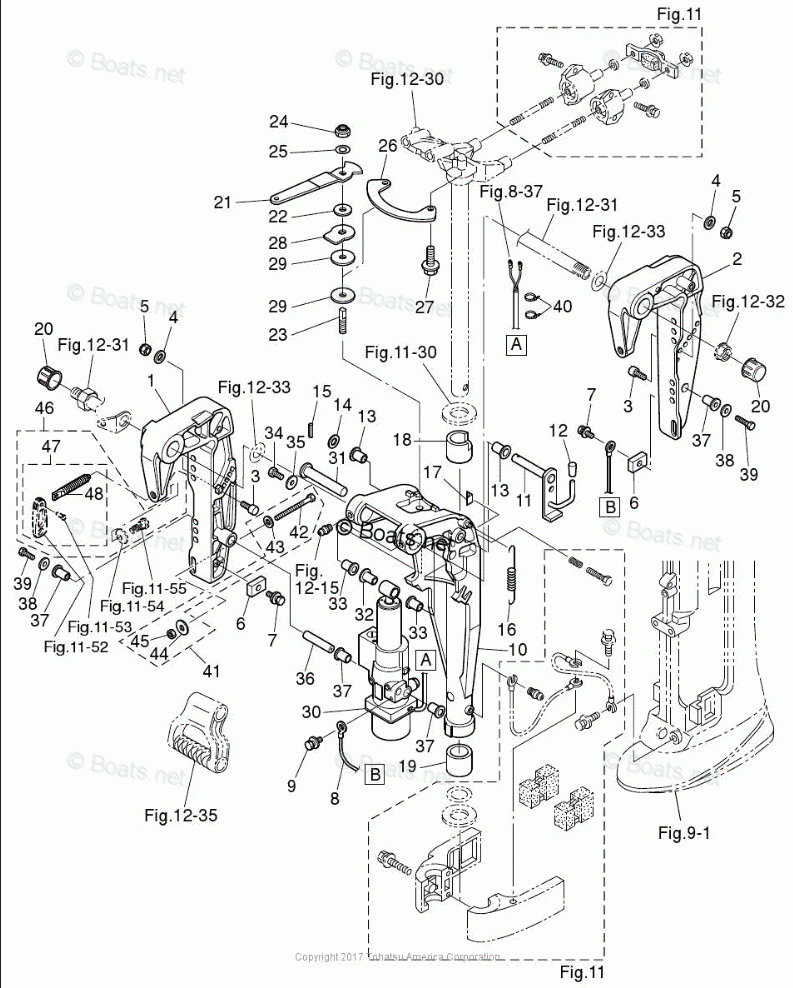

BRACKET (EFT & EPT MODEL)

Tohatsu MFS8B
Tohatsu
#oem кодцена
13-38
307621161
WASHER
13-34
9101030612
BOLT (10 MULTIPLE)
13-17
3Z0630350
FRICTION PIECE
13-32
3Z0770760
BUSHING, 13-16-31
13-37
3Z0770760
BUSHING, 13-16-31
13-36
3Z0771011
CYLINDER PIN (LOWER)
13-3
3Z0771150
TRIM LOCK PIN
13-40
3Z0843980
BAND LEAD WIRE 203-LOCAL PURCHASE
13-30
3Z0Q771511
POWER TRIM TILT ASSY. (F8A3/9.8A3)
13-1
3Z0Q772112
CLAMP BRACKET, (PTT-RIGHT) STARBOARD
13-2
3Z0Q772120
CLAMP BRACKET, (PTT-LEFT) PORT
13-39
9101030820
BOLT
13-18
3Z0624170
BUSHING, 24-30-30
13-9
9101E35612
BOLT WASHER (10 MULTIPLE)
13-27
9101E35616
BOLT WASHER (10 MULTIPLE)
13-7
9101E35616
BOLT WASHER (10 MULTIPLE)
13-42
9161E30885
BOLT
13-24
9304030800
NYLON NUT (10 MULTIPLE)
13-45
9304030800
NYLON NUT (10 MULTIPLE)
13-25
9401030800
WASHER (10 MULTIPLE)
13-43
9401030800
WASHER (10 MULTIPLE)
13-14
9401E31000
WASHER (10 MULTIPLE)
13-11
3Z0624761
TILT STOPPER
13-44
3Z0613340
WASHER, 8.5-34-3
13-35
345051221
WASHER, RACHET
13-47
3E3Q621080
CLAMP SCREW ASSY
13-20
346621270
BRACKET CAP
13-19
350624170
BUSHING
13-13
353632070
COLLAR
13-12
369624331
GRIP
13-8
398623961
GROUND WIRE
13-21
3AA624410
HANDLE, CO-PILOT
13-26
3AA624470
PLATE
13-48
3E3621060
CLAMP SCREW
13-46
3E3Q621050
CLAMP SCREW KIT
13-6
3H6602180
ANODE, ZINC (SQUARE)
13-5
3V5624420
NYLON NUT, CO-PILOT (8MM)
13-31
3KY770710
CYLINDER PIN (UPPER)
13-4
3P0662330
WASHER (10 MULTIPLE)
13-16
3R0624730
SPRING, TILT STOPPER
13-33
3R0770760
BUSHING, 13-17-19.5
13-22
3R3624430
WASHER
13-23
3R3624450
BOLT, CO-PILOT
13-28
3R3624481
WASHER, CO-PILOT
13-29
3R3624490
DISK, CO-PILOT
13-10
3V1Q772080
SWIVEL BRACKET (PTT)
13-41
3V2721200
RIGGING BOLT SET EFT/EPT
13-15
9514033516
SPRING PIN (10 MULTIPLE)
