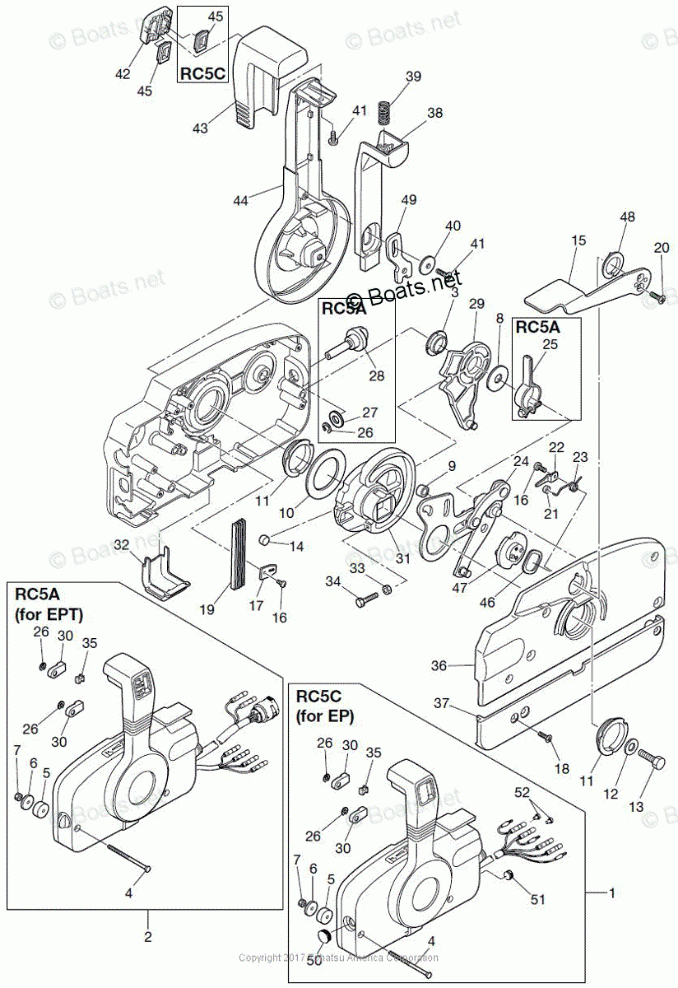

COMPONENT PARTS OF REMOTE CONTROL
COMPONENT PARTS OF REMOTE CONTROL

COMPONENT PARTS OF REMOTE CONTROL

Tohatsu MFS8B

COMPONENT PARTS OF REMOTE CONTROL

#

oem код

название

цена

21-6

WASHER

WASHER

21-44

CONTROL LEVER (AMB)

CONTROL LEVER (AMB)

21-25

ARM

ARM

21-32

WIRE COVER

WIRE COVER

21-11

BUSHING A

BUSHING A

21-3

BUSHING B

BUSHING B

21-48

BUSHING

BUSHING

21-13

BOLT

BOLT

21-42

FINISHER, TILT

FINISHER, TILT

21-45

PLUG, TILT SWITCH

PLUG, TILT SWITCH

21-2

R C BOX (RC5A) MFS8-30C, M40D2-90A W/PTT/ELECTRIC START

R C BOX (RC5A) MFS8-30C, M40D2-90A W/PTT/ELECTRIC START

21-15

FREE THROTTLE LEVER

FREE THROTTLE LEVER

21-37

REAR PANEL

REAR PANEL

21-22

RETAINER

RETAINER

21-36

REAR HOUSING

REAR HOUSING

21-52

PLUG ,CABLE TERMINAL

PLUG ,CABLE TERMINAL

21-34

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

21-16

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

21-41

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

21-20

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

21-18

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

21-33

NUT (10 MULTIPLE)

NUT (10 MULTIPLE)

21-7

NUT (10 MULTIPLE)

NUT (10 MULTIPLE)

21-12

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

21-28

SCREW, FRICTION

SCREW, FRICTION

21-23

SPRING, FREE ACCELERATOR

SPRING, FREE ACCELERATOR

21-14

ROLLER, THROTTLE DRUM

ROLLER, THROTTLE DRUM

21-35

GROMMET

GROMMET

21-27

WASHER

WASHER

21-50

GROMMET A

GROMMET A

21-51

GROMMET B

GROMMET B

21-30

TERMINAL EYE

TERMINAL EYE

21-19

SPRING

SPRING

21-31

DRIVE GEAR

DRIVE GEAR

21-24

THROTTLE ARM

THROTTLE ARM

21-46

WAVE WASHER

WAVE WASHER

21-5

SPACER

SPACER

21-4

SCREW

SCREW

21-29

SHIFT GEAR ASSY

SHIFT GEAR ASSY

21-21

ROLLER, FREE ACCELERATOR

ROLLER, FREE ACCELERATOR

21-8

WASHER

WASHER

21-47

DRUM, FREE ACCELERATOR

DRUM, FREE ACCELERATOR

21-38

ARM, NEUTRAL LOCK

ARM, NEUTRAL LOCK

21-39

SPRING

SPRING

21-43

GRIP

GRIP

21-49

PLATE, LOCK ARM

PLATE, LOCK ARM

21-40

WASHER, LOCK ARM

WASHER, LOCK ARM

21-9

ROLLER

ROLLER

21-10

THRUST PLATE

THRUST PLATE

21-17

RETAINER

RETAINER

21-26

E-RING (10 MULTIPLE)

E-RING (10 MULTIPLE)
