CYLINDER & CRANK CASE Каталог оригинальных запчастей для лодочных моторов Tohatsu MFS8B (2017)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Tohatsu
2017
MFS8B

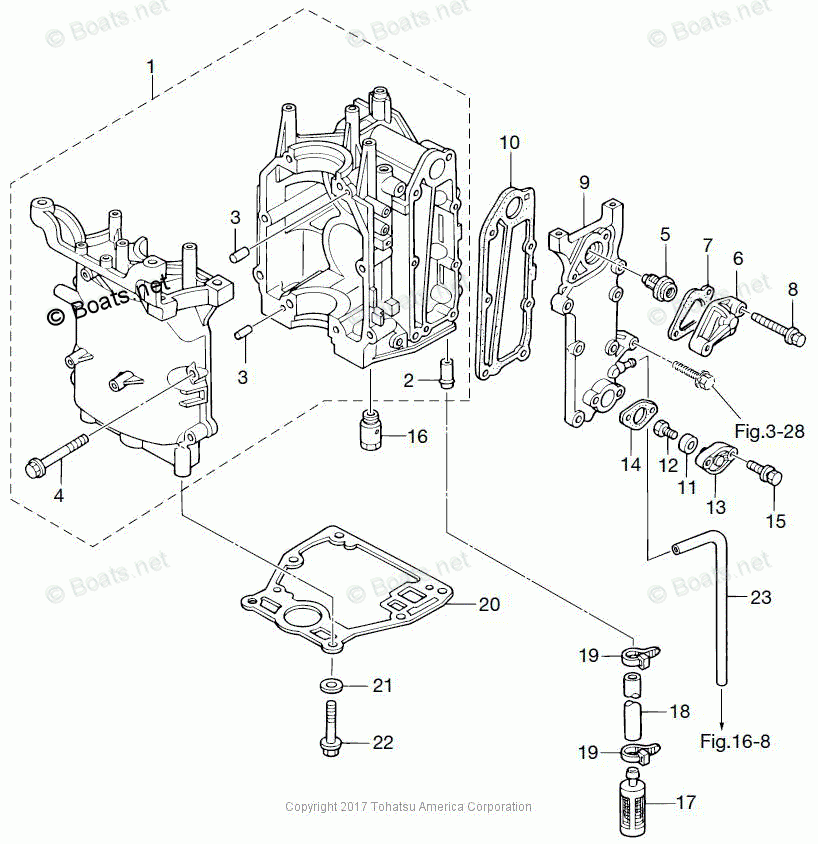

CYLINDER & CRANK CASE
CYLINDER & CRANK CASE

CYLINDER & CRANK CASE

Tohatsu MFS8B

CYLINDER & CRANK CASE

#

oem код

название

цена

1-3

DOWEL PIN 6-12

DOWEL PIN 6-12

1-10

GASKET, EXHAUST COVER

GASKET, EXHAUST COVER

1-23

FUEL PIPE 5MM (3/16) (1 EA.=1 METER)

FUEL PIPE 5MM (3/16) (1 EA.=1 METER)

1-21

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

1-8

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

1-15

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

1-12

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

1-16

PLUNGER

PLUNGER

1-9

EXHAUST COVER

EXHAUST COVER

1-1

CYLINDER CRANK CASE

CYLINDER CRANK CASE

1-17

OIL STRAINER

OIL STRAINER

1-20

GASKET, ENGINE BASE

GASKET, ENGINE BASE

1-7

GASKET, THERMOSTAT

GASKET, THERMOSTAT

1-14

GASKET

GASKET

1-5

THERMOSTAT (60 DEGREES CELCIUS)

THERMOSTAT (60 DEGREES CELCIUS)

1-13

CAP, ANODE

CAP, ANODE

1-2

NIPPLE

NIPPLE

1-4

BOLT

BOLT

1-6

CAP, THERMOSTAT

CAP, THERMOSTAT

1-22

BOLT

BOLT

1-19

WIRE TIE BAND

WIRE TIE BAND

1-11

ANODE, ZINC (ROUND)

ANODE, ZINC (ROUND)

1-18

HOSE

HOSE
