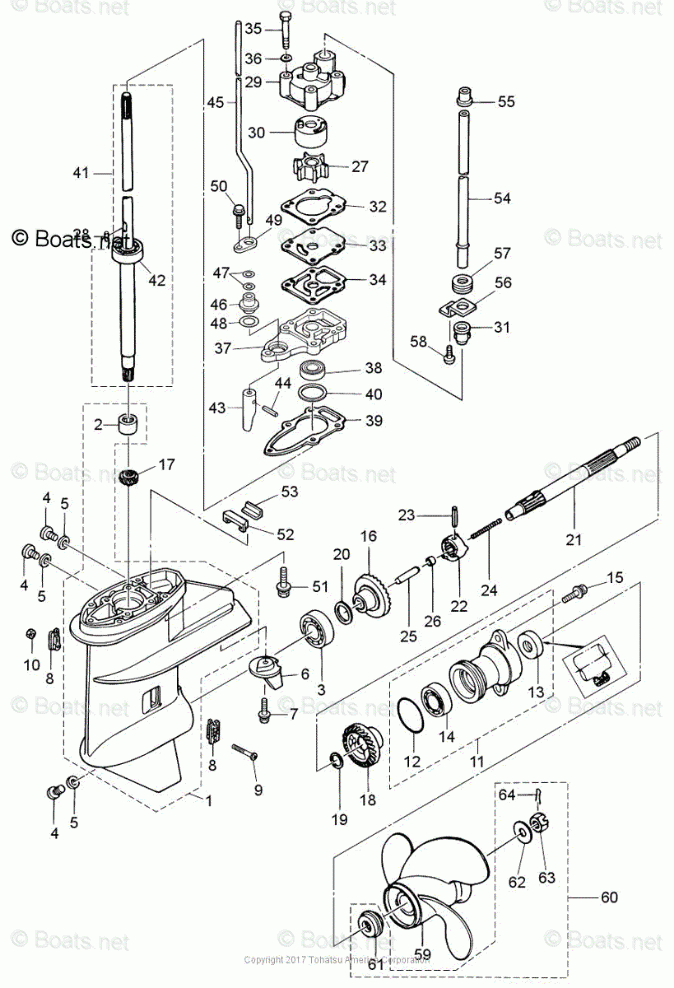

КАРТЕР КОРОБКИ ПЕРЕДАЧ

Tohatsu MFS9.8B
Tohatsu
#oem кодцена
10-23
301642170
PIN CLUTCH
10-41
3V1643061
DRIVE SHAFT S
10-54
3V1651200
WATER PIPE UL
10-54
3V1651100
WATER PIPE L
10-54
3V1651000
WATER PIPE S
10-37
3V1650170
PUMP CASE LOWER
10-41
3V1643091
DRIVE SHAFT UL
10-41
3V1643071
DRIVE SHAFT L
10-24
3V1642210
SPRING, CLUTCH
10-57
3V1652040
RUBBER MOUNT
10-21
3V1642111
PROPELLER SHAFT (12 SPLINE)
10-6
3V1602170
TRIM TAB
10-2
3V1602110
NEEDLE BEARING
10-53
3V1600420
WATER SEAL PLATE
10-52
3V1600410
WATER SEAL RUBBER
10-60
3UA873260
PROP HDWR KIT , F8B2/9.8B
10-61
3UA642310
THRUST HOLDER (F8-9.8B)
10-56
3V1652030
LOCK PLATE
10-55
3V1652060
SEAL UPPER, WATER PIPE
10-59
3B2B645191
PROP 8 9.8 HP (8.5 DIA X 9.5 PITCH)-NO LONGER AVAILABLE
10-58
9215030510
SCREW (10 MULTIPLE)
10-3
960106204
BEARING
10-14
960106004
BEARING
10-64
9515030318
SPLIT PIN (10 MULTIPLE)
10-44
9514070310
SPRING PIN (10 MULTIPLE)
10-36
9401130600
WASHER (10 MULTIPLE)
10-10
9304030400
NYLON NUT (10 MULTIPLE)
10-9
9215030430
SCREW (10 MULTIPLE)
10-45
3V1660120
CAM ROD S
10-35
9161E30650
BOLT
10-50
9101E35625
BOLT WASHER (10 MULTIPLE)
10-7
9101E35620
BOLT WASHER (10 MULTIPLE)
10-15
9101E35620
BOLT WASHER (10 MULTIPLE)
10-51
3V2600010
BOLT, 6-35 PRECOATED
10-45
3V1660140
CAM ROD UL
10-45
3V1660130
CAM ROD L
10-11
3B2Q601001
PROP SHAFT HOUSING ASSY.
10-59
3B2B645170
PROP 8 9.8 HP (8.5 DIA X 9.0 PITCH), BLACK
10-38
309601110
OIL SEAL
10-63
369641210
PROP NUT
10-8
3AA602060
WATER STRAINER
10-49
369660330
STOPPER
10-47
369660211
O-RING A
10-43
369660110
CLUTCH CAM
10-25
369642230
PUSH ROD
10-62
369641240
WASHER, PROP NUT
10-19
369640320
WASHER,BEVEL GEAR C
10-16
3B2640100
BEVEL GEAR A (FORWARD)
10-20
369640120
SHIM KIT
10-13
369601110
OIL SEAL, PROPELLER SHAFT
10-12
345650150
O-RING
10-48
332660320
O-RING
10-5
332600060
GASKET (10 MULTIPLE)
10-4
332600052
OIL PLUG (8 X 1.25)
10-31
331650140
GROMMET, WATER PIPE 8/9.8
10-1
3AAQ600000
GEAR CASE ASSY (AMB)
10-17
3B2640200
BEVEL GEAR B (PINION)
10-59
3B2B645151
PROP 8 9.8 HP (8.5 DIA. X 8.0 PITCH)
10-28
3B2650220
KEY
10-59
3B2B645140
PROP 8 9.8 HP (8.9 DIA X 7 PITCH), BLACK
10-59
3B2B645131
PROP 8 9.8 HP (8.5 DIA X 6.5 PITCH)-NLA
10-59
3B2B645120
PROP 8 9.8 HP (8.7 DIA X 7 PITCH)-4 BLADE (HIGH THRUST) BLACK
10-59
3B2B645110
PROP 8 9.8 HP (8.7 DIA X 5 PITCH)-4 BLADE (HIGH THRUST), BLACK
10-34
3B2650292
GASKET
10-33
3B2650250
GUIDE PLATE
10-27
3B2650211
IMPELLER (8/9.8)
10-40
3B2640230
GAP LINER KIT
10-39
3B2650201
GASKET, WATER PUMP CASE LOWER
10-32
3B2650182
GASKET
10-29
3B2650160
PUMP CASE UPPER
10-30
3B2650110
LINER PUMP CASE
10-26
3B2642220
SPRING HOLDER
10-22
3B2642150
CLUTCH
10-18
3B2640300
BEVEL GEAR C (REVERSE)
10-42
960106301
BEARING
