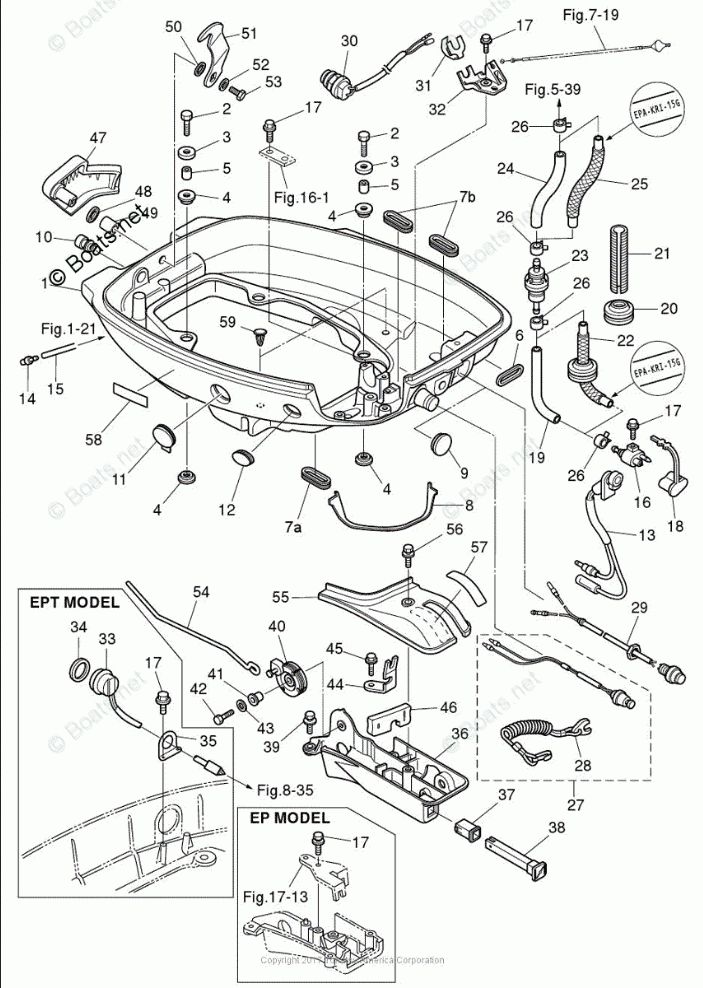

BOTTOM COWL

Tohatsu MFS15D

BOTTOM COWL

#

oem код

название

цена

15-48

SEAL RING

SEAL RING

15-47

HOOK LEVER

HOOK LEVER

15-36

BRACKET, SHIFT LEVER

BRACKET, SHIFT LEVER

15-38

CHOKE KNOB

CHOKE KNOB

15-37

BUSHING

BUSHING

15-34

GASKET, PTT SWITCH NS70B, D40/50B2

GASKET, PTT SWITCH NS70B, D40/50B2

15-26

CLIP, @ 9.4

CLIP, @ 9.4

15-58

LABEL, STORAGE

LABEL, STORAGE

15-18

PROTECTOR, FUEL CONN

PROTECTOR, FUEL CONN

15-30

NEUTRAL SWITCH

NEUTRAL SWITCH

15-52

WASHER, 6-16-1.5

WASHER, 6-16-1.5

15-43

WASHER, 6-16-1.5

WASHER, 6-16-1.5

15-6

GROMMET, BATTERY CORD

GROMMET, BATTERY CORD

15-13

PILOT LAMP ASSY

PILOT LAMP ASSY

15-51

COVER, HOOK

COVER, HOOK

15-21

FUEL HOSE PROTECTOR

FUEL HOSE PROTECTOR

15-59

PLASTIC RIVET

PLASTIC RIVET

15-10

PLUG ,CABLE TERMINAL

PLUG ,CABLE TERMINAL

15-57

SHIFT DECAL (F-N-R)

SHIFT DECAL (F-N-R)

15-53

PRE-COATED BOLT 6-12

PRE-COATED BOLT 6-12

15-42

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

15-2

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

15-17

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

15-39

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

15-45

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

15-50

WAVE WASHER (10 MULTIPLE)

WAVE WASHER (10 MULTIPLE)

15-24

FUEL PIPE 5MM (3/16) (1 EA.=1 METER)

FUEL PIPE 5MM (3/16) (1 EA.=1 METER)

15-15

FUEL PIPE 5MM (3/16) (1 EA.=1 METER)

FUEL PIPE 5MM (3/16) (1 EA.=1 METER)

15-32

BRACKET, NEUTRAL SWITCH

BRACKET, NEUTRAL SWITCH

15-56

BOLT, 5-35 (WITH WASHER)

BOLT, 5-35 (WITH WASHER)

15-9

GROMMET

GROMMET

15-14

WATER NIPPLE

WATER NIPPLE

15-20

GROMMET

GROMMET

15-4

MOUNT RUBBER

MOUNT RUBBER

15-5

SPACER

SPACER

15-49

BUSHING, HOOK LEVER

BUSHING, HOOK LEVER

15-28

SAFETY LANYARD LOCK

SAFETY LANYARD LOCK

15-23

FUEL FILTER

FUEL FILTER

15-16

FUEL CONN, ENGINE SIDE, MALE, 4 STROKE, 4-50

FUEL CONN, ENGINE SIDE, MALE, 4 STROKE, 4-50

15-27

STOP SWITCH ASSY W/LANYARD

STOP SWITCH ASSY W/LANYARD

15-31

ACTUATOR, NEUTRAL SWITCH

ACTUATOR, NEUTRAL SWITCH

15-29

MAIN SWITCH

MAIN SWITCH

15-33

PTT SWITCH

PTT SWITCH

15-35

BRACKET, PTT SWITCH

BRACKET, PTT SWITCH

15-22

HOSE, LOW PERMEATION

HOSE, LOW PERMEATION

15-8

SEAL, SHIFT LEVER BRACKET

SEAL, SHIFT LEVER BRACKET

15-54

THROTTLE ROD

THROTTLE ROD

15-12

GROMMET

GROMMET

15-11

GROMMET

GROMMET

15-1

BOTTOM COWL, F15C/F20C

BOTTOM COWL, F15C/F20C

15-25

HOSE, LOW PERMEATION

HOSE, LOW PERMEATION

15-40

THROTTLE DRUM ASSY

THROTTLE DRUM ASSY

15-41

COLLAR, 6.1-14-8.9

COLLAR, 6.1-14-8.9

15-44

BRACKET, THROTTLE WIRE

BRACKET, THROTTLE WIRE

15-7A

GROMMET, SHIFT ROD

GROMMET, SHIFT ROD

15-7B

GROMMET, SHIFT ROD

GROMMET, SHIFT ROD

15-46

GROMMET, SHIFT LEVER ROD

GROMMET, SHIFT LEVER ROD

15-3

RUBBER MOUNT WASHER

RUBBER MOUNT WASHER

15-55

COVER, SHIFT LEVER ROD

COVER, SHIFT LEVER ROD

15-19

FUEL PIPE 5MM (3/16) (1 EA.=1 METER)

FUEL PIPE 5MM (3/16) (1 EA.=1 METER)
