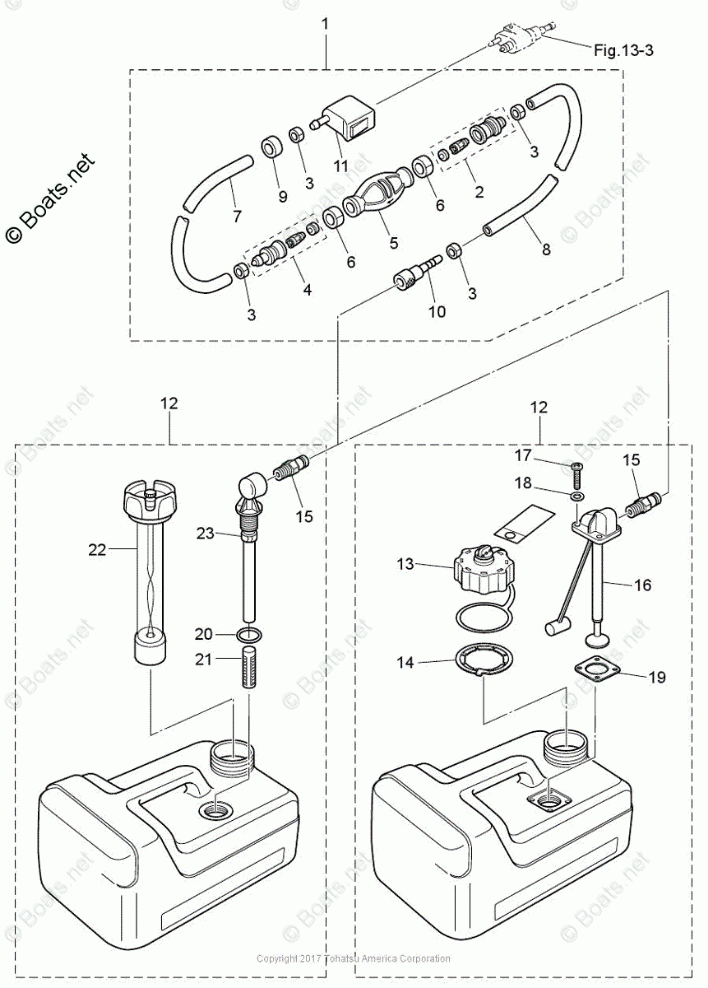

ТОПЛИВНЫЙ БАК

Tohatsu MFS15E (EFI)
Tohatsu
#oem кодцена
16-3
332702010
CLAMP
16-4
3C7702241
JOINT A ASSY, OUTER
16-7
98AB701000
FUEL PIPE 7MM (5/16) (1 EA.=1 METER)
16-8
98AB701000
FUEL PIPE 7MM (5/16) (1 EA.=1 METER)
16-12
3V1701671
FUEL TANK 12L (3.1 GAL) EPA CAP (TOHATSU)
16-16
3V1701570
FUEL PICK-UP ASSY W/GAUGE, 3 GAL.(EPA)
16-1
3H6702002
PRIMER BULB ASSY (4-STROKE - 4-50hp)
16-9
3GR702800
FUEL CONNECTOR MARK
16-11
3GR702500
FUEL CONN, ENGINE SIDE, FEMALE 4 STROKE, 4-50
16-10
3GF702810
FUEL CONNECTOR
16-7
3GF702410
HOSE (LOW PERMEATION)
16-8
3GF702400
HOSE (LOW PERMEATION)-DISCONTINUED
16-5
3GF702111
PRIMER BULB, LOW PERMEATION
16-2
3C7702201
JOINT A ASSY, INNER
16-13
3AC700521
FUEL TANK CAP ASSY (EPA/CARB)
16-6
3C7702170
CLAMP
16-5
3C7702111
PRIMER BULB
16-20
3C7701990
O-RING
16-21
3C7701130
FILTER SCREEN 9754
16-23
3B2701550
ELBOW TUBING AND CLAMP ASSY
16-22
3B2700501
FUEL GAUGE VENTED CAP, 3 GAL TANK
16-1
3AD702002
PRIMER BULB ASSY (LOW PERMEATION)
16-19
3AC701500
GASKET, FUEL PICK-UP
16-18
3AC701450
WASHER, FUEL PICK-UP
16-17
3AC701400
SCREW, FUEL PICK-UP
16-14
3AC700550
RETAINING RING, FUEL CAP
16-15
9999800MA2
FUEL CONN, TANK SIDE MALE (1/4 IN. NPT)
