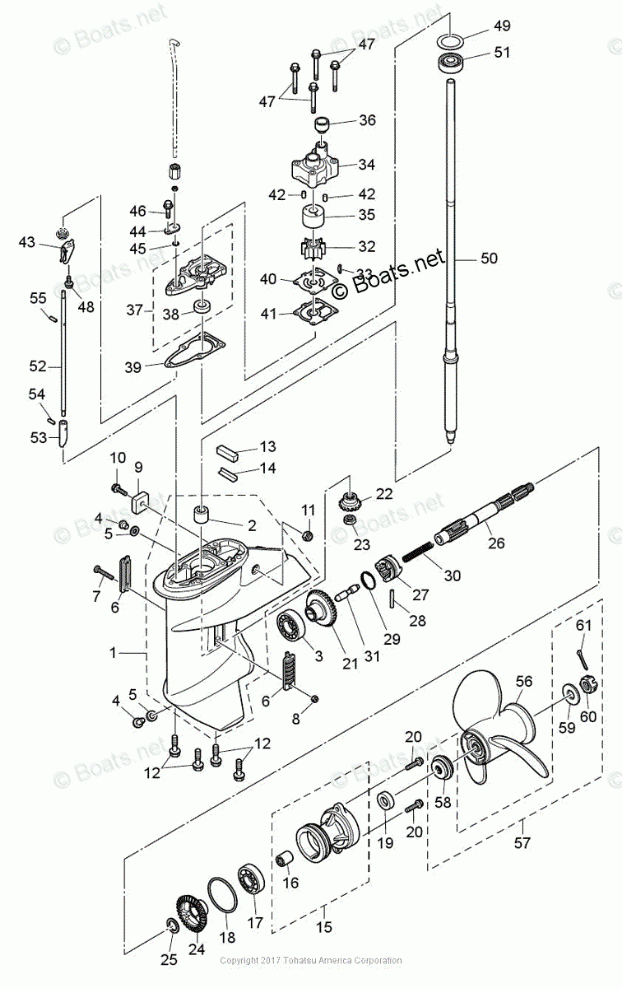

КАРТЕР КОРОБКИ ПЕРЕДАЧ
КАРТЕР КОРОБКИ ПЕРЕДАЧ

КАРТЕР КОРОБКИ ПЕРЕДАЧ

Tohatsu MFS15E (EFI)

КАРТЕР КОРОБКИ ПЕРЕДАЧ

#

oem код

название

цена

9-4

OIL PLUG (8 X 1.25)

OIL PLUG (8 X 1.25)

9-52

CAM ROD (S/L)

CAM ROD (S/L)

9-21

BEVEL GEAR ASSY (A)

BEVEL GEAR ASSY (A)

9-22

BEVEL GEAR (B)

BEVEL GEAR (B)

9-24

BEVEL GEAR (C)

BEVEL GEAR (C)

9-26

PROPELLER SHAFT (14 SPLINE)

PROPELLER SHAFT (14 SPLINE)

9-31

PUSH ROD

PUSH ROD

9-58

THRUST HOLDER

THRUST HOLDER

9-50

DRIVE SHAFT (S)

DRIVE SHAFT (S)

9-50

DRIVE SHAFT (L)

DRIVE SHAFT (L)

9-37

PUMP CASE ASSY (LOWER)

PUMP CASE ASSY (LOWER)

9-34

PUMP CASE (UPPER)

PUMP CASE (UPPER)

9-39

PUMP CASE GASKET (LOWER)

PUMP CASE GASKET (LOWER)

9-33

KEY

KEY

9-40

WATER PUMP GUIDE PLATE

WATER PUMP GUIDE PLATE

9-41

GUIDE PLATE GASKET

GUIDE PLATE GASKET

9-45

O-RING

O-RING

9-14

WATER SEAL PLATE

WATER SEAL PLATE

9-46

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

9-55

SPRING PIN (10 MULTIPLE)

SPRING PIN (10 MULTIPLE)

9-54

SPRING PIN (10 MULTIPLE)

SPRING PIN (10 MULTIPLE)

9-11

NYLON NUT

NYLON NUT

9-8

NYLON NUT (10 MULTIPLE)

NYLON NUT (10 MULTIPLE)

9-7

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

9-47

BOLT WASHER

BOLT WASHER

9-10

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

9-44

STOPPER

STOPPER

9-48

BOLT

BOLT

9-43

STOPPER

STOPPER

9-51

BALL BEARING

BALL BEARING

9-15

PROP SHAFT HOUSING ASSY

PROP SHAFT HOUSING ASSY

9-1

GEAR CASE ASSY

GEAR CASE ASSY

9-57

PROPELLER HARDWARE KIT

PROPELLER HARDWARE KIT

9-17

BALL BEARING

BALL BEARING

9-13

WATER SEAL RUBBER

WATER SEAL RUBBER

9-5

GASKET (10 MULTIPLE)

GASKET (10 MULTIPLE)

9-6

WATER STRAINER

WATER STRAINER

9-38

OIL SEAL

OIL SEAL

9-30

SPRING,CLUTCH

SPRING,CLUTCH

9-42

DOWEL PIN,4-10

DOWEL PIN,4-10

9-16

BUSHING

BUSHING

9-49

SHIM KIT

SHIM KIT

9-23

NUT, BEVEL GEAR B

NUT, BEVEL GEAR B

9-60

PROP NUT(9.9-30)

PROP NUT(9.9-30)

9-59

WASHER, PROP NUT (9.9-30)

WASHER, PROP NUT (9.9-30)

9-19

OIL SEAL

OIL SEAL

9-25

WASHER

WASHER

9-28

CLUTCH PIN

CLUTCH PIN

9-29

SNAP

SNAP

9-35

LINER, WATER PUMP CASE

LINER, WATER PUMP CASE

9-36

SEAL RUBBER

SEAL RUBBER

9-56

PROPELLER (9) 3 X 9.25 X 9 (F9.9/15/20)

PROPELLER (9) 3 X 9.25 X 9 (F9.9/15/20)

9-32

WATER PUMP IMPELLER

WATER PUMP IMPELLER

9-12

BOLT 8-31

BOLT 8-31

9-9

ANODE

ANODE

9-18

O-RING

O-RING

9-27

CLUTCH

CLUTCH

9-3

BALL BEARING 6205HS

BALL BEARING 6205HS

9-2

NEEDLE BEARING

NEEDLE BEARING

9-20

PRE-COATED BOLT

PRE-COATED BOLT

9-56

PROPELLER (13) 3 X 9.25 X 13 (F9.9/15/20)

PROPELLER (13) 3 X 9.25 X 13 (F9.9/15/20)

9-56

PROPELLER (7) 3 X 9.25 X 7 (F9.9/15/20)

PROPELLER (7) 3 X 9.25 X 7 (F9.9/15/20)

9-56

PROPELLER (12) 3 X 9.25 X 12 (F9.9/15/20)

PROPELLER (12) 3 X 9.25 X 12 (F9.9/15/20)

9-56

PROPELLER (11) 3 X 9.25 X 11.5 (F9.9/15/20)

PROPELLER (11) 3 X 9.25 X 11.5 (F9.9/15/20)

9-56

PROPELLER (8) 3 X 9.25 X 8 (F9.9/15/20)

PROPELLER (8) 3 X 9.25 X 8 (F9.9/15/20)

9-53

CLUTCH CAM

CLUTCH CAM

9-56

PROPELLER (11) 3 X 9.25 X 11 (F9.9/15/20)

PROPELLER (11) 3 X 9.25 X 11 (F9.9/15/20)

9-56

PROPELLER (10) 3 X 9.25 X 10 (F9.9/15/20)

PROPELLER (10) 3 X 9.25 X 10 (F9.9/15/20)

9-61

SPLIT PIN (10 MULTIPLE)

SPLIT PIN (10 MULTIPLE)
