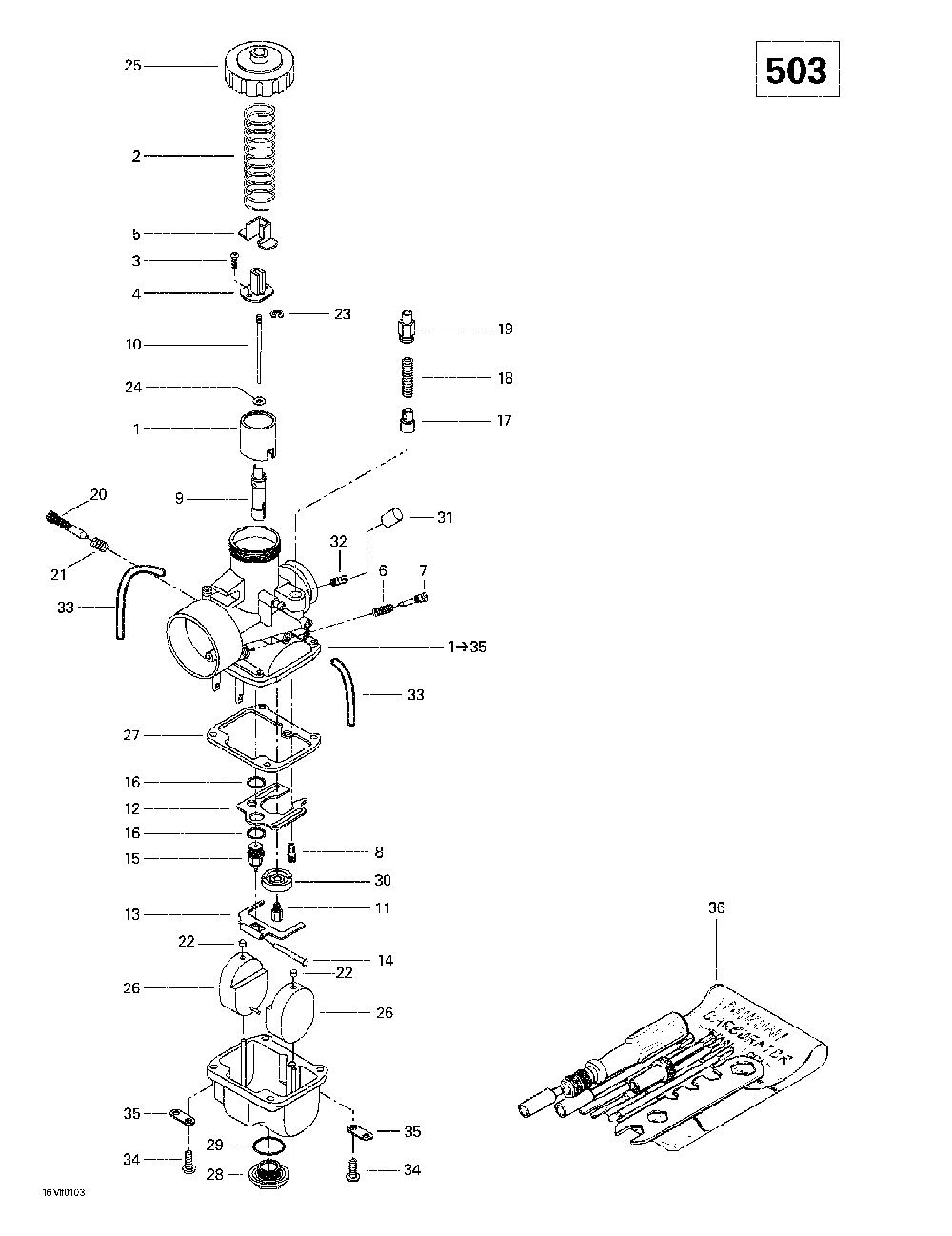

Карбюратор (503)

Ski-Doo (Bombardier) Touring 380 F/500F
Ski-Doo (Bombardier)
#oem кодцена
1
403138603
Carb.vm-34 *carb-vm-34 Includes 1 - 35. Touring 500 F.
403138604
Carb.vm-34 *carb-vm-34 Touring 500 F.
1
404128400
Tiroir Acc.2.5 *piston-val.2.5 Touring 500 F.
2
404154800
Ressort *spring Touring 500 F.
3
404121300
Vis W.rondelle*screw-with Washer Touring 500 F.
4
404161948
Joint *packing Touring 500 F.
5
404122100
Couvercle *cover Touring 500 F.
6
404139800
Ressort *spring Touring 500 F.
7
404149000
Vis Air *screw-air Touring 500 F.
8
404109100
Gicleur Ralenti*jet-pilot 40 Touring 500 F.
9
404107000
Gicleur Aiguil.*jet Needle Touring 500 F.
10
404110400
Aiguille 6dh02 *needle Touring 500 F.
11
404112200
Gicleur Mj 180 *jet-main 180 Touring 500 F.
404123800
Gicleur Mj 170 *jet-main 170 Touring 500 F.
12
404109600
Chicane *baffle Touring 500 F.
13
404107600
Levier Flotteur*lever-float Touring 500 F.
14
404103300
Goupille Levier*pin-lever Touring 500 F.
15
404103200
Pointeau Vs 1.5*valve-needle Touring 500 F.
16
404101600
Rondelle Siege *washer-seat Touring 500 F.
17
404161000
Plongeur Ass. *plunger-assy Touring 500 F.
18
404127400
Ressort *spring Touring 500 F.
19
404161100
Guide *guide Holder Touring 500 F.
20
404125200
Vis Etrangleur*screw-throttle Touring 500 F.
21
404101700
Ressort *spring Touring 500 F.
22
404105800
Capuchon *cap Touring 500 F.
23
404152400
Rondelle E *ring-e Touring 500 F.
24
404117000
Joint Tampon *packing Touring 500 F.
25
404103700
Couvercle Carb.*top-mix.chamb. Touring 500 F.
26
404107100
Flotte *float Touring 500 F.
27
404104200
Joint *gasket Touring 500 F.
28
404107400
Vis Bouchon *screw-drain Plug Touring 500 F.
29
404107300
Joint Torique *o-ring Touring 500 F.
30
404110900
Bague Chicane *ring-baffle Touring 500 F.
31
404156600
Capuchon *cap Touring 500 F.
32
404153400
Raccord *nipple Touring 500 F.
33
404161880
Boyau *hose Touring 500 F.
34
404102000
Screw-w/lock *screw-w/lockwasher Touring 500 F.
35
404103000
Plaque *plate Touring 500 F.
36
404112000
Trousse Outils *tool Kit Touring 500 F.
