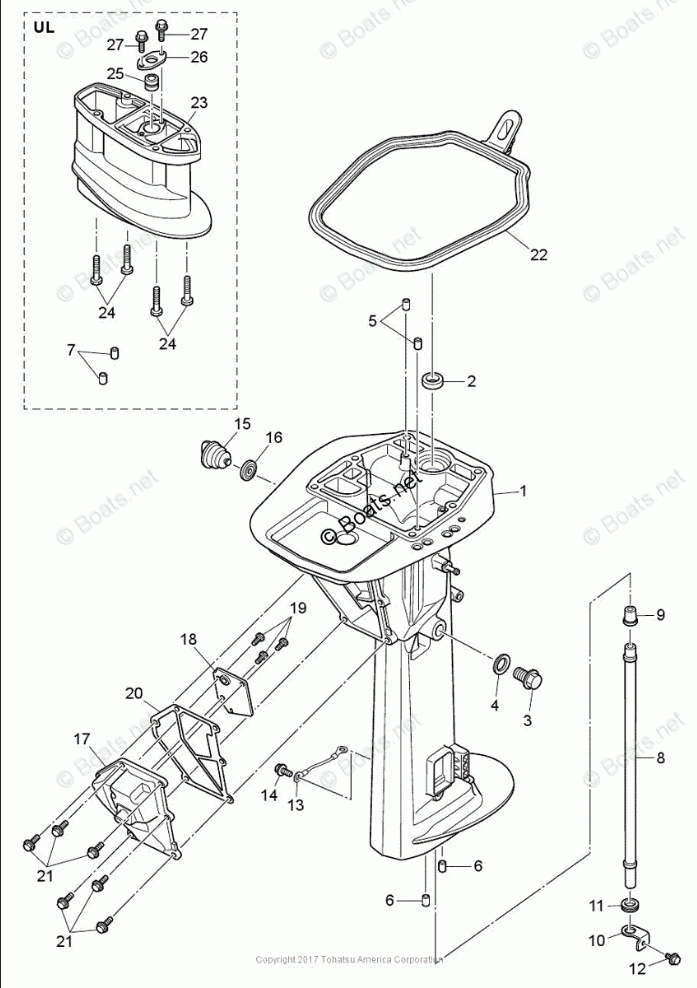

КОРПУС ПРИВОДНОГО ВАЛА

Tohatsu MFS15E (EFI)
Tohatsu
#oem кодцена
8-5
345011110
DOWEL PIN 6-12
8-15
3RS724040
FLUSHING CONNECTOR CAP
8-12
9101E35612
BOLT WASHER (10 MULTIPLE)
8-27
9101E35612
BOLT WASHER (10 MULTIPLE)
8-19
9101E30512
BOLT
8-14
9101030612
BOLT (10 MULTIPLE)
8-9
3V1652060
SEAL UPPER, WATER PIPE
8-11
3V1652040
RUBBER MOUNT
8-26
3V1643320
STOPPER, BUSHING
8-1
3RTQ610200
DRIVE SHAFT HOUSING ASSY (S)
8-17
3RSQ612090
IDLE EXHAUST PORT COVER ASSY
8-23
3RSQ611100
EXTENSION HOUSING (UL)
8-1
3RSQ610300
DRIVE SHAFT HOUSING ASSY (L)
8-1
3RSQ610200
DRIVE SHAFT HOUSING ASSY (S)
8-16
3RS671470
SEAL RING
8-2
350012151
OIL SEAL
8-22
3RS671160
ENGINE BASEMENT SEAL
8-10
3RS652030
LOCK PLATE
8-8
3RS651100
WATER PIPE (L)
8-8
3RS651000
WATER PIPE (S)
8-18
3RS621140
PLATE
8-20
3RS612200
IDLE EXHAUST PORT GASKET
8-3
3R3077051
DRAIN BOLT
8-4
3R3074060
WASHER (10 MULTIPLE)
8-13
3C8623961
GROUND WIRE
8-25
3BJ600030
DRIVE SHAFT BUSHING
8-24
3BJ600010
BOLT 8-31
8-7
3AB011110
DOWEL PIN, 6-12
8-6
3AB011110
DOWEL PIN, 6-12
8-21
9101E35616
BOLT WASHER (10 MULTIPLE)
