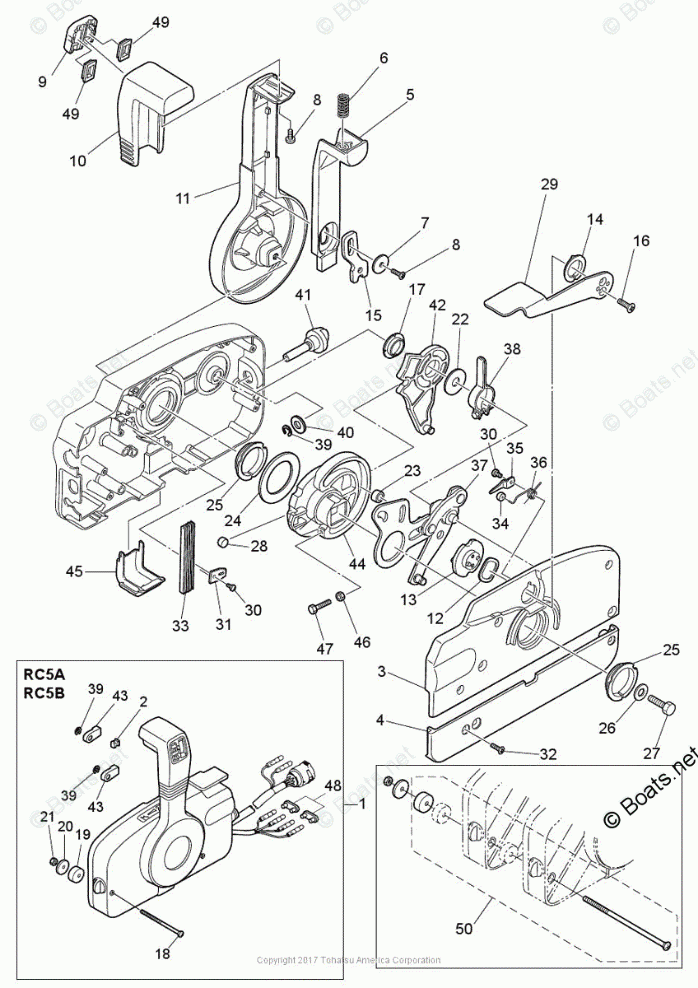

COMPONENT PARTS OF REMOTE CONTROL

Tohatsu MFS9.9E (EFI)
Tohatsu
#oem кодцена
17-48
353760370
PLUG
17-1
3B7Q843403
RC BOX, RC5B (MFS-15/18B2-15/20D-25/30C EP) W/ ELECTRIC START W/O PTT
17-38
3A3844280
ARM
17-45
3A3844290
WIRE COVER
17-25
3A3844310
BUSHING A
17-17
3A3844320
BUSHING B
17-14
3A3844350
BUSHING
17-27
3A3844420
BOLT
17-9
3A3844510
FINISHER, TILT
17-49
3A3844520
PLUG, TILT SWITCH
17-1
3ACQ843301
R C BOX (RC5A) MFS8-30C, M40D2-90A W/PTT/ELECTRIC START
17-29
3B7Q843120
FREE THROTTLE LEVER
17-11
3B7Q843430
CONTROL LEVER (AMB)
17-35
3A3844260
RETAINER
17-4
3B7Q843660
REAR PANEL
17-3
3B7Q844410
REAR HOUSING
17-47
9101030525
BOLT (10 MULTIPLE)
17-30
9215030406
SCREW (10 MULTIPLE)
17-8
9215030510
SCREW (10 MULTIPLE)
17-16
9216030512
SCREW (10 MULTIPLE)
17-32
9216030516
SCREW (10 MULTIPLE)
17-46
9301030500
NUT (10 MULTIPLE)
17-21
9301030600
NUT (10 MULTIPLE)
17-26
9401030800
WASHER (10 MULTIPLE)
17-41
3A3844270
SCREW, FRICTION
17-36
3A3844250
SPRING, FREE ACCELERATOR
17-20
353843710
WASHER
17-2
3A3843760
GROMMET
17-28
353843880
ROLLER, THROTTLE DRUM
17-40
353843940
WASHER
17-50
3A3813010
TWIN SLRC KIT
17-43
3A3833142
TERMINAL EYE
17-33
3A3843070
SPRING
17-44
3A3843642
DRIVE GEAR
17-37
3A3843651
THROTTLE ARM
17-12
3A3843680
WAVE WASHER
17-19
3A3843740
SPACER
17-18
3A3843750
SCREW
17-42
3A3843810
SHIFT GEAR ASSY
17-34
3A3844240
ROLLER, FREE ACCELERATOR
17-22
3A3843830
WASHER
17-13
3A3843910
DRUM, FREE ACCELERATOR
17-5
3A3844010
ARM, NEUTRAL LOCK
17-6
3A3844030
SPRING
17-10
3A3844040
GRIP
17-15
3A3844060
PLATE, LOCK ARM
17-7
3A3844070
WASHER, LOCK ARM
17-23
3A3844210
ROLLER
17-24
3A3844220
THRUST PLATE
17-31
3A3844230
RETAINER
17-39
9453030600
E-RING (10 MULTIPLE)
