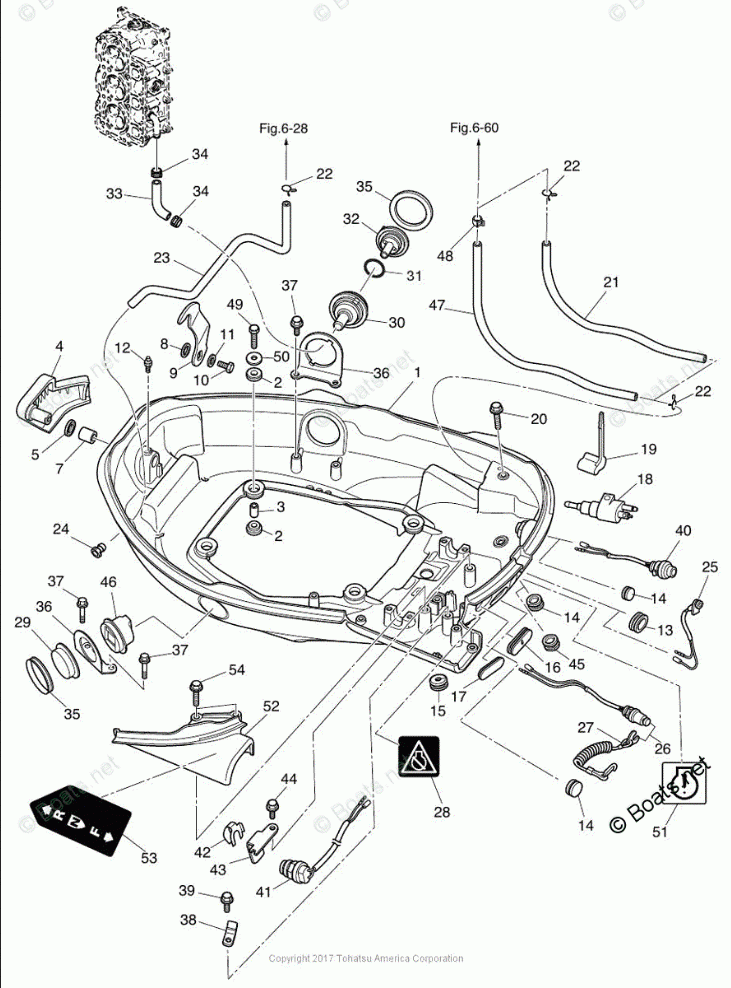

BOTTOM COWL

Tohatsu MFS25C
Tohatsu
#oem кодцена
16-22
338022150
CLIP, FUEL PIPE
16-24
3T1011380
WATER NIPPLE
16-41
3NV760800
NEUTRAL SWITCH
16-43
3NV760810
BRACKET, NEUTRAL SWITCH
16-1
3NVQ671000
BOTTOM COWL
16-52
3NVQ674830
CABLE STAY, REMOTE CONTROL
16-47
3NW040550
HOSE, LOW PERMEATION
16-16
3NW636240
GROMMET
16-31
3R0074220
O-RING
16-11
3R0663080
WASHER, 6-16-1.5
16-13
3R3671620
GROMMET, BATTERY CORD
16-25
3R3710400
PILOT LAMP ASSY
16-34
3T1074370
CLIP, 17.8
16-53
3NV675780
SHIFT DECAL (F-N-R)
16-30
3T1724030
FLUSHING CONNECTOR
16-32
3T1724040
CAP, FLUSHING CONNECTOR
16-10
9101030612
BOLT (10 MULTIPLE)
16-20
9101035630
BOLT (10 MULTIPLE)
16-54
9101035630
BOLT (10 MULTIPLE)
16-49
9101E30630
BOLT (10 MULTIPLE)
16-44
9101E35616
BOLT WASHER (10 MULTIPLE)
16-37
9101E35616
BOLT WASHER (10 MULTIPLE)
16-39
9101E35616
BOLT WASHER (10 MULTIPLE)
16-8
9414031400
WAVE WASHER (10 MULTIPLE)
16-21
98AB501000
FUEL PIPE 5MM (3/16) (1 EA.=1 METER)
16-36
3NV726170
BRACKET, PTT SWTCH-F25/30C
16-9
3NV671420
COVER, HOOK
16-5
338671470
SEAL RING
16-42
398760830
ACTUATOR, NEUTRAL SWITCH
16-45
338671630
SUPPORTING RUBBER, FUEL PIPE
16-12
344671771
GREASE NIPPLE
16-14
345671170
GROMMET
16-2
346671130
MOUNT RUBBER
16-3
346671141
SPACER
16-50
346671150
WASHER
16-7
350671050
BUSHING, HOOK LEVER
16-27
353068210
SAFETY LANYARD LOCK
16-18
394702600
FUEL CONN, ENGINE SIDE, MALE, 4 STROKE, 4-50
16-26
398068300
STOP SWITCH ASSY W/LANYARD
16-40
3AA760260
MAIN SWITCH
16-4
3NV671410
HOOK LEVER
16-28
3AC722000
STOP SWITCH DECAL
16-46
3AC726150
PTT SWITCH
16-51
3AC761900
WARNING DECAL
16-35
3F3726161
GASKET, PTT SWITCH NS70B, D40/50B2
16-33
3FW724100
FLUSHING HOSE
16-48
3GT351430
CLIP, @ 9.4
16-19
3H6702620
PROTECTOR, FUEL CONN
16-15
3KY671170
GROMMET, TRIM SENDER
16-29
3KY726180
GROMMET, PTT SWITCH
16-17
3NV636240
GROMMET
16-38
3NV636280
CLAMP
16-23
98AR50480
RUBBER HOSE
