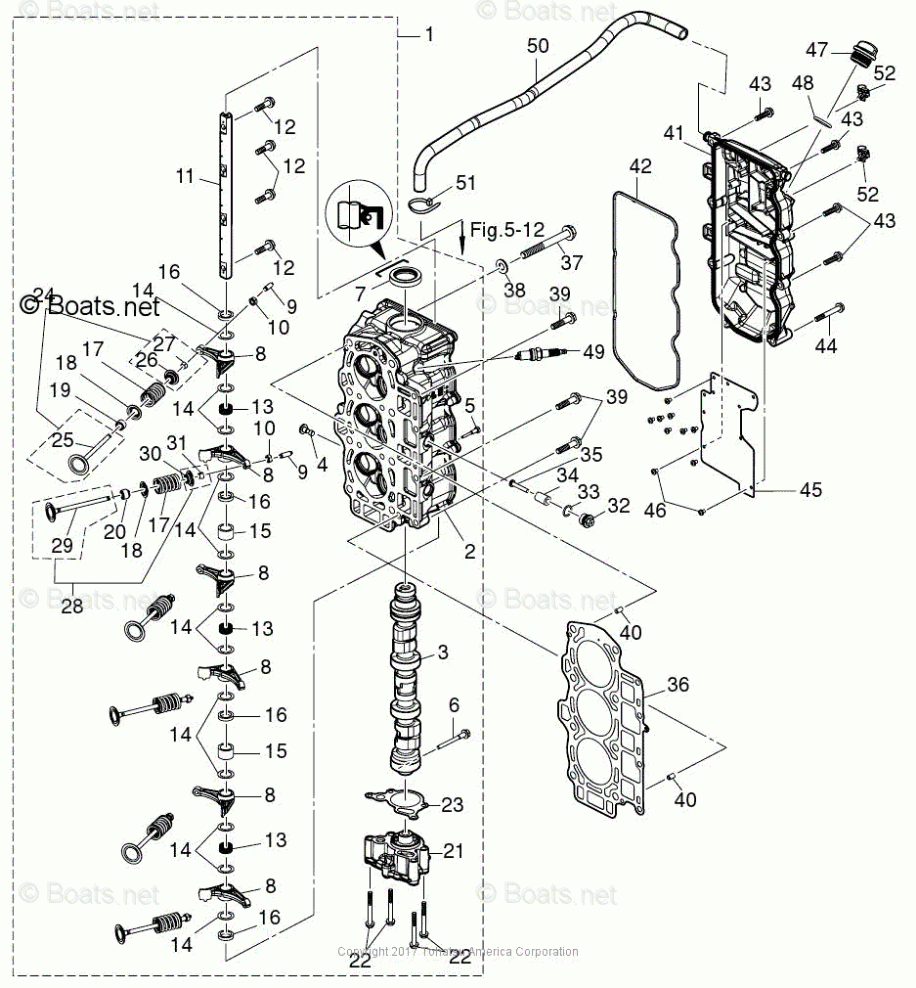

CYLINDER HEAD & OIL PUMP

Tohatsu MFS40A
Tohatsu
#oem кодцена
3-40
345011110
DOWEL PIN 6-12
3-48
3R0074220
O-RING
3-5
3KY079620
LIFTER BOLT
3-52
3KY843980
BAND
3-1
3KYB010000
CYLINDER HEAD, COMPLETE MFS40A/50A
3-2
3KYB010010
CYLINDER HEAD, MFS40A/50A
3-41
3KYB010200
CYLINDER HEAD COVER
3-16
3KZ079390
COLLAR, 16-21.7-4.25
3-32
3P0011430
ANODE PLUG
3-34
3P0602180
ANODE
3-9
3R0072380
SCREW
3-47
3R0710151
FILLER CAP, ENGINE OIL
3-6
3KY079500
THRUST BOLT
3-19
3R3072040
SEAL, INT VALVE STEM
3-20
3R3072060
SEAL, EXH VALVE STEM
3-33
3T5100460
O-RING
3-51
3T5843980
LEAD WIRE BAND, 104
3-7
3V1001210
OIL SEAL
3-44
9101035645
BOLT
3-43
9101E35625
BOLT WASHER (10 MULTIPLE)
3-22
9101E35650
BOLT
3-35
9215030530
SCREW (10 MULTIPLE)
3-46
9215210408
SCREW
3-4
3KY079600
LIFTER
3-15
3KY079390
COLLAR, 16-21.7-14.25
3-39
3BJ610171
BOLT
3-25
3KY079010
INTAKE VALVE
3-10
3H8072370
NUT
3-36
3KY010050
CYLINDER HEAD GASKET
3-37
3KY010130
CYLINDER HEAD BOLT
3-42
3KY010240
CYLINDER HEAD COVER GASKET
3-21
3KY076000
OIL PUMP ASSY
3-23
3KY076530
OIL PUMP GASKET
3-45
3KY077310
BREATHER CHAMBER COVER
3-50
3KY077350
BREATHER HOSE
3-3
3KY078100
CAMSHAFT ASSY
3-29
3KY079020
EXHAUST VALVE
3-8
3KY079350
ROCKER ARM
3-17
3KY079030
VALVE SPRING
3-18
3KY079050
VALVE SPRING SEAT
3-11
3KY079200
ROCKER ARM SHAFT
3-30
3KY079210
RETAINER
3-26
3KY079210
RETAINER
3-12
3KY079220
ROCKER SHAFT BOLT
3-31
3KY079230
COTTER
3-27
3KY079230
COTTER
3-13
3KY079250
ROCKER SHAFT SPRING
3-14
3KY079270
WASHER
3-49
970101105
SPARK PLUG, NGK DCPR6EIX, (SOLD INDIVIDUALLY)
