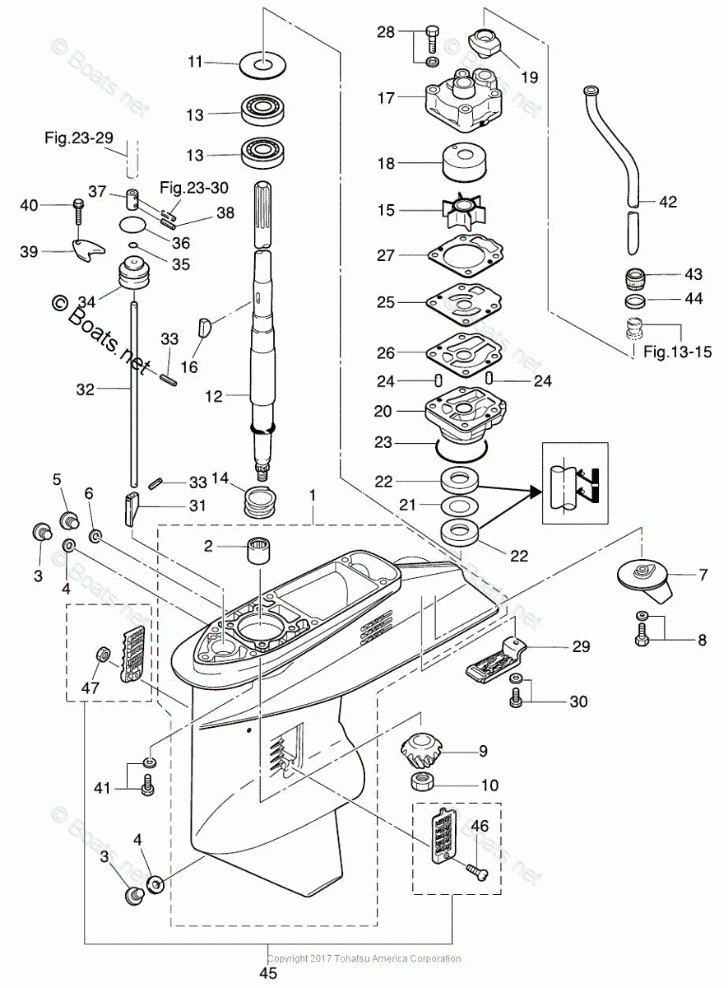

GEAR CASE, DRIVE SHAFT

Tohatsu MD50B2
Tohatsu
#oem кодцена
14-3
332600052
OIL PLUG (8 X 1.25)
14-1
3C8Q600000
GEAR CASE S/L (AMB)
14-42
3C8651000
WATER PIPE S
14-42
3C8651100
WATER PIPE L
14-42
3C8651200
WATER PIPE UL
14-31
3C8660110
CLUTCH CAM
14-32
3C8660120
CAM ROD S
14-32
3C8660130
CAM ROD L
14-32
3C8660140
CAM ROD UL
14-34
3C8660311
CAM BUSHING
14-36
3C8660320
O-RING
14-37
3C8662410
JOINT
14-1
3C8Q600901
GEAR CASE UL (AMB)
14-25
3C8650250
GUIDE PLATE
14-18
3T5650110
LINER, PUMP CASE
14-17
3T5650160
UPPER PUMP CASE
14-27
3T5650182
GASKET, PUMP CASE
14-40
9101E35612
BOLT WASHER (10 MULTIPLE)
14-30
9101E35616
BOLT WASHER (10 MULTIPLE)
14-8
9101E35620
BOLT WASHER (10 MULTIPLE)
14-41
9101E35835
BOLT WASHER
14-28
9101E35855
BOLT
14-46
9215030438
SCREW (10 MULTIPLE)
14-47
9304030400
NYLON NUT (10 MULTIPLE)
14-38
9514030312
SPRING PIN (10 MULTIPLE)
14-26
3C8650292
GASKET
14-15
3C8650212
IMPELLER (40D/F40A/50D/F50A)
14-4
332600060
GASKET (10 MULTIPLE)
14-29
3C8602040
SUB WATER STRAINER
14-16
332650220
IMPELLER KEY
14-35
332660210
O-RING
14-24
334650120
DOWEL PIN,4-10
14-2
345602110
NEEDLE BEARING A
14-11
345640230
SHIM KIT
14-23
345650150
O-RING
14-44
345652050
COLLAR
14-43
345652060
UPPER SEAL RUBBER, WATER PIPE
14-39
353660240
STOPPER
14-5
3B7600151
WATER PLUG
14-6
3B7600161
GASKET
14-45
3C8602051
STRAINER SET FOR LOW WATER PICK UP
14-20
3C8650171
PUMP CASE LOWER
14-13
3C8602130
BEARING
14-7
3C8602171
TRIM TAB
14-22
3C8602230
OIL SEAL
14-9
3C8640202
BEVEL GEAR B (PINION)
14-10
3C8640270
NUT BEVEL GEAR
14-21
3C8640840
SHIM
14-12
3C8643010
DRIVE SHAFT S
14-12
3C8643020
DRIVE SHAFT L
14-12
3C8643030
DRIVE SHAFT UL
14-14
3C8643270
SPRING, DRIVE SHAFT
14-19
3C8650140
RUBBER SEAL
14-33
9514070312
SPRING PIN (10 MULTIPLE)
