TILLER HANDLE (MULTI-FUNCTION) Каталог оригинальных запчастей для лодочных моторов Tohatsu MD50B2 (2017)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Tohatsu
2017
MD50B2
TILLER HANDLE (MULTI-FUNCTION)
TILLER HANDLE (MULTI-FUNCTION)

TILLER HANDLE (MULTI-FUNCTION)

Tohatsu MD50B2

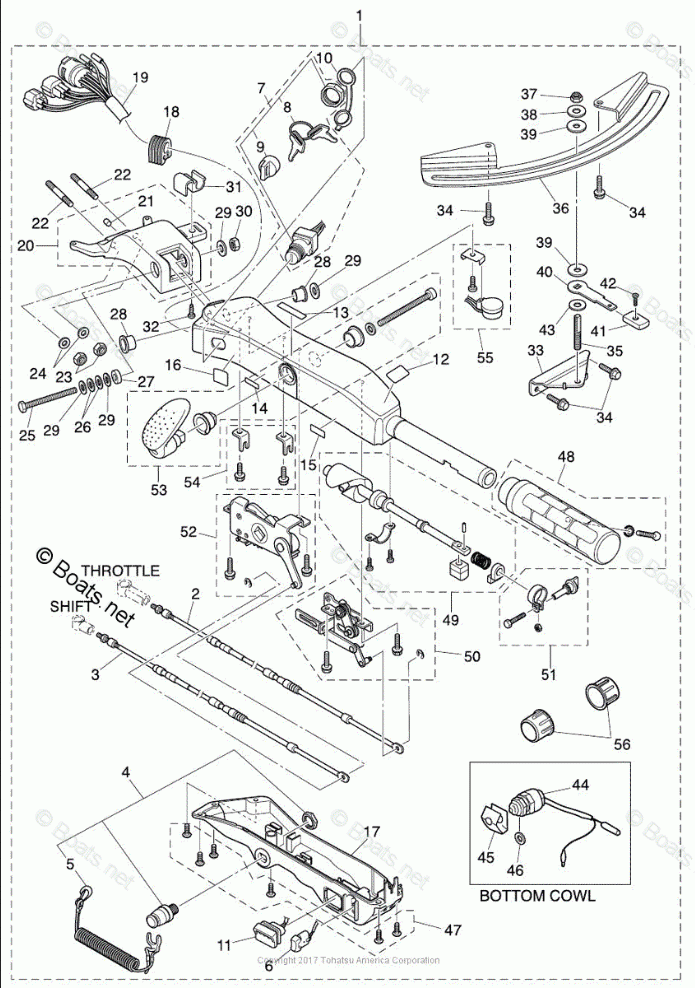

TILLER HANDLE (MULTI-FUNCTION)

#

oem код

название

цена

25A-56

BRACKET CAP

BRACKET CAP

25A-9

MAIN SWITCH KEY CAP

MAIN SWITCH KEY CAP

25A-53

SHIFT LEVER KIT

SHIFT LEVER KIT

25A-52

SHIFT UNIT ASSY

SHIFT UNIT ASSY

25A-3

SHIFT CABLE-MULTI FUNCTION TILLER D40/50

SHIFT CABLE-MULTI FUNCTION TILLER D40/50

25A-54

CABLE BRACKET KIT

CABLE BRACKET KIT

25A-13

SHIFT DECAL

SHIFT DECAL

25A-11

PILOT LAMP ASSY

PILOT LAMP ASSY

25A-12

THROTTLE DECAL

THROTTLE DECAL

25A-14

WARNING LAMP DECAL

WARNING LAMP DECAL

25A-15

STOP SWITCH DECAL

STOP SWITCH DECAL

25A-7

MAIN SWITCH

MAIN SWITCH

25A-55

BUZZER KIT

BUZZER KIT

25A-8

KEY-#943 (ONE KEY)

KEY-#943 (ONE KEY)

25A-18

GROMMET

GROMMET

25A-8

KEY-#944 (ONE KEY)

KEY-#944 (ONE KEY)

25A-8

KEY-#945 (ONE KEY)

KEY-#945 (ONE KEY)

25A-16

INSTRUCTION DECAL

INSTRUCTION DECAL

25A-20

STEERING BRACKET ASSY, D40/50B

STEERING BRACKET ASSY, D40/50B

25A-1

MULTI FUNCTION TILLER HANDLE D40/50B2

MULTI FUNCTION TILLER HANDLE D40/50B2

25A-19

CORD ASSY, TILLER HANDLE KIT, D40/50B

CORD ASSY, TILLER HANDLE KIT, D40/50B

25A-43

WASHER

WASHER

25A-32

TAPPING SCREW 6-16

TAPPING SCREW 6-16

25A-10

CAP , MAIN SWITCH

CAP , MAIN SWITCH

25A-34

BOLT, 6-16 PRE-COATED

BOLT, 6-16 PRE-COATED

25A-37

NYLON NUT, CO-PILOT (8MM)

NYLON NUT, CO-PILOT (8MM)

25A-29

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

25A-21

DOWEL PIN, TILLER HANDLE

DOWEL PIN, TILLER HANDLE

25A-2

THROTTLE WIRE-MULTI FUNCTION TILLER D40/50

THROTTLE WIRE-MULTI FUNCTION TILLER D40/50

25A-42

STOPPER

STOPPER

25A-40

FRICTION LEVER, D40/50B

FRICTION LEVER, D40/50B

25A-5

SAFETY LANYARD LOCK

SAFETY LANYARD LOCK

25A-4

STOP SWITCH ASSY W/LANYARD

STOP SWITCH ASSY W/LANYARD

25A-44

NEUTRAL SWITCH ASSY

NEUTRAL SWITCH ASSY

25A-45

ACTUATOR, NEUTRAL SWITCH

ACTUATOR, NEUTRAL SWITCH

25A-41

GRIP

GRIP

25A-6

PTT SWITCH ASSY

PTT SWITCH ASSY

25A-38

WASHER

WASHER

25A-46

WASHER 12.5-24-1

WASHER 12.5-24-1

25A-23

NYLON NUT

NYLON NUT

25A-31

CORD HOLDER

CORD HOLDER

25A-22

STUD

STUD

25A-33

FRICTION LEVER BRACKET, D40/50B

FRICTION LEVER BRACKET, D40/50B

25A-35

BOLT, CO-PILOT

BOLT, CO-PILOT

25A-17

TILLER HANDLE COVER

TILLER HANDLE COVER

25A-36

PLATE, CO-PILOT

PLATE, CO-PILOT

25A-39

DISK, CO-PILOT

DISK, CO-PILOT

25A-27

SPACER

SPACER

25A-51

THROTTLE FRICTION ASSY

THROTTLE FRICTION ASSY

25A-49

THROTTLE SHAFT KIT

THROTTLE SHAFT KIT

25A-50

THROTTLE LINK ASSY

THROTTLE LINK ASSY

25A-28

BUSHING

BUSHING

25A-48

GRIP PARTS KIT

GRIP PARTS KIT

25A-25

BOLT

BOLT

25A-47

SCREW SET

SCREW SET

25A-26

CONICAL SPRING WASHER

CONICAL SPRING WASHER

25A-30

LOCK NUT

LOCK NUT

25A-24

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)
