BRACKET Каталог оригинальных запчастей для лодочных моторов Tohatsu MD90C2 (2017)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

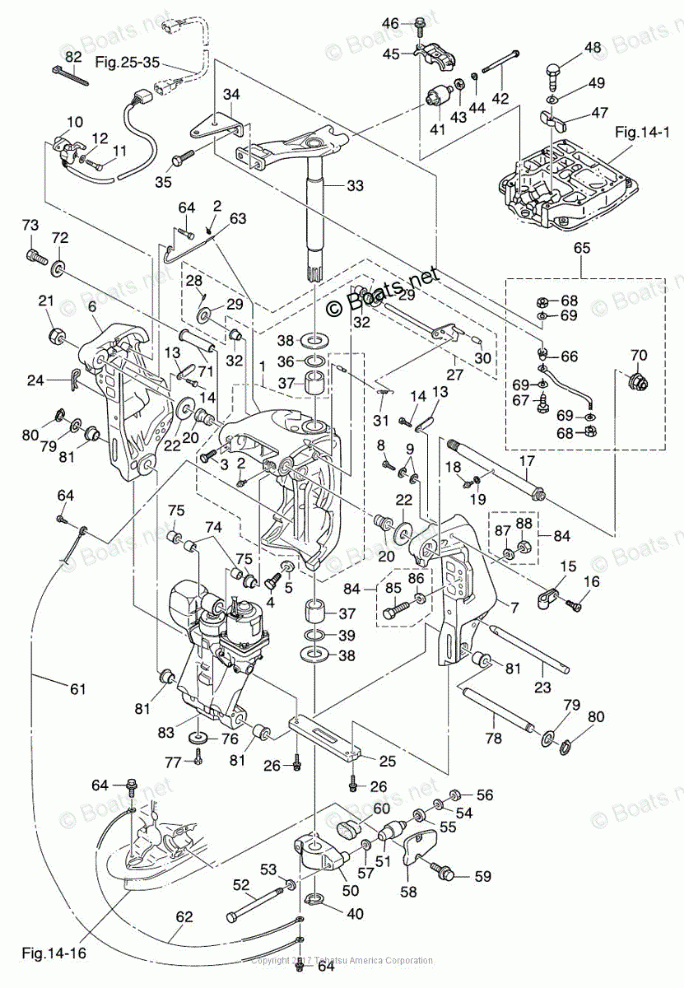

BRACKET

Tohatsu MD90C2

BRACKET

#

oem код

название

цена

17-18

GREASE NIPPLE

GREASE NIPPLE

17-65

DRAG LINK ASSY

DRAG LINK ASSY

17-82

LEAD WIRE BAND, 104

LEAD WIRE BAND, 104

17-10

TRIM SENDER (2-WIRE)

TRIM SENDER (2-WIRE)

17-29

WASHER

WASHER

17-12

WASHER, 6-16-1.5

WASHER, 6-16-1.5

17-13

CLAMP

CLAMP

17-59

BOLT

BOLT

17-33

STEERING SHAFT ASSY

STEERING SHAFT ASSY

17-66

SPACER

SPACER

17-34

STEERING HOOK PLATE

STEERING HOOK PLATE

17-27

TILT STOPPER ASSY

TILT STOPPER ASSY

17-38

THRUST PLATE

THRUST PLATE

17-22

WASHER, 25.7-50-1

WASHER, 25.7-50-1

17-70

SEAL CAP, BRACKET BOLT

SEAL CAP, BRACKET BOLT

17-1

SWIVEL BRACKET ASSY

SWIVEL BRACKET ASSY

17-7

STERN BRACKET L (AMB)

STERN BRACKET L (AMB)

17-6

STERN BRACKET R (AMB)

STERN BRACKET R (AMB)

17-67

BOLT, DRAG LINK

BOLT, DRAG LINK

17-81

BUSHING 22-25.4-23.5

BUSHING 22-25.4-23.5

17-83

POWER TRIM TILT ASSY (AMB) D70/90

POWER TRIM TILT ASSY (AMB) D70/90

17-30

TILT STOPPER GRIP

TILT STOPPER GRIP

17-75

BUSHING 18-20-10.5

BUSHING 18-20-10.5

17-8

BOLT

BOLT

17-40

C-RING

C-RING

17-80

C-RING

C-RING

17-57

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

17-9

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

17-5

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

17-87

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

17-19

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

17-16

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

17-46

BOLT WASHER

BOLT WASHER

17-73

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

17-77

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

17-64

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

17-3

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

17-14

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

17-26

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

17-35

BOLT

BOLT

17-48

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

17-11

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

17-78

CYLINDER PIN LOWER

CYLINDER PIN LOWER

17-31

SPRING, TILT STOPPER

SPRING, TILT STOPPER

17-2

GREASE NIPPLE

GREASE NIPPLE

17-32

COLLAR

COLLAR

17-56

NUT

NUT

17-42

BOLT, UPPER MOUNT

BOLT, UPPER MOUNT

17-41

UPPER MOUNT

UPPER MOUNT

17-62

GROUND WIRE

GROUND WIRE

17-63

GROUND WIRE

GROUND WIRE

17-76

ANODE, ZINC (ROUND)

ANODE, ZINC (ROUND)

17-68

NYLON NUT

NYLON NUT

17-69

WASHER

WASHER

17-54

WASHER, 13-34-3

WASHER, 13-34-3

17-47

DAMPER MOUNT

DAMPER MOUNT

17-86

WASHER, 13-34-3

WASHER, 13-34-3

17-52

BOLT

BOLT

17-53

WASHER

WASHER

17-51

MOUNT RUBBER LOWER

MOUNT RUBBER LOWER

17-79

WASHER

WASHER

17-21

BRACKET NUT

BRACKET NUT

17-15

CORD CLAMP A

CORD CLAMP A

17-72

WASHER, RACHET

WASHER, RACHET

17-44

WASHER

WASHER

17-24

RETAINER

RETAINER

17-17

BRACKET BOLT ASSY.

BRACKET BOLT ASSY.

17-88

NUT

NUT

17-20

BUSHING, 25.6-28.6-40

BUSHING, 25.6-28.6-40

17-23

THRUST ROD

THRUST ROD

17-74

BUSHING

BUSHING

17-71

CYLINDER PIN UPPER

CYLINDER PIN UPPER

17-84

RIGGING BOLT SET

RIGGING BOLT SET

17-49

WASHER

WASHER

17-61

GROUND WIRE

GROUND WIRE

17-50

MOUNT BRACKET

MOUNT BRACKET

17-85

BOLT, STERN BRACKET

BOLT, STERN BRACKET

17-36

SEAL RING-NO LONGER AVAILABLE

SEAL RING-NO LONGER AVAILABLE

17-55

DAMPER RUBBER, 21-36-5

DAMPER RUBBER, 21-36-5

17-43

DAMPER RUBBER, 21-36-5

DAMPER RUBBER, 21-36-5

17-60

DAMPER RUBBER

DAMPER RUBBER

17-25

ANODE

ANODE

17-45

CAP, UPPER MOUNT RUBBER

CAP, UPPER MOUNT RUBBER

17-58

CAP, LOWER MOUNT RUBBER (AMB)

CAP, LOWER MOUNT RUBBER (AMB)

17-4

BOLT

BOLT

17-37

BUSHING

BUSHING

17-39

O-RING

O-RING

17-28

SPRING PIN (10 MULTIPLE)

SPRING PIN (10 MULTIPLE)
