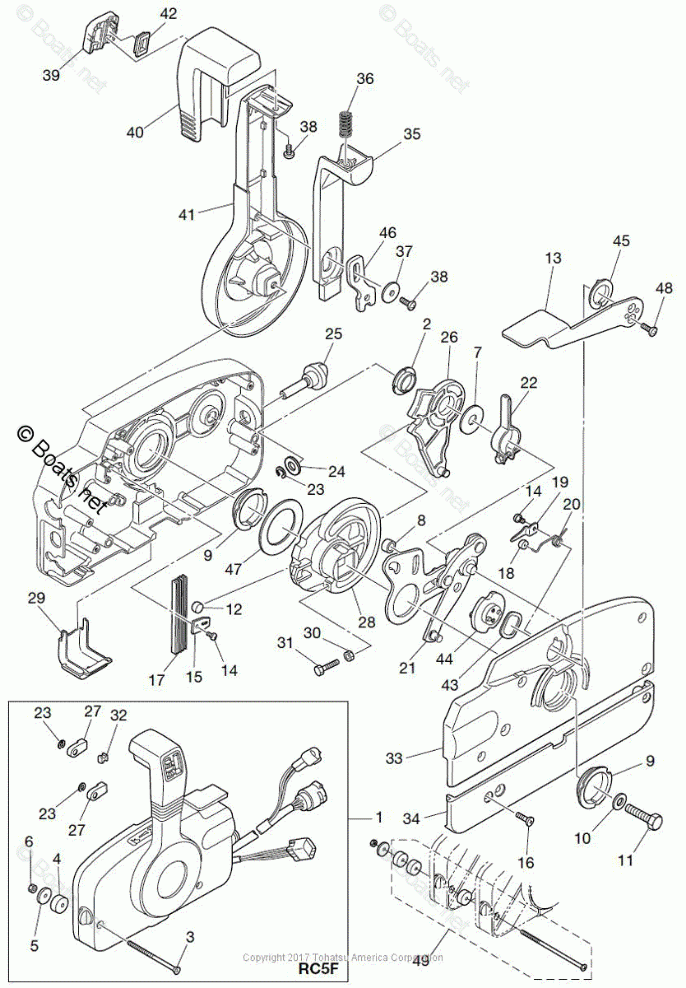

COMPONENT PARTS OF REMOTE CONTROL

Tohatsu MD90C2
Tohatsu
#oem кодцена
22-5
353843710
WASHER
22-41
3B7Q843430
CONTROL LEVER (AMB)
22-22
3A3844280
ARM
22-29
3A3844290
WIRE COVER
22-9
3A3844310
BUSHING A
22-2
3A3844320
BUSHING B
22-45
3A3844350
BUSHING
22-11
3A3844420
BOLT
22-39
3A3844510
FINISHER, TILT
22-42
3A3844520
PLUG, TILT SWITCH
22-13
3B7Q843120
FREE THROTTLE LEVER
22-34
3B7Q843660
REAR PANEL
22-19
3A3844260
RETAINER
22-33
3B7Q844410
REAR HOUSING
22-1
3GFQ845001
RC BOX, RC5F, ALL TLDI/MFS40/50A
22-31
9101030525
BOLT (10 MULTIPLE)
22-14
9215030406
SCREW (10 MULTIPLE)
22-38
9215030510
SCREW (10 MULTIPLE)
22-48
9216030512
SCREW (10 MULTIPLE)
22-16
9216030516
SCREW (10 MULTIPLE)
22-30
9301030500
NUT (10 MULTIPLE)
22-6
9301030600
NUT (10 MULTIPLE)
22-10
9401030800
WASHER (10 MULTIPLE)
22-25
3A3844270
SCREW, FRICTION
22-20
3A3844250
SPRING, FREE ACCELERATOR
22-12
353843880
ROLLER, THROTTLE DRUM
22-32
3A3843760
GROMMET
22-24
353843940
WASHER
22-49
3A3813010
TWIN SLRC KIT
22-27
3A3833142
TERMINAL EYE
22-17
3A3843070
SPRING
22-28
3A3843642
DRIVE GEAR
22-21
3A3843651
THROTTLE ARM
22-43
3A3843680
WAVE WASHER
22-4
3A3843740
SPACER
22-3
3A3843750
SCREW
22-26
3A3843810
SHIFT GEAR ASSY
22-18
3A3844240
ROLLER, FREE ACCELERATOR
22-7
3A3843830
WASHER
22-44
3A3843910
DRUM, FREE ACCELERATOR
22-35
3A3844010
ARM, NEUTRAL LOCK
22-36
3A3844030
SPRING
22-40
3A3844040
GRIP
22-46
3A3844060
PLATE, LOCK ARM
22-37
3A3844070
WASHER, LOCK ARM
22-8
3A3844210
ROLLER
22-47
3A3844220
THRUST PLATE
22-15
3A3844230
RETAINER
22-23
9453030600
E-RING (10 MULTIPLE)
