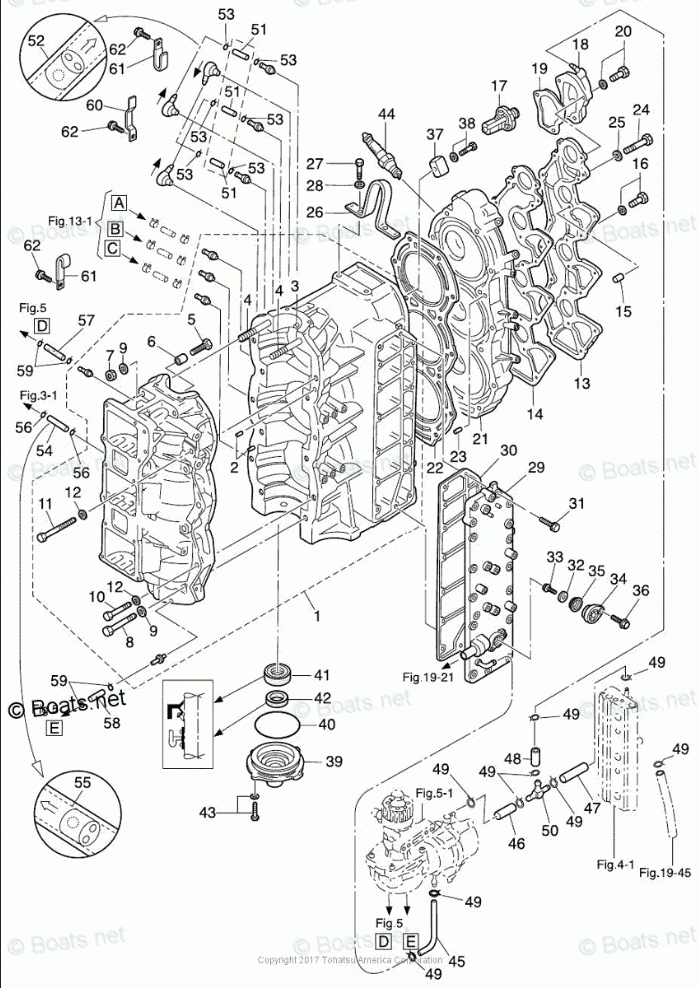

CYLINDER & CRANK CASE

Tohatsu MD90C2
Tohatsu
#oem кодцена
1-40
171000530
O-RING
1-16
9101E35625
BOLT WASHER (10 MULTIPLE)
1-14
3T9010240
GASKET, CYLINDER HEAD COVER
1-19
3T9010321
GASKET, THERMOSTAT CAP
1-13
3T9B010210
COVER, CYLINDER HEAD
1-18
3T9B010600
CAP, THERMOSTAT
1-33
9101030616
BOLT (10 MULTIPLE)
1-5
9101030618
BOLT (10 MULTIPLE)
1-38
9101035630
BOLT (10 MULTIPLE)
1-27
9101140820
BOLT
1-62
9101E35612
BOLT WASHER (10 MULTIPLE)
1-36
9101E35620
BOLT WASHER (10 MULTIPLE)
1-43
9101E35620
BOLT WASHER (10 MULTIPLE)
1-31
9101E35625
BOLT WASHER (10 MULTIPLE)
1-20
9101E35640
BOLT WASHER (10 MULTIPLE)
1-41
3T9001210
OIL SEAL
1-4
9153241065
STUD BOLT
1-10
9161240850
BOLT
1-11
9161240865
BOLT
1-24
9161290875
BOLT
1-8
9161291065
BOLT
1-7
9311211000
NUT
1-28
9401030800
WASHER (10 MULTIPLE)
1-44
970111111
SPARK PLUG, NGK IZFR6Q, IRIDIUM, (SOLD INDIVIDUALLY)
1-45
98AB501000
FUEL PIPE 5MM (3/16) (1 EA.=1 METER)
1-46
98AB501000
FUEL PIPE 5MM (3/16) (1 EA.=1 METER)
1-47
98AB501000
FUEL PIPE 5MM (3/16) (1 EA.=1 METER)
1-48
98AB501000
FUEL PIPE 5MM (3/16) (1 EA.=1 METER)
1-51
98AL401000
LUBE PIPE (1 EA.=1M) MUST USE 393011600M CHECK VALVE
1-22
3T9010050
GASKET, CYLINDER HEAD
1-3
3T9001170
KNOCK, MAIN BEARING
1-23
334650120
DOWEL PIN,4-10
1-37
3B7602181
ANODE
1-15
334650120
DOWEL PIN,4-10
1-56
338011330
LOCK RING
1-53
338011330
LOCK RING
1-49
338022150
CLIP, FUEL PIPE
1-25
345010150
WASHER
1-12
345010150
WASHER
1-2
345011110
DOWEL PIN 6-12
1-6
353760790
COLLAR
1-32
369602181
ANODE, ZINC (ROUND)
1-52
393011600
LINE CHECK VALVE
1-55
393011600
LINE CHECK VALVE
1-9
3B7011160
WASHER (10 MULTIPLE)
1-39
3B7012912
HEAD L/CRANK CASE
1-17
3C7010300
THERMOSTAT
1-50
3T7011750
T-NIPPLE (WITH VALVE)
1-42
3C7012150
OIL SEAL, 19.6-35-10
1-26
3C7B015132
HANGER
1-34
3FW011430
ANODE PLUG
1-35
3FW011460
SEAL RING
1-30
3FW023050
GASKET, EXHAUST COVER
1-60
3FW069720
CLAMP
1-57
3FW091150
OIL HOSE
1-21
3FWB010910
CYLINDER HEAD, D75C2/D90C2
1-1
3FWB011001
CYLINDER, CRANKCASE, D75/90C2
1-29
3FWB023000
EXHAUST COVER, OUTER
1-61
3FY069720
CLAMP
1-58
3GB091150
OIL HOSE
1-59
3T5843980
LEAD WIRE BAND, 104
1-54
98AL401000
LUBE PIPE (1 EA.=1M) MUST USE 393011600M CHECK VALVE
