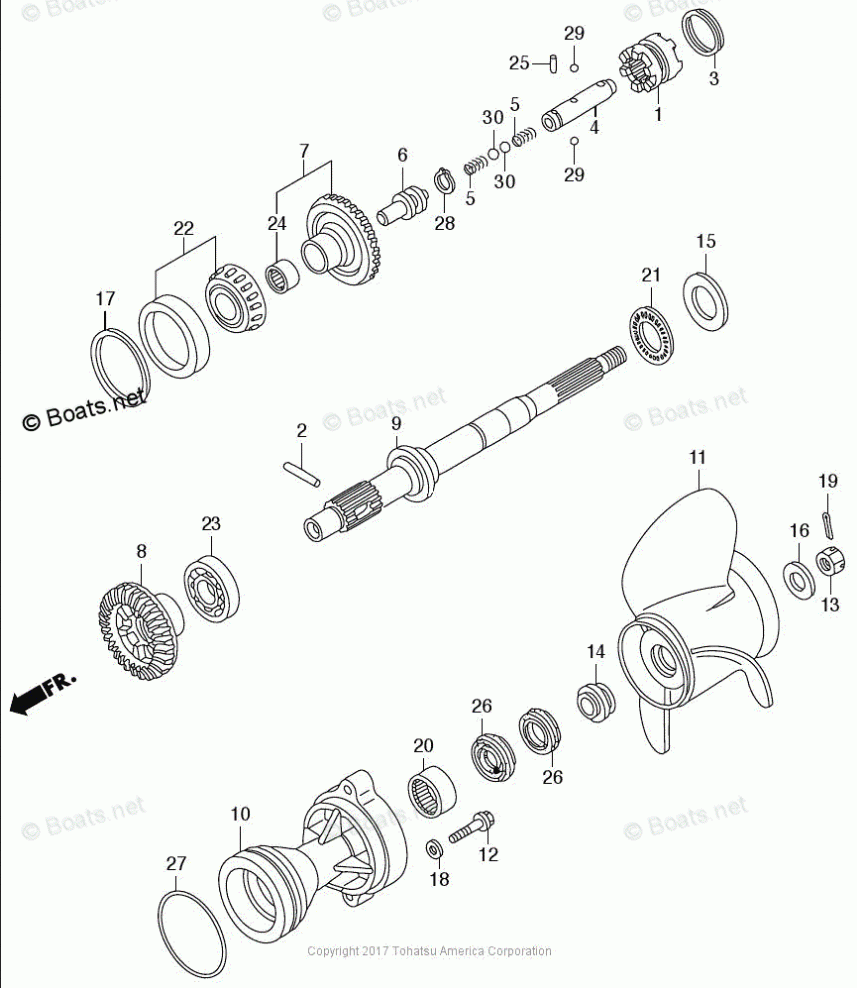

PROPELLER SHAFT/PROPELLER (LA/XA)

Tohatsu BFT115A
Tohatsu
#oem кодцена
F-5-11
9999RUBE313
PROP, (NOT AVAILABLE)
F-5-8
HZY641151000
GEAR, BEVEL REVERSE (30T)
F-5-17
HZY390531000
SHIM D, BEVEL (0.50)
F-5-27
HZY391351003
O-RING, 105 X 3.1
F-5-1
HZY624101000
SHIFTER, CLUTCH
F-5-4
HZY624122000
SLIDER, SHIFT
F-5-5
HZY624123000
SPRING, SHIFT
F-5-6
HZY624124000
PLATE, SHIFT
F-5-7
HZY641140000
GEAR, BEVEL (FORWARD 30T)
F-5-9
HZY641161000
SHAFT, PROPELLER, BFT115/150A
F-5-17
HZY390529000
SHIM B, BEVEL (0.15)
F-5-10
HZY641201000ZC
HOUSING, PROP SHAFT (BFT115/150)
F-5-12
HZY690104000
BOLT, FLANGE 10 X 40
F-5-22
HZY691051003
BEARING, TAPER (50X90X28)
F-5-23
HZY691055004
BEARING, RADIAL BALL, 50X90X20
F-5-26
HZZ391252003
SEAL, PROPELLER SHAFT
F-5-11
PTOFS3R15P
SS PROP, 15.25 D X 15 P, BFT115-250
F-5-11
PTOFS3R17P
SS PROP, 15.25 D X 17 P, BFT115-250
F-5-11
PTOFS3R19P
SS PROP, 15.25 D X 19 P, BFT115-250
F-5-17
HZY390530000
SHIM C, BEVEL (0.30)
F-5-17
HZY390528000
SHIM A, BEVEL (0.10)
F-5-11
9999RUBE315
PROP, RUBEX ALUM E3, 15.0 DIA. X 15 PITCH, 3-BLADE (SEE NOTE)
F-5-21
HPT291005N01
THRUST BEARING
F-5-11
9999RUBE317
PROP, RUBEX ALUM E3, 14.8 DIA. X 17 PITCH, 3-BLADE (SEE NOTE)
F-5-11
9999RUBE319
PROP, RUBEX ALUM E3, 14.5 DIA. X 19 PITCH, 3-BLADE (SEE NOTE)
F-5-11
9999RUBE321
PROP, RUBEX ALUM E3, 14.3 DIA. X 21 PITCH, 3-BLADE (SEE NOTE)
F-5-28
HCO9451014000
CIRCLIP, EX 14
F-5-29
HCO9621107000
BALL, STEEL 7
F-5-30
HCO9621109000
BALL, STEEL 9
F-5-20
HMY591005601
BEARING, NEEDLE 30X37X26
F-5-18
HZV590563000
WASHER, PLAIN, 10MM
F-5-16
HZY390512000
WASHER, PROP
F-5-2
HZW124102B00
PIN, SHIFTER, 8X47
F-5-3
HZW124103B00
RING, CROSS PIN
F-5-13
HZW190301B00
NUT, CASTLE 18MM
F-5-19
HZW190758B00
PIN, SPLIT 4.0
F-5-25
HZW191101003
ROLLER, 3X12.8
F-5-15
HZW590509711
WASHER, THRUST BEARING
F-5-24
HZW591056003
BEARING, NEEDLE (25X32X26)
F-5-14
HZX290506C00
WASHER, PROP THRUST
F-5-11
PTOFS3R21P
SS PROP, 15.25 D X 21 P, BFT115-250
