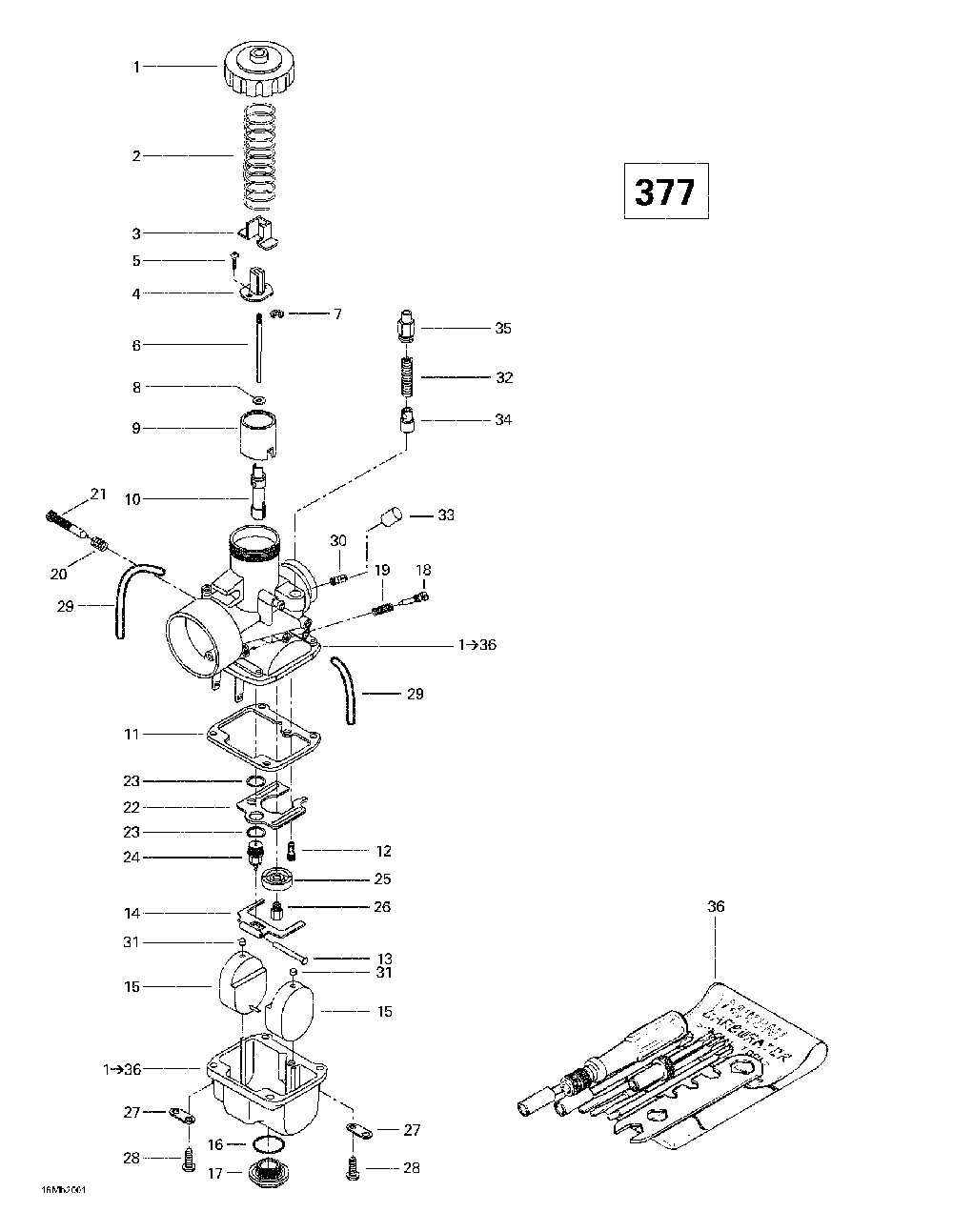

Карбюратор (377)

Ski-Doo (Bombardier) Formula Deluxe 380/500
Ski-Doo (Bombardier)
#oem кодцена
1
403138600
Carb.vm-30 *carb-vm-30 Includes 1 - 36. Formula S. Formula Dlx 380.
1
404103700
Couvercle Carb.*top-mix.chamb. Formula S. Formula Dlx 380.
2
404154800
Ressort *spring Formula S. Formula Dlx 380.
3
404122100
Couvercle *cover Formula S. Formula Dlx 380.
4
404160800
Connecteur *connector Formula S. Formula Dlx 380.
5
404121300
Vis W.rondelle*screw-with Washer Formula S. Formula Dlx 380.
6
404152600
Aiguille 6dp09 *needle Formula S. Formula Dlx 380.
7
404152400
Rondelle E *ring-e Formula S. Formula Dlx 380.
8
404117000
Joint Tampon *packing Formula S. Formula Dlx 380.
9
404128400
Tiroir Acc.2.5 *piston-val.2.5 Formula S. Formula Dlx 380.
10
404107000
Gicleur Aiguil.*jet Needle Formula S. Formula Dlx 380.
11
404104200
Joint *gasket Formula S. Formula Dlx 380.
12
404109100
Gicleur Ralenti*jet-pilot 40 Formula S. Formula Dlx 380.
13
404103300
Goupille Levier*pin-lever Formula S. Formula Dlx 380.
14
404107600
Levier Flotteur*lever-float Formula S. Formula Dlx 380.
15
404107100
Flotte *float Formula S. Formula Dlx 380.
16
404107300
Joint Torique *o-ring Formula S. Formula Dlx 380.
17
404107400
Vis Bouchon *screw-drain Plug Formula S. Formula Dlx 380.
18
404102300
Screw-air Formula S. Formula Dlx 380.
19
404101800
Ressort *spring Formula S. Formula Dlx 380.
20
404101700
Ressort *spring Formula S. Formula Dlx 380.
21
404109700
Vis *screw-idle Speed Formula S. Formula Dlx 380.
22
404109600
Chicane *baffle Formula S. Formula Dlx 380.
23
404101600
Rondelle Siege *washer-seat Formula S. Formula Dlx 380.
24
404103200
Pointeau Vs 1.5*valve-needle Formula S. Formula Dlx 380.
25
404110900
Bague Chicane *ring-baffle Formula S. Formula Dlx 380.
26
404126600
Gicleur Mj 140 *jet-main 140 Formula S. Formula Dlx 380.
27
404103000
Plaque *plate Formula S. Formula Dlx 380.
28
404102000
Screw-w/lock *screw-w/lockwasher Formula S. Formula Dlx 380.
29
404161880
Boyau *hose Formula S. Formula Dlx 380.
30
404153400
Raccord *nipple Formula S. Formula Dlx 380.
31
404105800
Capuchon *cap Formula S. Formula Dlx 380.
32
404127400
Ressort *spring Formula S. Formula Dlx 380.
33
404156600
Capuchon *cap Formula S. Formula Dlx 380.
34
404161000
Plongeur Ass. *plunger-assy Formula S. Formula Dlx 380.
35
404161100
Guide *guide Holder Formula S. Formula Dlx 380.
36
404112000
Trousse Outils *tool Kit Formula S. Formula Dlx 380.
