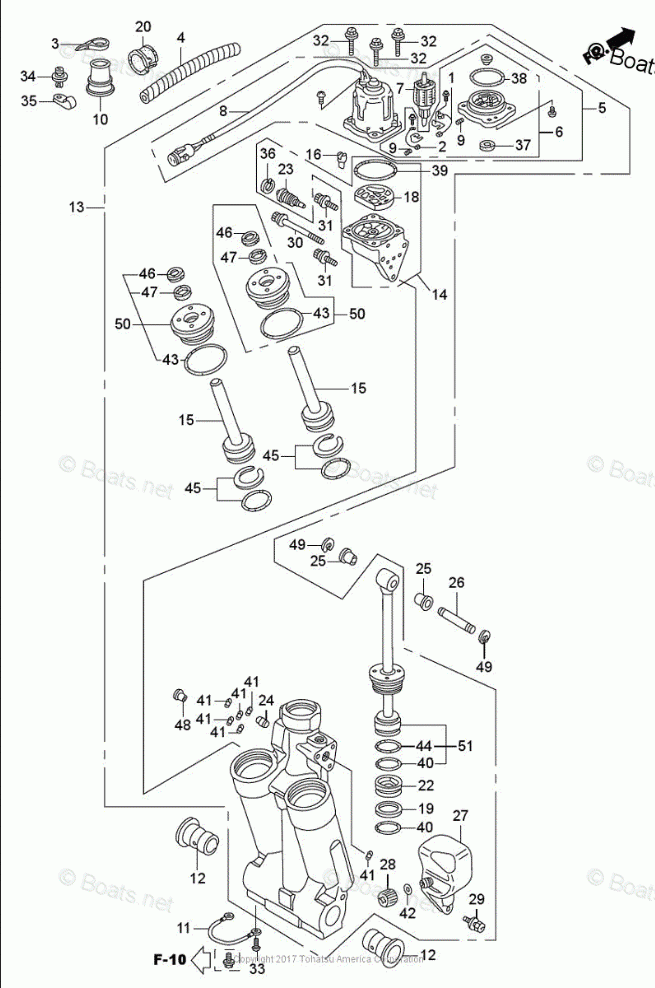

POWER TRIM & TILT

Tohatsu BFT225A
Tohatsu
#oem кодцена
F-11-49
HCO9454015029
E-RING, 15MM
F-11-47
HZW191361701
PACKING
F-11-36
HZW190652702
CIRCLIP, INTERNAL
F-11-38
HZW191207013
O-RING, 2.0X70.5
F-11-41
HZW191352702
O-RING, 1.8X7.7
F-11-42
HZW191353703
O-RING, 1.9X11
F-11-43
HZW191354701
O-RING, 3.5X35.7
F-11-44
HZW191355701
O-RING, 3.5X41.7
F-11-45
HZW191357701
O-RING SET, 3.5X31.7
F-11-46
HZW191358701
SEAL, WATER
F-11-48
HZW191557701
COLLAR, ORIFICE
F-11-31
HZW190115702
BOLT, SOCKET (B)
F-11-5
HZX236120013
MOTOR ASSY, POWER TILT
F-11-8
HZX236129003
YOKE ASSY.
F-11-13
HZX256000033
TRIM-TILT ASSY, POWER (BFT200/225/250)
F-11-7
HZY336123013
ARMATURE
F-11-11
HZY340219013
WIRE, LEAD (1.5X116MM)
F-11-14
HZY356100013
PUMP ASSY.
F-11-51
HZY356120013
ROD COMP, PISTON
F-11-23
HZY356170013
VALVE COMP, MANUAL
F-11-26
HZY356532000
PIN, UPPER CYLINDER
F-11-32
HZW190116702
BOLT, HEX
F-11-30
HZW190114702
BOLT, SOCKET (A)
F-11-3
HMG935701950
BAND, TY-RAP
F-11-39
HZV591302821
O-RING, 1.8X69.6
F-11-35
HSB090602003
CLIP, 10.7MM
F-11-9
HZV536136821
SPRING, MOTOR
F-11-12
HZV550214003
BUSHING, SWIVEL CASE
F-11-19
HZV556117821
RING, BACK UP
F-11-20
HZV556118820
BUSHING, MOTOR CODE
F-11-25
HZV556513000
BUSHING, LOWER CYLINDER
F-11-33
HZV590119000
SCREW, PAN, 6X8
F-11-34
HZV590127003
SCREW, RIVET, 5X10
F-11-37
HZV591203821
OIL SEAL
F-11-40
HZV591316821
O-RING, 3.5X38.7
F-11-29
HZW190113702
BOLT, RECESSED
F-11-4
HZW136104003
TUBE, SPIRAL (12X14.6)
F-11-10
HZW140107700
GROMMET, UNDER CASE (C)
F-11-15
HZW156110701
ROD COMP, PISTON (B)
F-11-16
HZW156113701
JOINT, DRIVE
F-11-18
HZW156116701
FILTER B
F-11-22
HZW156130702
PISTON COMP, FREE
F-11-24
HZW156180701
VALVE COMP, RESERVOIR
F-11-27
HZW156851703
TANK, OIL
F-11-28
HZW156860701
CAP COMP, OIL TANK
F-11-50
HZY956115023
GUIDE, ROD
