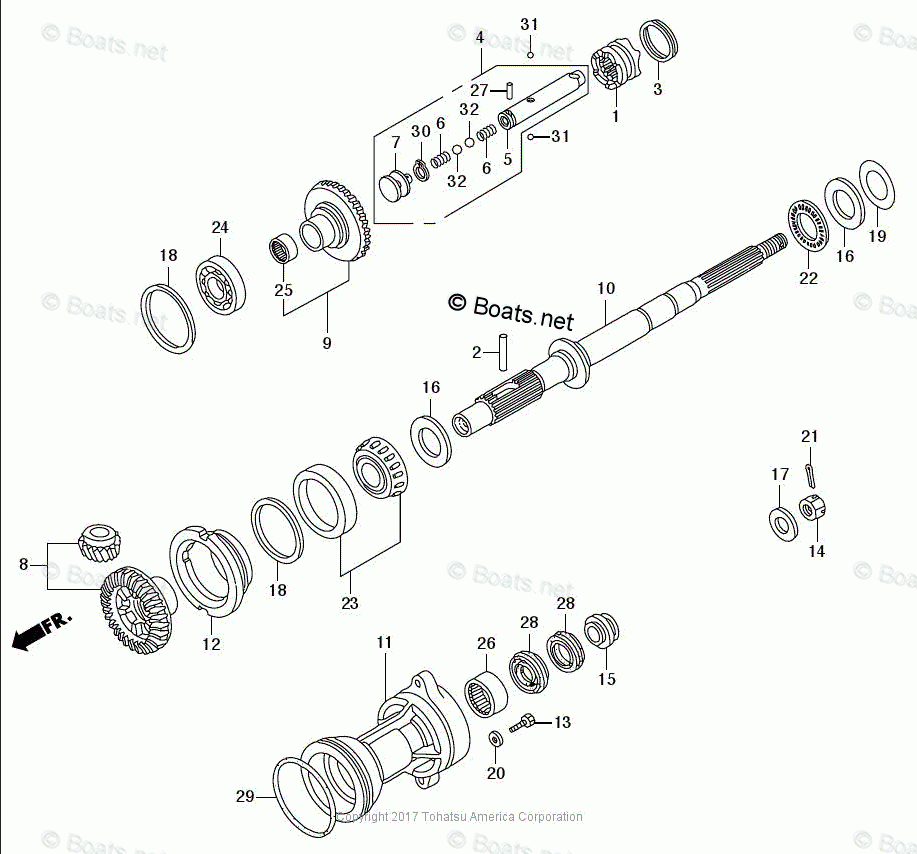

Propeller Shaft (Counter Rotation)

Tohatsu BFT225A
Tohatsu
#oem кодцена
F-5-1-30
HCO9451015000
CIRCLIP, EX 15
F-5-1-10
HZY341161B00
SHAFT, PROPELLER, BFT200/225A (COUNTER ROTAT)
F-5-1-29
HZY391351C00
O-RING, 110X3.1
F-5-1-27
HZY391151000
ROLLER, 3 X 13.8
F-5-1-26
HZY391057003
BEARING, NEEDLE, 32X42X30
F-5-1-24
HZY391055003
BEARING, ANGULAR, 50X90X30.2
F-5-1-23
HZY391051003
BEARING, TAPER, 50 X 90 X 21.5
F-5-1-18
HZY390531000
SHIM D, BEVEL (0.50)
F-5-1-18
HZY390530000
SHIM C, BEVEL (0.30)
F-5-1-18
HZY390529000
SHIM B, BEVEL (0.15)
F-5-1-18
HZY390528000
SHIM A, BEVEL (0.10)
F-5-1-17
HZY390512000
WASHER, PROP
F-5-1-13
HZY390123000
BOLT, HEX 12 X 45
F-5-1-11
HZY341201C00ZC
HOUSING, PROP SHAFT (BFT200/225)
F-5-1-7
HZY324124310
PLATE, SHIFT
F-5-1-31
HCO9621107000
BALL, STEEL 7
F-5-1-6
HZY324123000
SPRING, SHIFT
F-5-1-5
HZY324122A01
SLIDER, SHIFT
F-5-1-4
HZY324113A01
SLIDER, SHIFT
F-5-1-3
HZY324103000
RING, CROSS PIN
F-5-1-2
HZY324102000
PIN, SHIFTER, 8 X 50
F-5-1-1
HZY324101A01
SHIFTER, CLUTCH
F-5-1-15
HZX290506C00
WASHER, PROP THRUST
F-5-1-16
HZW590509711
WASHER, THRUST BEARING
F-5-1-21
HZW190758B00
PIN, SPLIT 4.0
F-5-1-14
HZW190301B00
NUT, CASTLE 18MM
F-5-1-20
HZV590559000
WASHER, PLAIN 12MM
F-5-1-22
HPT291005N01
THRUST BEARING
F-5-1-32
HCO9621112000
BALL, STEEL 12
F-5-1-28
HZZ391252003
SEAL, PROPELLER SHAFT
