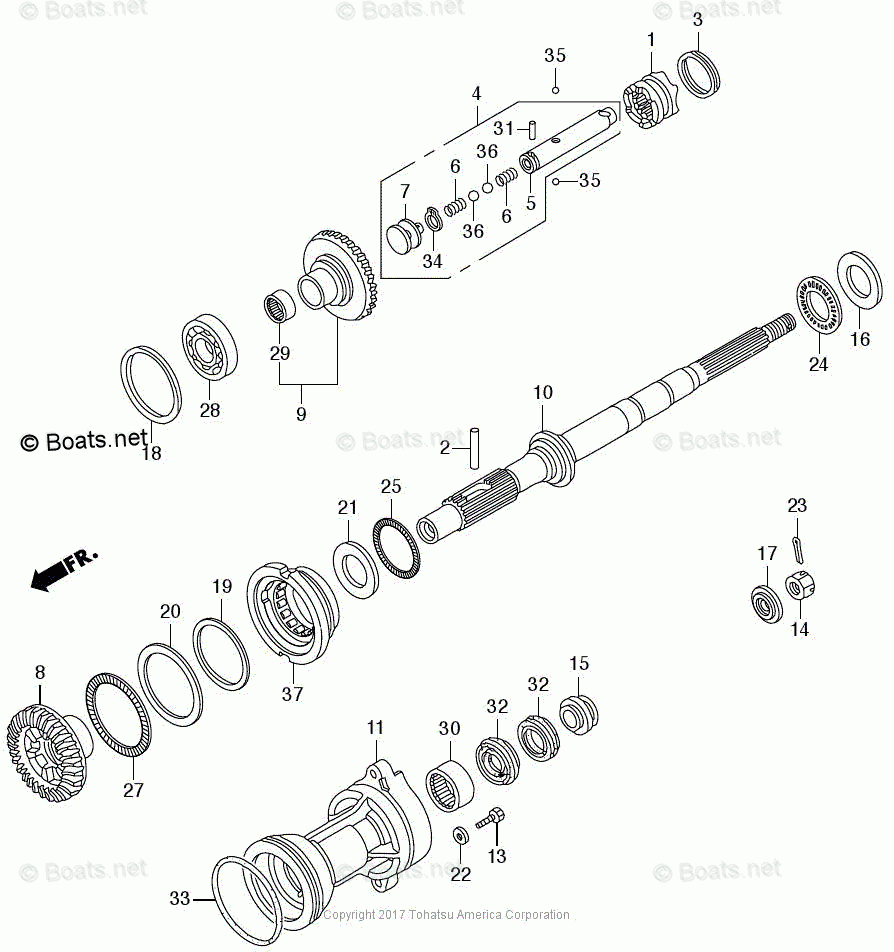

Propeller Shaft (Counter Rotation) Каталог оригинальных запчастей для лодочных моторов Tohatsu BFT250A (2017)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Tohatsu
2017
BFT250A
Propeller Shaft (Counter Rotation)
Propeller Shaft (Counter Rotation)

Propeller Shaft (Counter Rotation)

Tohatsu BFT250A

Propeller Shaft (Counter Rotation)

#

oem код

название

цена

F-5-1-34

CIRCLIP, EX 15

CIRCLIP, EX 15

F-5-1-33

O-RING, 121X3.1

O-RING, 121X3.1

F-5-1-31

ROLLER, 3 X 13.8

ROLLER, 3 X 13.8

F-5-1-30

BEARING, NEEDLE, 32X42X30

BEARING, NEEDLE, 32X42X30

F-5-1-17

WASHER, PROP

WASHER, PROP

F-5-1-13

BOLT, HEX 12 X 45

BOLT, HEX 12 X 45

F-5-1-7

PLATE, SHIFT

PLATE, SHIFT

F-5-1-6

SPRING, SHIFT

SPRING, SHIFT

F-5-1-5

SLIDER, SHIFT

SLIDER, SHIFT

F-5-1-4

SLIDER, SHIFT

SLIDER, SHIFT

F-5-1-3

RING, CROSS PIN

RING, CROSS PIN

F-5-1-2

PIN, SHIFTER, 8 X 50

PIN, SHIFTER, 8 X 50

F-5-1-28

BEARING, RADIAL BALL,

BEARING, RADIAL BALL,

F-5-1-35

BALL, STEEL 7

BALL, STEEL 7

F-5-1-17

WASHER, PROP THRUST

WASHER, PROP THRUST

F-5-1-15

WASHER, PROP THRUST

WASHER, PROP THRUST

F-5-1-11

HOUSING, PROP SHAFT (BFT250)

HOUSING, PROP SHAFT (BFT250)

F-5-1-1

SHIFTER, CLUTCH

SHIFTER, CLUTCH

F-5-1-16

WASHER, THRUST BEARING

WASHER, THRUST BEARING

F-5-1-23

PIN, SPLIT 4.0

PIN, SPLIT 4.0

F-5-1-14

NUT, CASTLE 18MM

NUT, CASTLE 18MM

F-5-1-22

WASHER, PLAIN 12MM

WASHER, PLAIN 12MM

F-5-1-24

THRUST BEARING

THRUST BEARING

F-5-1-36

BALL, STEEL 12

BALL, STEEL 12

F-5-1-32

SEAL, PROPELLER SHAFT

SEAL, PROPELLER SHAFT
