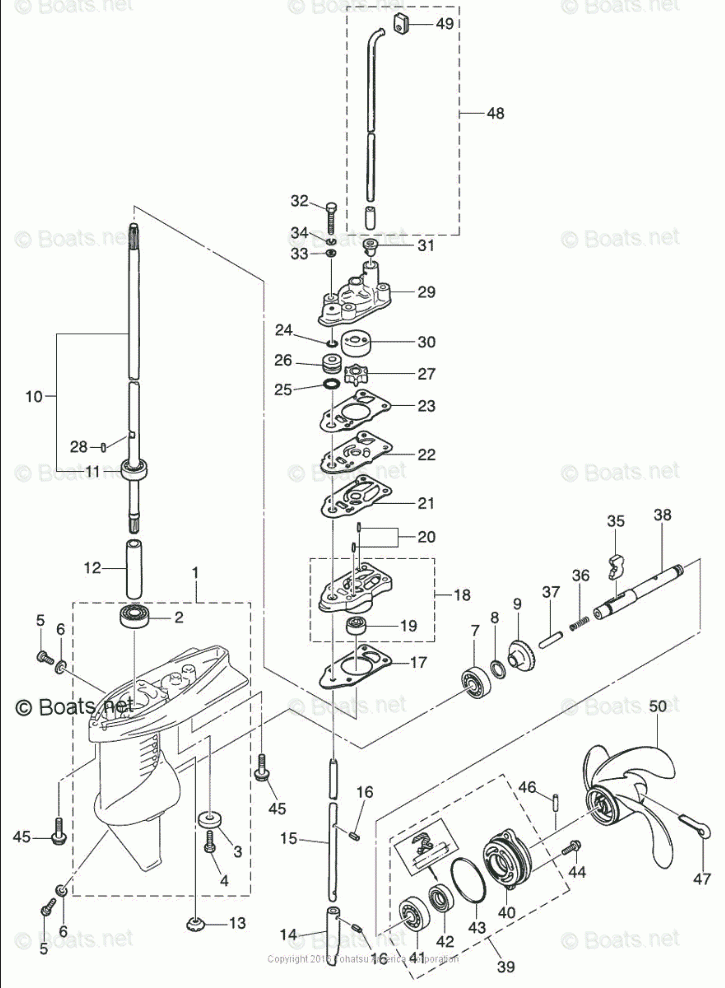

КАРТЕР КОРОБКИ ПЕРЕДАЧ
КАРТЕР КОРОБКИ ПЕРЕДАЧ

КАРТЕР КОРОБКИ ПЕРЕДАЧ

Tohatsu MFS2.5B

КАРТЕР КОРОБКИ ПЕРЕДАЧ

#

oem код

название

цена

10-25

O-RING

O-RING

10-40

PROP SHAFT HOUSING

PROP SHAFT HOUSING

10-30

LINER,WP-3.5B

LINER,WP-3.5B

10-29

CASE, WATERPUMP-3.5B

CASE, WATERPUMP-3.5B

10-23

GASKET, WATER PUMP-3.5B

GASKET, WATER PUMP-3.5B

10-17

GASKET, WATER PUMP-3.5B

GASKET, WATER PUMP-3.5B

10-21

GASKET, GUIDE PLATE

GASKET, GUIDE PLATE

10-31

GROMMET LOWER, WATER TUBE

GROMMET LOWER, WATER TUBE

10-14

CLUTCH CAM

CLUTCH CAM

10-15

CAM ROD S

CAM ROD S

10-15

CAM ROD L

CAM ROD L

10-26

BUSHING, CAM ROD

BUSHING, CAM ROD

10-50

PROPELLER 6 P ALUM-2.5A/3.5A/3.5B

PROPELLER 6 P ALUM-2.5A/3.5A/3.5B

10-39

PROP SHAFT HOUSING ASSY

PROP SHAFT HOUSING ASSY

10-10

DRIVE SHAFT ASSY S

DRIVE SHAFT ASSY S

10-18

PUMP CASE ASSY (LOWER)

PUMP CASE ASSY (LOWER)

10-4

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

10-44

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

10-32

BOLT

BOLT

10-33

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

10-34

SPRING WASHER (10 MULTIPLE)

SPRING WASHER (10 MULTIPLE)

10-16

SPRING PIN (10 MULTIPLE)

SPRING PIN (10 MULTIPLE)

10-47

SPLIT PIN (10 MULTIPLE)

SPLIT PIN (10 MULTIPLE)

10-2

BEARING

BEARING

10-11

BEARING

BEARING

10-41

BEARING

BEARING

10-12

SPACER

SPACER

10-37

PUSH ROD, CLUTCH

PUSH ROD, CLUTCH

10-42

OIL SEAL

OIL SEAL

10-28

KEY

KEY

10-50

PROP 3 BLADE RESIN (7.4 DIA. X 5.7 PITCH)

PROP 3 BLADE RESIN (7.4 DIA. X 5.7 PITCH)

10-46

SHEAR PIN-PACKAGE OF 5-(5/32 X 1 : 4mm X 24mm)

SHEAR PIN-PACKAGE OF 5-(5/32 X 1 : 4mm X 24mm)

10-50

PROP 2.5 HP (7.4 DIA. X 4.5 PITCH)-PLASTIC

PROP 2.5 HP (7.4 DIA. X 4.5 PITCH)-PLASTIC

10-5

OIL PLUG (8 X 1.25)

OIL PLUG (8 X 1.25)

10-6

GASKET (10 MULTIPLE)

GASKET (10 MULTIPLE)

10-3

ANODE

ANODE

10-43

O-RING

O-RING

10-9

GEAR A (FORWARD)

GEAR A (FORWARD)

10-8

SHIM KIT

SHIM KIT

10-13

BEVEL GEAR B (PINION)

BEVEL GEAR B (PINION)

10-27

IMPELLER NS3.5B/NS5B/4-6HP 4STR

IMPELLER NS3.5B/NS5B/4-6HP 4STR

10-24

O-RING A

O-RING A

10-36

SPRING, CLUTCH

SPRING, CLUTCH

10-45

BOLT, 6-30 PRECOATED

BOLT, 6-30 PRECOATED

10-10

DRIVE SHAFT L, F2.5A/3.5A

DRIVE SHAFT L, F2.5A/3.5A

10-22

WATER PUMP GUIDE PLATE

WATER PUMP GUIDE PLATE

10-49

GROMMET, WATER PIPE (UPPER)

GROMMET, WATER PIPE (UPPER)

10-48

WATER PIPE S, F2/3.5A

WATER PIPE S, F2/3.5A

10-48

WATER PIPE L, F2.5A/3.5A

WATER PIPE L, F2.5A/3.5A

10-20

KEY

KEY

10-1

GEAR CASE, F2.5AB/3.5AB

GEAR CASE, F2.5AB/3.5AB

10-19

OIL SEAL

OIL SEAL

10-50

PROP 3 BLADE RESIN (7.4 DIA. x 7 PITCH) PLASTIC

PROP 3 BLADE RESIN (7.4 DIA. x 7 PITCH) PLASTIC

10-38

PROPELLER SHAFT-3.5B

PROPELLER SHAFT-3.5B

10-35

CLUTCH-3.5B

CLUTCH-3.5B

10-7

BEARING

BEARING
