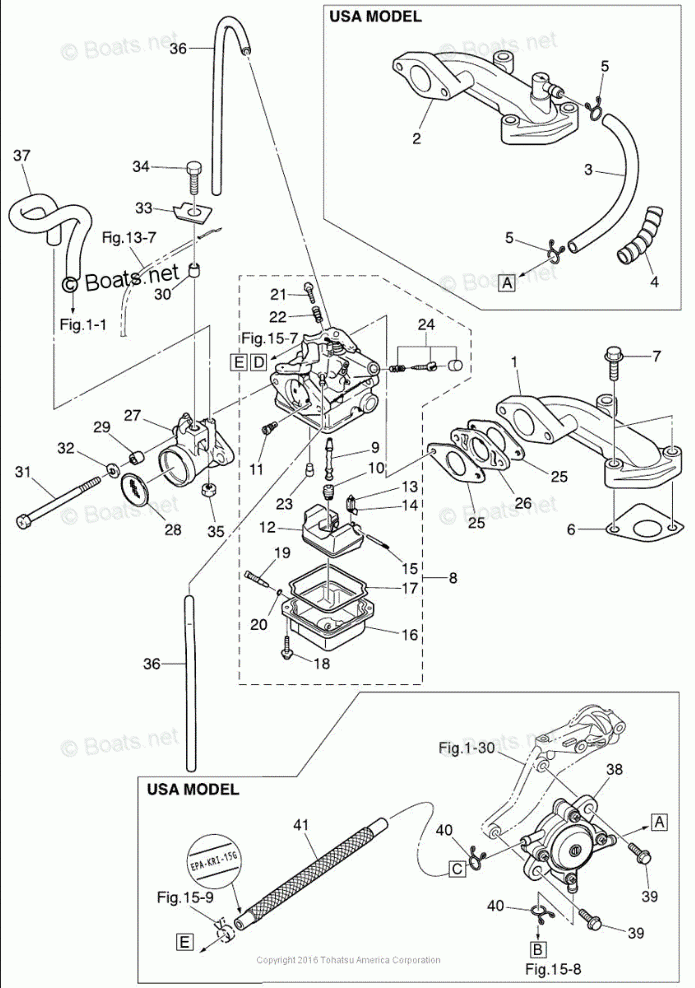

INTAKE MANIFOLD & CARBURETOR

Tohatsu MFS2.5B
Tohatsu
#oem кодцена
4-40
338022150
CLIP, FUEL PIPE
4-10
3R1032510
MAIN JET #65
4-22
3H6032670
SPRING, STOP SCREW
4-19
3H6032920
DRAIN SCREW
4-20
3H6032930
O-RING, DRAIN SCREW
4-26
3H6039521
INSULATOR
4-33
3H6635050
HOLDER, CABLE
4-30
3H6760791
COLLAR, 6.2-9-7.4
4-29
3H6760791
COLLAR, 6.2-9-7.4
4-4
3V1761480
SPIRAL TUBE PROTECTOR
4-13
3H6032400
FLOAT VALVE
4-34
9101030616
BOLT (10 MULTIPLE)
4-7
9101E30630
BOLT (10 MULTIPLE)
4-39
9101E35620
BOLT WASHER (10 MULTIPLE)
4-31
9161240865
BOLT
4-18
9225036412
SCREW
4-35
9301030600
NUT (10 MULTIPLE)
4-32
9401030600
WASHER (10 MULTIPLE)
4-36
98AB301000
FUEL PIPE 3MM 1/8 (1 EA.=1 METER)
4-14
3H6032440
CLIP
4-15
3H6032320
ARM PIN, FLOAT
4-6
3AB021040
INTAKE MANIFOLD GASKET
4-12
3GT032310
FLOAT, F3.5B/2.5B/2B
4-21
3AB032650
STOP SCREW
4-37
3AB074350
BREATHER HOSE
4-24
3AS032660
PILOT SCREW SET
4-1
3BRB020911
INTAKE MANIFOLD
4-5
3C7022150
CLIP
4-41
3GT021610
FUEL HOSE W/PROTECTOR L=390mm
4-16
3GT032210
FLOAT CHAMBER
4-23
3GT032560
RUBBER CAP
4-17
3H6032220
O-RING, FLOAT CHAMBER
4-38
3GT040000
FUEL PUMP, F2B/2.5B/3.5B
4-11
3GT049250
SLOW JET #125
4-2
3GTB020101
INTAKE MANIFOLD ASSY
4-8
3GU032000
CARBURETOR ASSY, F2.5A/B
4-9
3GU032520
MAIN NOZZLE
4-25
3H6020110
GASKET, CARBURETOR
4-27
3H6024110
AIR SILENCER
4-28
3H6026030
FLAME ARRESTER
4-3
98AB701000
FUEL PIPE 7MM (5/16) (1 EA.=1 METER)
