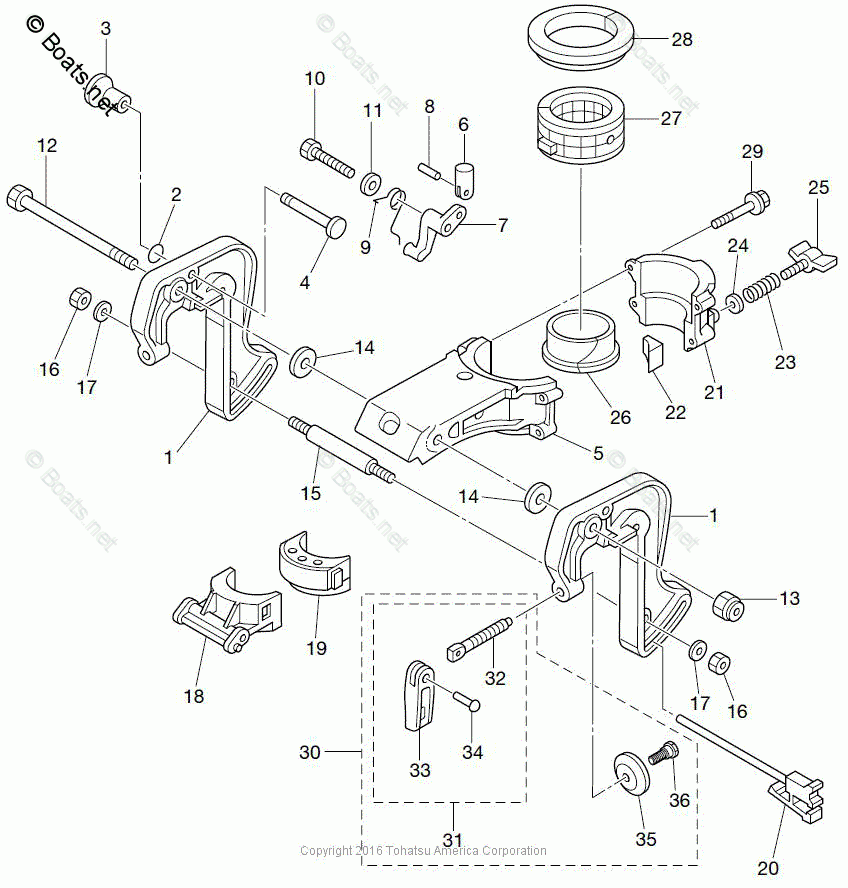

CLAMP BRACKET/SWIVEL BRACKET

Tohatsu MFS2.5B
Tohatsu
#oem кодцена
11-2
301660230
O-RING
11-28
3H6623250
THRUST BUSHING
11-21
3ABQ623921
SWIVEL BRACKET B
11-34
3C8621042
RIVET
11-36
3C8621070
SHOULDER BOLT
11-20
3F0621600
THRUST ROD, CLIP TYPE
11-30
3GTQ621051
CLAMP SCREW KIT, F2B/2.5B/3.5B-F4/5/6C
11-31
3GTQ621080
CLAMP SCREW ASSY, F2B/2.5B/3.5B-F4/5/6C
11-29
3V2600010
BOLT, 6-35 PRECOATED
11-1
3ABQ621112
CLAMP BRACKET (SEE NOTE)
11-10
9161E30650
BOLT
11-16
9301030600
NUT (10 MULTIPLE)
11-13
9304030800
NYLON NUT (10 MULTIPLE)
11-24
9401130600
WASHER (10 MULTIPLE)
11-17
9401130600
WASHER (10 MULTIPLE)
11-11
9401130600
WASHER (10 MULTIPLE)
11-5
3ABQ623911
SWIVEL BRACKET A
11-33
3ABQ621020
CLAMP SCREW HANDLE (AMB)
11-14
307621161
WASHER
11-35
332621011
PAD, CLAMP SCREW (THREADED STYLE)
11-12
309621152
BOLT
11-15
309621171
DISTANCE PIECE
11-22
309624412
FRICTION PLATE
11-23
309624461
SPRING, STEER. ADJUST SCREW
11-3
309624630
KNOB, T/STOPPER
11-25
309Q624422
STEERING ADJUST SCREW
11-32
369621061
CLAMP SCREW (THREADED STYLE)
11-9
3AB663360
SPRING
11-27
393624161
BUSHING UPPER
11-19
3AB613361
DAMPER (LOWER)
11-18
3AB622120
THRUST SUPPORTER
11-26
3AB623211
PIVOT BUSHING (BLACK)
11-4
3AB624640
TILT STOPPER
11-7
3AB630680
LEVER
11-6
3AB663340
STOPPER
11-8
9514030212
ROLL PIN (10 MULTIPLE)
