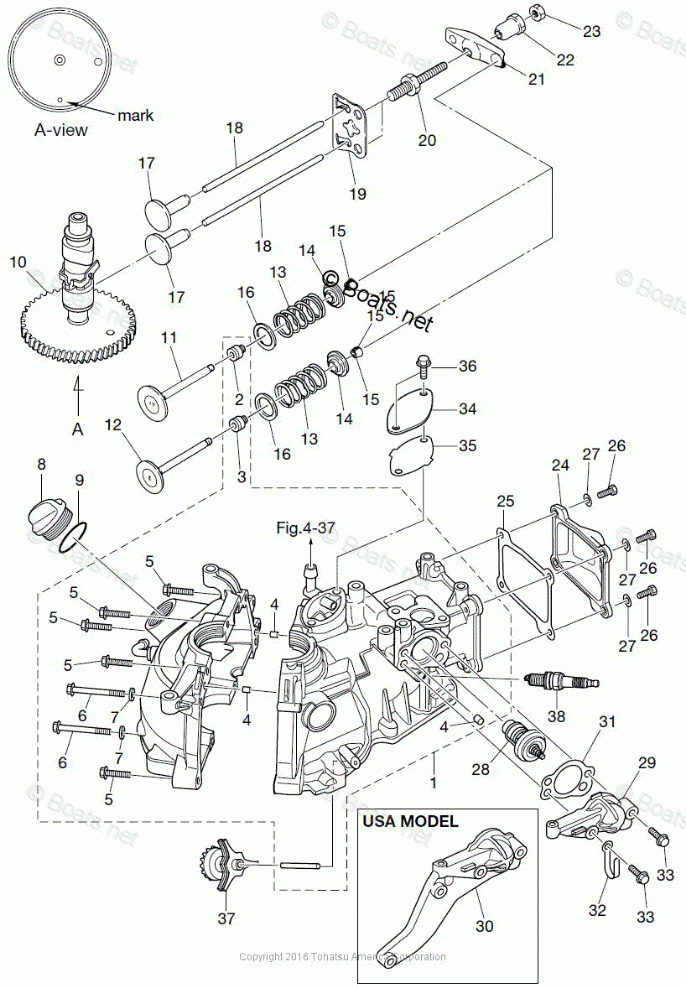

CYLINDER & CRANK CASE

Tohatsu MFS2.5B
Tohatsu
#oem кодцена
1-4
345011110
DOWEL PIN 6-12
1-3
3R3072060
SEAL, EXH VALVE STEM
1-20
3H6072340
BOLT, PIVOT
1-22
3H6072360
PIVOT, ROCKER ARM
1-23
3H6079370
ADJUST NUT (4.0mm THICK)
1-9
3R0074220
O-RING
1-8
3R0710151
FILLER CAP, ENGINE OIL
1-2
3R3072040
SEAL, INT VALVE STEM
1-12
3V1072020
EXHAUST VALVE
1-15
3H6072230
COTTER
1-14
3V1072210
RETAINER
1-26
9101030616
BOLT (10 MULTIPLE)
1-33
9101035630
BOLT (10 MULTIPLE)
1-36
9101E35616
BOLT WASHER (10 MULTIPLE)
1-5
9101E35635
BOLT WASHER (10 MULTIPLE)
1-6
9161F90675
BOLT
1-7
9401130600
WASHER (10 MULTIPLE)
1-18
3H6072320
PUSH ROD
1-16
3H6072050
SEAT, VALVE SPRING
1-32
398069720
CLAMP
1-35
3AB074320
BREATHER CHAMBER COVER GASKET
1-25
3AB010241
CYLINDER HEAD COVER GASKET
1-31
3AB010320
THERMOSTAT CAP GASKET
1-11
3AB072010
INTAKE VALVE
1-17
3AB072310
LIFTER
1-19
3AB072330
PUSH ROD PLATE
1-21
3AB072350
ROCKER ARM
1-34
3AB074310
BREATHER CHAMBER COVER
1-37
3AB076400
SLINGER
1-28
3H6010300
THERMOSTAT
1-24
3ABB010210
CYLINDER HEAD COVER
1-29
3ABB010310
THERMOSTAT CAP
1-13
3AE072030
VALVE SPRING
1-27
3C8663080
WASHER
1-10
3GT078100
CAMSHAFT ASSY, F2.5B/3.5B
1-30
3GTB010310
THERMOSTAT CAP
1-1
3GTB011002
CYLINDER CRANKCASE
1-38
970101103
SPARK PLUG, NGK DCPR6E, (SOLD INDIVIDUALLY)
