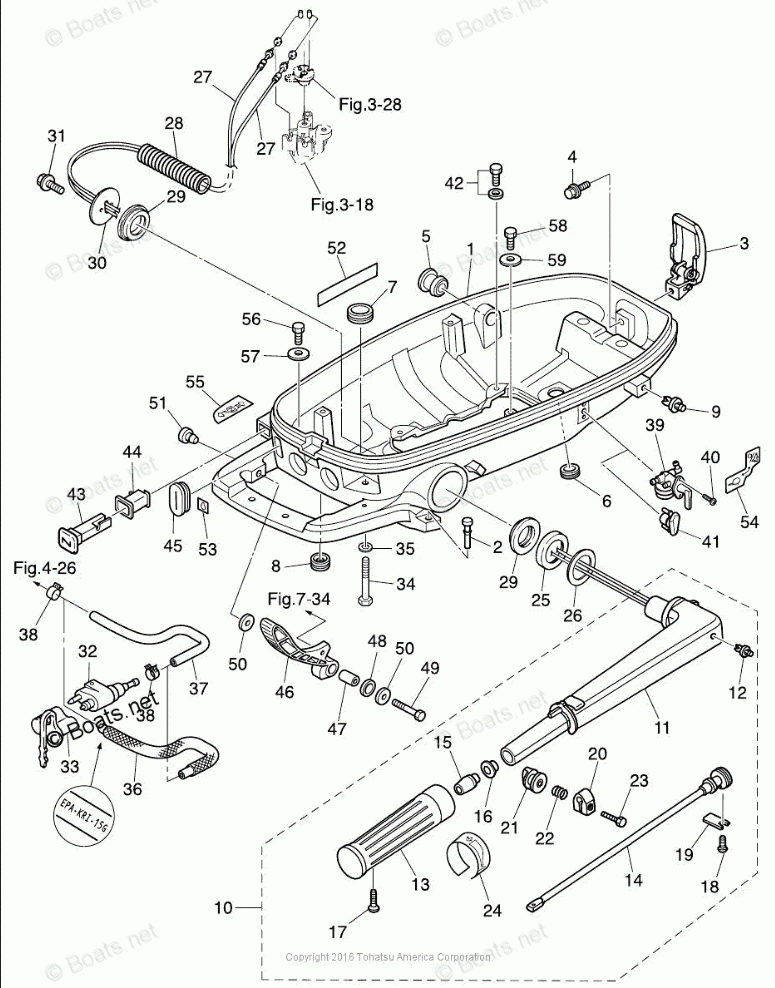

BOTTOM COWL & TILLER HANDLE
BOTTOM COWL & TILLER HANDLE

BOTTOM COWL & TILLER HANDLE

Tohatsu MFS4C

BOTTOM COWL & TILLER HANDLE

#

oem код

название

цена

10-6

SUPPORTING RUBBER, FUEL PIPE

SUPPORTING RUBBER, FUEL PIPE

10-22

SPRING

SPRING

10-16

BUSHING

BUSHING

10-43

CHOKE ROD (4-STROKE NEW STYLE)

CHOKE ROD (4-STROKE NEW STYLE)

10-52

LABEL, STORAGE

LABEL, STORAGE

10-33

PROTECTOR, FUEL CONN

PROTECTOR, FUEL CONN

10-39

FUEL COCK

FUEL COCK

10-36

FUEL HOSE W/PROTECTOR

FUEL HOSE W/PROTECTOR

10-37

FUEL HOSE

FUEL HOSE

10-55

DECAL, SHIFT

DECAL, SHIFT

10-54

DECAL, FUEL LEVEL

DECAL, FUEL LEVEL

10-13

GRIP

GRIP

10-51

PLUG ,CABLE TERMINAL

PLUG ,CABLE TERMINAL

10-20

FRICTION PIECE

FRICTION PIECE

10-14

THROTTLE SHAFT

THROTTLE SHAFT

10-15

SHAFT, RUBBER THROTTLE

SHAFT, RUBBER THROTTLE

10-21

ADJUST NUT

ADJUST NUT

10-11

TILLER HANDLE (AMB)

TILLER HANDLE (AMB)

10-24

THROTTLE LABEL

THROTTLE LABEL

10-56

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

10-58

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

10-34

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

10-23

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

10-31

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

10-4

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

10-42

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

10-17

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

10-18

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

10-29

BUSHING, STEERING HANDLE

BUSHING, STEERING HANDLE

10-25

SPACER, HANDLE

SPACER, HANDLE

10-59

WASHER, RACHET

WASHER, RACHET

10-47

COLLAR, 15.9-17.9

COLLAR, 15.9-17.9

10-57

WASHER, RACHET

WASHER, RACHET

10-50

WASHER, RACHET

WASHER, RACHET

10-8

GROMMET

GROMMET

10-12

PIN

PIN

10-9

PIN

PIN

10-32

FUEL CONN, ENGINE SIDE, MALE, 4 STROKE, 4-50

FUEL CONN, ENGINE SIDE, MALE, 4 STROKE, 4-50

10-3

COWL LATCH ASSY.

COWL LATCH ASSY.

10-19

SUPPORTER

SUPPORTER

10-26

WASHER

WASHER

10-7

GROMMET

GROMMET

10-28

PROTECTOR (L=180MM)

PROTECTOR (L=180MM)

10-53

DECAL, OIL PRESSURE

DECAL, OIL PRESSURE

10-30

COVER

COVER

10-49

BOLT

BOLT

10-48

WASHER, 30-45-1

WASHER, 30-45-1

10-27

THROTTLE WIRE

THROTTLE WIRE

10-46

SHIFT LEVER

SHIFT LEVER

10-45

GROMMET, 21-38.5

GROMMET, 21-38.5

10-44

BUSHING, CHOKE ROD

BUSHING, CHOKE ROD

10-41

GROMMET

GROMMET

10-2

GROMMET, 5.5-9.5-44

GROMMET, 5.5-9.5-44

10-5

GROMMET, 10.5-15.5-20.5-32

GROMMET, 10.5-15.5-20.5-32

10-40

SCREW

SCREW

10-1

LOWER MOTOR COVER, F5/6C (AMB)

LOWER MOTOR COVER, F5/6C (AMB)

10-38

CLIP, @ 9.4

CLIP, @ 9.4

10-10

TILLER HANDLE ASSY

TILLER HANDLE ASSY

10-35

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)
