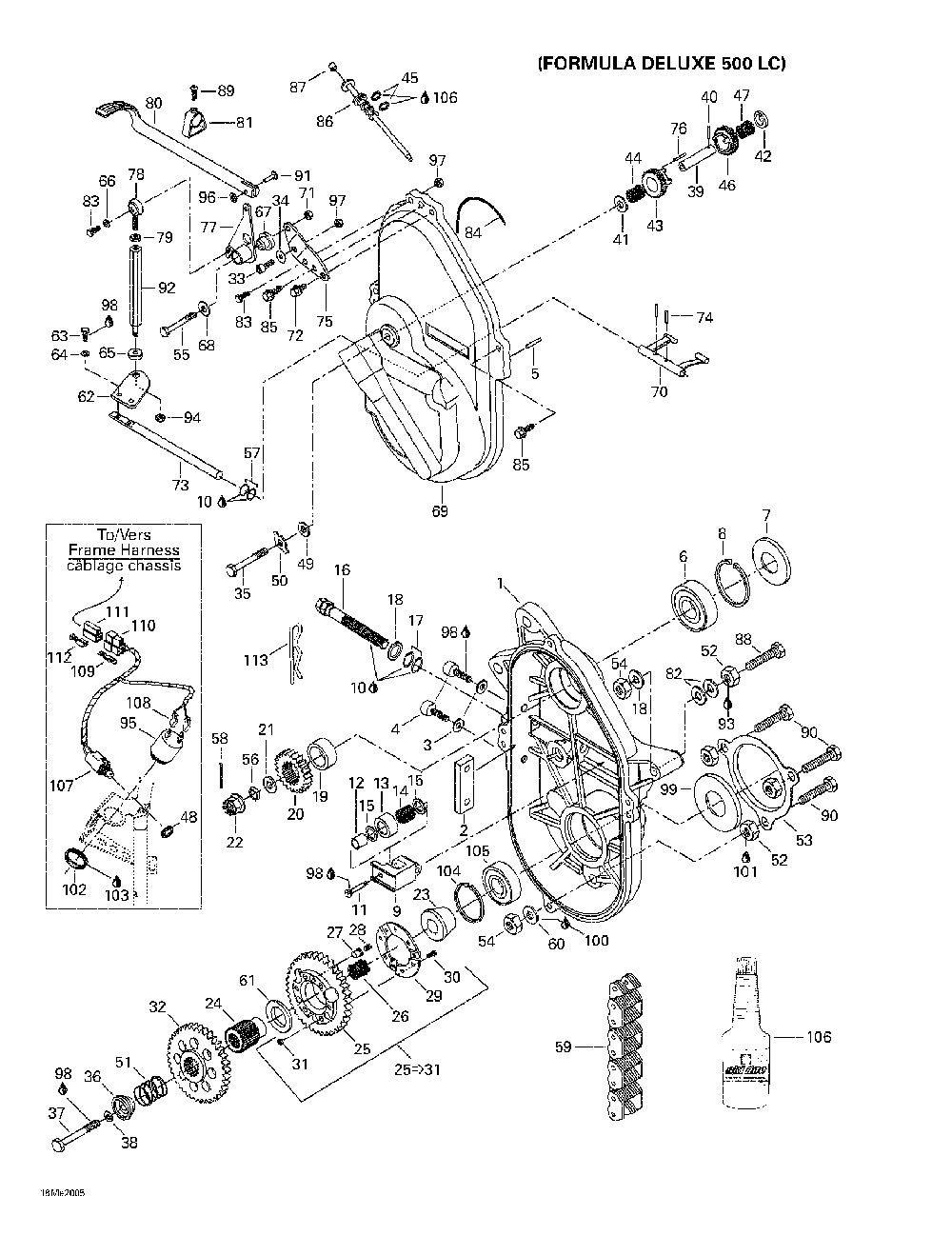

05- transmission (formula deluxe 500 lc)

Ski-Doo (Bombardier) Formula Deluxe 500 LC
Ski-Doo (Bombardier)
#oem кодцена
1
504151777
Carter Chaine U*case-chain Mach. Formula Dlx 500 Lc.
2
232210414
Nut-hex.castle Thin Din.937 Formula Dlx 500 Lc.
3
732900040
Rondelle Plate *flat Washer Formula Dlx 500 Lc.
4
207161644
Screw-hex.cap Din.933 Formula Dlx 500 Lc.
5
732620001
Goupille Cyl. *pin-cylinder Formula Dlx 500 Lc.
6
504152006
Roulement Bille*ball Bearing Formula Dlx 500 Lc.
7
414882800
Joint Etanche *oil Seal Formula Dlx 500 Lc.
8
371901700
Circlip Int. *circlip-int. Formula Dlx 500 Lc.
9
504081000
Tendeur Usine *tensioner-mach Formula Dlx 500 Lc.
10
293550033
Synthetic Grease 10x14oz Formula Dlx 500 Lc.
11
732601144
Screw Formula Dlx 500 Lc.
12
504080200
Entretoise *spacer Formula Dlx 500 Lc.
13
414531300
Rouleau *roller Formula Dlx 500 Lc.
14
405403000
Roul.aiguille *needle Bearing Formula Dlx 500 Lc.
15
504080300
Rondelle *washer Formula Dlx 500 Lc.
16
732601311
Vis De Reglage *screw Adjusting Formula Dlx 500 Lc.
17
414484400
Joint Torique *o-ring Formula Dlx 500 Lc.
18
234001410
0asher-flat Din.125a Formula Dlx 500 Lc.
19
504093400
Cale Epaisseur *shim Formula Dlx 500 Lc.
20
504078400
Roue Dentee 23d*sprocket 23th Formula Dlx 500 Lc.
21
504087100
Rondelle *washer Formula Dlx 500 Lc.
23
504076300
Bague D Appui *ring-retaining Formula Dlx 500 Lc.
24
504097700
Arbre De Couple*coupling Formula Dlx 500 Lc.
25
581095900
Pignon 44d Ass.*sprock-44th Assy Includes 25 - 31. Formula Dlx 500 Lc.
25
504088200
Roue Dentee 44d*sprocket 44th Formula Dlx 500 Lc.
26
414772600
Roulement Aig. *needle Bearing Formula Dlx 500 Lc.
27
504076800
Tige D Engagem.*pin-drive Formula Dlx 500 Lc.
28
414772700
Ressort *spring Formula Dlx 500 Lc.
29
504076100
Anneau Retenue *ring-retainer Formula Dlx 500 Lc.
30
207152044
Screw-hex.cap Din.933 Formula Dlx 500 Lc.
31
233551416
Nut-lock Spring Din.980v Formula Dlx 500 Lc.
32
504096800
Engr.coulis.56d*gear-sliding56 Formula Dlx 500 Lc.
33
205061644
Screw-socket Hd.din.912 Formula Dlx 500 Lc.
34
234061410
Washer-flat M6 Din.125a Formula Dlx 500 Lc.
35
207089044
Screw-hex.cap Din.931 Formula Dlx 500 Lc.
36
504151964
Capuchon *cap Formula Dlx 500 Lc.
37
207005044
Screw-hex.cap Iso.4014 Formula Dlx 500 Lc.
38
234100602
Washer-lock Spring Din.128a-a2 Formula Dlx 500 Lc.
39
504083100
Axe De Renverse*shaft-reverse Formula Dlx 500 Lc.
40
732804003
Ppin-rolled Din.1481 M3 X 12 Formula Dlx 500 Lc.
41
504077300
Entretoise *spacer Formula Dlx 500 Lc.
42
504078700
Bague *ring Formula Dlx 500 Lc.
43
581122200
Engren. 19d Ass*sprock-19 Teeth Assy. Includes 43 - 44. Formula Dlx 500 Lc.
44
414805000
Roul. Aiguille *needle Bearing Formula Dlx 500 Lc.
45
414969400
Joint Torique *o-ring Formula Dlx 500 Lc.
46
581098200
Pignon 19d Ass.*sprock-19th As Includes 46 - 47. Formula Dlx 500 Lc.
47
414773100
Roul. Aiguille *needle Bearing Formula Dlx 500 Lc.
48
250100012
Ecrou Laiton *nut-brass Formula Dlx 500 Lc.
49
504082900
Washer Din 7603 Formula Dlx 500 Lc.
50
504087700
Patte Verrouil.*lock-tab Formula Dlx 500 Lc.
51
504099200
Ressort Rappel *spring-release Formula Dlx 500 Lc.
52
504083800
Entretoise *spacer Formula Dlx 500 Lc.
53
501022100
Protecteur *protector Formula Dlx 500 Lc.
54
233601416
Nut-locking Elastic Din.982 Formula Dlx 500 Lc.
55
207084544
Screw-hex.cap Din.931 Formula Dlx 500 Lc.
56
417000900
Rondelle Res. *spring Washer Formula Dlx 500 Lc.
57
414773200
Joint Torique *o-ring Formula Dlx 500 Lc.
58
371801300
Goupille Fendue*pin-cotter Formula Dlx 500 Lc.
59
504151883
Chaine 72 M. *chain-driving Formula Dlx 500 Lc.
60
234001460
Washer-flat Din.125a Formula Dlx 500 Lc.
61
504094300
Rondelle *washer Formula Dlx 500 Lc.
62
504094602
Plaque *plate Formula Dlx 500 Lc.
63
207151444
Screw-hex.cap Din.933 Formula Dlx 500 Lc.
64
234151401
Washer-lock Helical Din.127b Formula Dlx 500 Lc.
65
570045700
Rondelle Caout.*washer-rubber Formula Dlx 500 Lc.
66
234161471
Washer-lock Black Din.127b Formula Dlx 500 Lc.
67
414927600
Douille Epaul. *flange-bushing Formula Dlx 500 Lc.
68
224081201
Washer-flat Formula Dlx 500 Lc.
69
504098500
Couvercle Usine*cover-mach. Formula Dlx 500 Lc.
70
504075800
Fourch. Usine *fork-machining Formula Dlx 500 Lc.
71
232581414
Nut-stop Elastic Din.985 Formula Dlx 500 Lc.
72
210261680
Screw-forming Hex.hd.fl.gm6174m Formula Dlx 500 Lc.
73
504142900
Axe *axle Formula Dlx 500 Lc.
74
414772500
Goup.ressort *pin-spring Formula Dlx 500 Lc.
75
504095000
Support Pivot *supp-pivot Formula Dlx 500 Lc.
76
570048600
Tige Alignement*rod-alignement Formula Dlx 500 Lc.
77
504094900
Plaque Piv.sou.*plate-piv.weld Formula Dlx 500 Lc.
78
414773400
Joint Rotule *ball Joint Formula Dlx 500 Lc.
79
232061414
Nut-hexagonal Din.934 Formula Dlx 500 Lc.
80
570044600
Poignee *handle Formula Dlx 500 Lc.
81
572071100
Butee Contact *stopper-switch Formula Dlx 500 Lc.
82
504073700
Rondelle *washer Formula Dlx 500 Lc.
83
207162044
Screw-hex.cap Din.933 Formula Dlx 500 Lc.
84
414362300
Joint Torique *o-ring Formula Dlx 500 Lc.
85
210263080
Screw-forming Hex.hd.fl.gm6174m Formula Dlx 500 Lc.
86
572092700
Bouchon Remp.as*cap-filler Assy. Includes 86 - 87. Formula Dlx 500 Lc.
87
206540490
Screw-set Socket Din.916 Formula Dlx 500 Lc.
88
207107044
Pscrew-hex.cap Iso.4017 Formula Dlx 500 Lc.
89
364901600
Screw-sheet Met.bind Head T-ab Formula Dlx 500 Lc.
90
207104544
Screw-hex.cap Iso.4017 Formula Dlx 500 Lc.
91
390008900
Rivet-steel Solid Formula Dlx 500 Lc.
92
504094700
Barre *bar Formula Dlx 500 Lc.
93
293800060
Loctite 243 *loctite-243 Formula Dlx 500 Lc.
94
232551414
Nut-stop Elastic Din.985 Formula Dlx 500 Lc.
95
414805102
Avertiss. Dc-bt*horn-dc-bt Formula Dlx 500 Lc.
96
389804300
Ecrou Pression *push-nut Formula Dlx 500 Lc.
97
232561414
Nut-stop Elastic Din.985 Formula Dlx 500 Lc.
98
293800005
Loctite 271 *loctite-271 Formula Dlx 500 Lc.
99
504151925
Anneau Etanche *oil Seal Ass Y Formula Dlx 500 Lc.
100
413702700
Loctite 515 *loctite-515 Formula Dlx 500 Lc.
102
414805101
Ecrou Plastique*nut-plastic. Formula Dlx 500 Lc.
104
414784900
Circlip Int. *circlip-int. Formula Dlx 500 Lc.
105
504152010
Roulement Bille*ball Bearing Formula Dlx 500 Lc.
106
413803300
Huile Chaine *oil-chain (12 X 355 Ml) Formula Dlx 500 Lc.
107
515175318
Interrupteur *switch Includes 107 - 110. Formula Dlx 500 Lc.
108
409010300
Cosse Femelle *terminal-femal. Formula Dlx 500 Lc.
109
409210000
Cosse Male *terminal-male Formula Dlx 500 Lc.
110
409204500
Logement Male *housing-male Formula Dlx 500 Lc.
111
409204600
Logement Femel.*housing-female Formula Dlx 500 Lc.
112
561503100
Cosse Femelle *terminal-femal. Formula Dlx 500 Lc.
113
414575600
Goup.surete *pin-hair Formula Dlx 500 Lc.
22
232210414
Nut-hex.castle Thin Din.937 Formula Dlx 500 Lc.
103
296000309
Scell.silicone *seal-silicone Formula Dlx 500 Lc.
