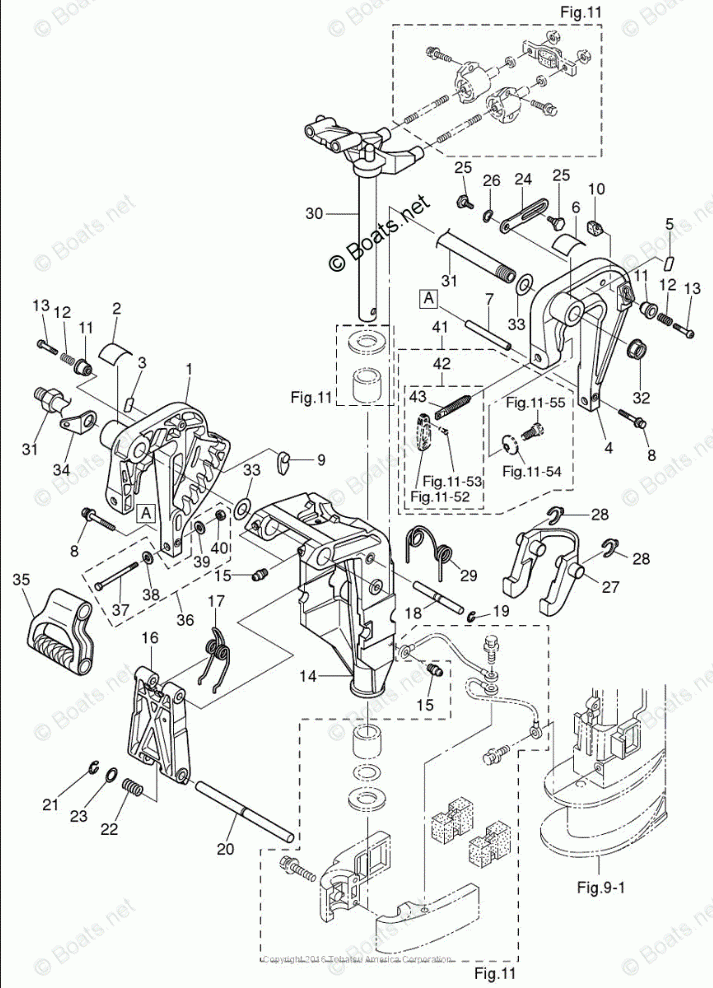

BRACKET (EP MODEL)

Tohatsu MFS8A3
Tohatsu
#oem кодцена
12-23
332613150
WASHER (10 MULTIPLE)
12-36
3V1721200
RIGGING BOLT SET
12-30
3AAQ620100
STEERING SHAFT (AMB)
12-41
3AAQ621050
CLAMP SCREW KIT (W/PAD BOLT)
12-42
3AAQ621080
CLAMP SCREW ASSY (NO PAD)
12-1
3AAQ621121
STERN BRACKET RIGHT (AMB) P TYPE
12-4
3AAQ621131
STERN BRACKET LEFT (AMB) P TYPE
12-14
3AAQ623101
SWIVEL BRACKET (AMB)
12-31
3AC621910
SWIVEL BRACKET BOLT
12-28
3DN663160
REVERSE LOCK CLIPS (PAIR)
12-12
3Y0661120
SPRING
12-6
3AA720490
DECAL, CO-PILOT
12-39
3Z0613340
WASHER, 8.5-34-3
12-8
9101E35640
BOLT WASHER (10 MULTIPLE)
12-37
9161E30885
BOLT
12-13
9215030535
SCREW (10 MULTIPLE)
12-40
9304030800
NYLON NUT (10 MULTIPLE)
12-38
9401030800
WASHER (10 MULTIPLE)
12-26
9414031000
WAVE WASHER (10 MULTIPLE)
12-19
9453030600
E-RING (10 MULTIPLE)
12-2
3AA844610
DECAL, TRIM POSITION
12-3
3AA675890
DECAL, LOWER TILT LIMIT
12-15
344671771
GREASE NIPPLE
12-17
3AA624340
SPRING
12-32
346621241
BRACKET NUT
12-35
3AA611990
CARRYING HANDLE
12-43
3AA621060
CLAMP SCREW
12-34
3AA621140
PLATE
12-33
3AA621160
WASHER
12-7
3AA621170
DISTANCE PIECE
12-9
3AA621630
PLATE, TRIM SETTING
12-10
3AA621640
PIECE, TILT LOCK
12-25
3AA624520
BOLT
12-5
3AA675840
DECAL, TILT LOCK
12-24
3AA624540
TILT STOPPER
12-11
3AA624630
KNOB
12-16
3AA629940
BODY, TILT STOPPER
12-18
3AA629950
SHAFT, TILT STOPPER (UPPER)
12-20
3AA629961
SHAFT, TILT STOPPER (LOWER)
12-22
3AA637270
SPRING
12-29
3AA663150
SPRING, REVERSE LOCK
12-27
3AA663221
REVERSE LOCK
12-21
9453030900
E-RING
