BRACKET (MF & EF MODEL)
BRACKET (MF & EF MODEL)

BRACKET (MF & EF MODEL)

Tohatsu MFS8B

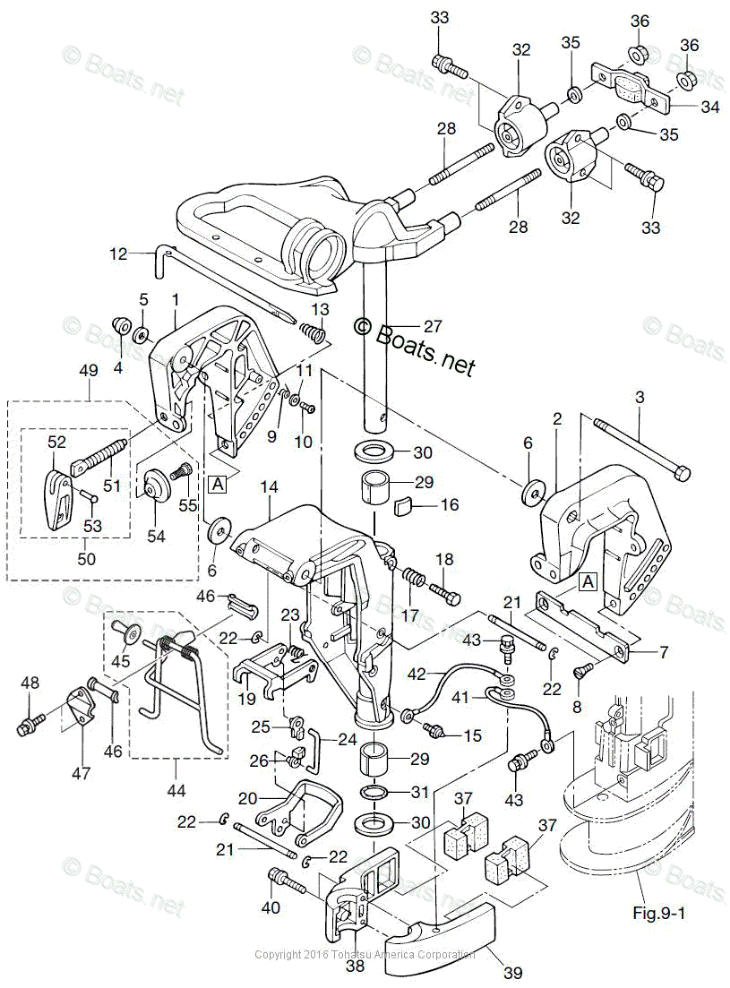

BRACKET (MF & EF MODEL)

#

oem код

название

цена

11-6

WASHER

WASHER

11-2

STERN BRACKET LEFT (AMB)

STERN BRACKET LEFT (AMB)

11-51

CLAMP SCREW

CLAMP SCREW

11-44

TILT STOPPER ASSY (W/ASSIST SPRING)

TILT STOPPER ASSY (W/ASSIST SPRING)

11-24

LINK, REVERSE LOCK

LINK, REVERSE LOCK

11-20

REVERSE LOCK ARM

REVERSE LOCK ARM

11-19

REVERSE LOCK

REVERSE LOCK

11-38

MOUNT BRACKET RIGHT (AMB)

MOUNT BRACKET RIGHT (AMB)

11-39

MOUNT BRACKET LEFT (AMB)

MOUNT BRACKET LEFT (AMB)

11-27

STEERING SHAFT (AMB)

STEERING SHAFT (AMB)

11-49

CLAMP SCREW KIT (W/PAD BOLT)

CLAMP SCREW KIT (W/PAD BOLT)

11-50

CLAMP SCREW ASSY

CLAMP SCREW ASSY

11-1

STERN BRACKET RIGHT (AMB)

STERN BRACKET RIGHT (AMB)

11-14

SWIVEL BRACKET (AMB)

SWIVEL BRACKET (AMB)

11-28

STUD BOLT

STUD BOLT

11-33

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

11-18

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

11-48

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

11-43

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

11-40

BOLT WASHER

BOLT WASHER

11-8

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

11-10

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

11-36

NUT (10 MULTIPLE)

NUT (10 MULTIPLE)

11-4

NYLON NUT (10 MULTIPLE)

NYLON NUT (10 MULTIPLE)

11-5

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

11-35

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

11-34

DAMPER UPPER

DAMPER UPPER

11-37

RUBBER MOUNT LOWER

RUBBER MOUNT LOWER

11-3

BOLT

BOLT

11-11

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

11-54

PAD, CLAMP SCREW (THREADED STYLE)

PAD, CLAMP SCREW (THREADED STYLE)

11-52

HANDLE, CLAMP SCREW

HANDLE, CLAMP SCREW

11-15

GREASE NIPPLE

GREASE NIPPLE

11-16

FRICTION PLATE

FRICTION PLATE

11-17

SPRING

SPRING

11-12

THRUST ROD

THRUST ROD

11-31

O-RING

O-RING

11-29

BUSHING

BUSHING

11-30

THRUST PLATE

THRUST PLATE

11-13

SPRING

SPRING

11-9

SPRING, STERN BRACKET

SPRING, STERN BRACKET

11-47

SET PLATE

SET PLATE

11-32

RUBBER MOUNT UPPER

RUBBER MOUNT UPPER

11-46

BUSHING

BUSHING

11-42

GROUND WIRE

GROUND WIRE

11-41

GROUND WIRE

GROUND WIRE

11-45

GRIP, TILT STOPPER

GRIP, TILT STOPPER

11-7

DISTANCE PLATE, BRACKET

DISTANCE PLATE, BRACKET

11-23

SPRING

SPRING

11-21

SHAFT, REVERSE LOCK

SHAFT, REVERSE LOCK

11-53

RIVET

RIVET

11-55

SHOULDER BOLT

SHOULDER BOLT

11-25

ROD SNAP

ROD SNAP

11-26

ROD SNAP, 3.5-2

ROD SNAP, 3.5-2

11-22

E-RING (10 MULTIPLE)

E-RING (10 MULTIPLE)
