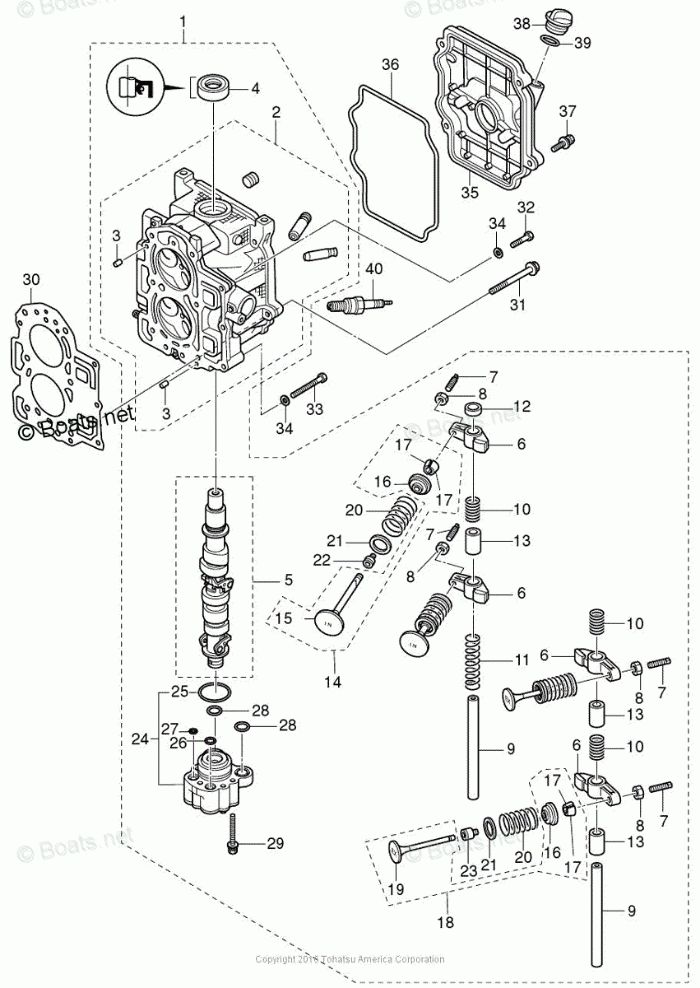

CYLINDER HEAD & OIL PUMP

Tohatsu MFS20D
Tohatsu
#oem кодцена
3-3
345011110
DOWEL PIN 6-12
3-22
3R3072040
SEAL, INT VALVE STEM
3-27
3H8076310
O-RING
3-26
3H8076320
O-RING
3-28
3H8076350
O-RING
3-25
3H8076390
O-RING
3-7
3R0072380
SCREW
3-39
3R0074220
O-RING
3-38
3R0710151
FILLER CAP, ENGINE OIL
3-23
3R3072060
SEAL, EXH VALVE STEM
3-13
3H8072390
COLLAR, 13.1-15.9-22.5
3-12
3R3072270
WASHER
3-9
3Y2079200
SHAFT, ROCKER ARM
3-33
9101030640
BOLT
3-37
9101E30630
BOLT (10 MULTIPLE)
3-29
9101E35635
BOLT WASHER (10 MULTIPLE)
3-32
9161140625
BOLT
3-34
9401130600
WASHER (10 MULTIPLE)
3-24
3H8076000
OIL PUMP
3-8
3H8072370
NUT
3-20
3AE072030
VALVE SPRING
3-30
3BJ010050
GASKET, CYLINDER HEAD F15C/F20C
3-6
3AE072350
ROCKER ARM
3-14
3AE078950
INTAKE VALVE
3-18
3AE078960
EXHAUST VALVE
3-15
3AE079010
INTAKE VALVE
3-19
3AE079020
EXHAUST VALVE
3-16
3AE079210
RETAINER
3-17
3AE079230
COTTER
3-36
3BJ010240
CYLINDER HEAD COVER GASKET
3-11
3H8072290
SPRING
3-5
3BK078100
CAMSHAFT ASSY
3-1
3BKB010000
CYLINDER HEAD ASSY, MFS9.9/15/20C
3-2
3BKB010010
CYLINDER HEAD, F15C/F20C
3-35
3BKB010210
CYLINDER HEAD COVER F15C/F20C
3-21
3H6072050
SEAT, VALVE SPRING
3-31
3H8010130
BOLT, CYLINDER HEAD
3-4
3H8070250
OIL SEAL
3-10
3H8072250
SPRING
3-40
970101103
SPARK PLUG, NGK DCPR6E, (SOLD INDIVIDUALLY)
