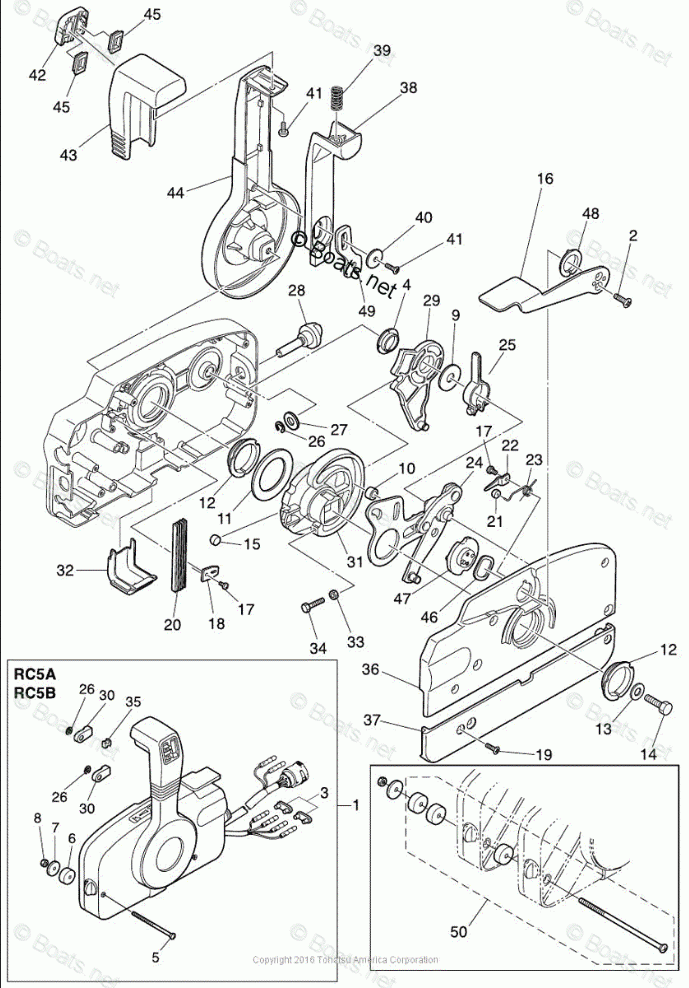

COMPONENT PARTS OF REMOTE CONTROL

Tohatsu MFS20D
Tohatsu
#oem кодцена
20-3
353760370
PLUG
20-1
3B7Q843403
RC BOX, RC5B (MFS-15/18B2-15/20D-25/30C EP) W/ ELECTRIC START W/O PTT
20-25
3A3844280
ARM
20-32
3A3844290
WIRE COVER
20-12
3A3844310
BUSHING A
20-4
3A3844320
BUSHING B
20-48
3A3844350
BUSHING
20-14
3A3844420
BOLT
20-42
3A3844510
FINISHER, TILT
20-45
3A3844520
PLUG, TILT SWITCH
20-1
3ACQ843301
R C BOX (RC5A) MFS8-30C, M40D2-90A W/PTT/ELECTRIC START
20-16
3B7Q843120
FREE THROTTLE LEVER
20-44
3B7Q843430
CONTROL LEVER (AMB)
20-22
3A3844260
RETAINER
20-37
3B7Q843660
REAR PANEL
20-36
3B7Q844410
REAR HOUSING
20-34
9101030525
BOLT (10 MULTIPLE)
20-17
9215030406
SCREW (10 MULTIPLE)
20-41
9215030510
SCREW (10 MULTIPLE)
20-2
9216030512
SCREW (10 MULTIPLE)
20-19
9216030516
SCREW (10 MULTIPLE)
20-33
9301030500
NUT (10 MULTIPLE)
20-8
9301030600
NUT (10 MULTIPLE)
20-13
9401030800
WASHER (10 MULTIPLE)
20-28
3A3844270
SCREW, FRICTION
20-23
3A3844250
SPRING, FREE ACCELERATOR
20-7
353843710
WASHER
20-35
3A3843760
GROMMET
20-15
353843880
ROLLER, THROTTLE DRUM
20-27
353843940
WASHER
20-50
3A3813010
TWIN SLRC KIT
20-30
3A3833142
TERMINAL EYE
20-20
3A3843070
SPRING
20-31
3A3843642
DRIVE GEAR
20-24
3A3843651
THROTTLE ARM
20-46
3A3843680
WAVE WASHER
20-6
3A3843740
SPACER
20-5
3A3843750
SCREW
20-29
3A3843810
SHIFT GEAR ASSY
20-21
3A3844240
ROLLER, FREE ACCELERATOR
20-9
3A3843830
WASHER
20-47
3A3843910
DRUM, FREE ACCELERATOR
20-38
3A3844010
ARM, NEUTRAL LOCK
20-39
3A3844030
SPRING
20-43
3A3844040
GRIP
20-49
3A3844060
PLATE, LOCK ARM
20-40
3A3844070
WASHER, LOCK ARM
20-10
3A3844210
ROLLER
20-11
3A3844220
THRUST PLATE
20-18
3A3844230
RETAINER
20-26
9453030600
E-RING (10 MULTIPLE)
