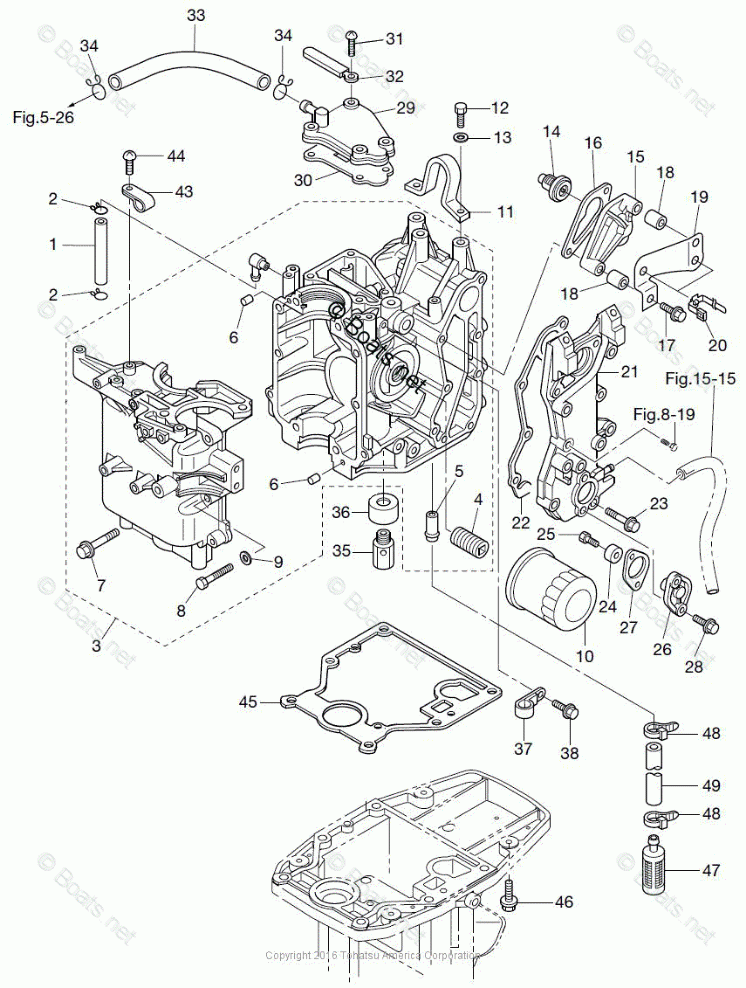

CYLINDER & CRANK CASE

Tohatsu MFS20D
Tohatsu
#oem кодцена
1-32
309069720
CLAMP
1-25
9101030616
BOLT (10 MULTIPLE)
1-27
3R3011440
GASKET
1-22
3R3023050
GASKET, EXHAUST COVER
1-31
3R3074300
SCREW, 6-20 (PRE-COATED)
1-30
3R3074321
GASKET
1-47
3R3077101
OIL STRAINER
1-29
3R3B074310
CAP, BREATHER COVER
1-35
3V2076200
PLUNGER
1-45
3V9074021
GASKET, OIL PAN
1-12
9101140820
BOLT
1-14
3NV010300
THERMOSTAT (60 DEGREES CELCIUS)
1-23
9101145625
BOLT (10 MULTIPLE)
1-38
9101E35612
BOLT WASHER (10 MULTIPLE)
1-28
9101E35620
BOLT WASHER (10 MULTIPLE)
1-17
9101E35650
BOLT
1-44
9215030616
SCREW (10 MULTIPLE)
1-9
9401130600
WASHER (10 MULTIPLE)
1-13
9402E30800
WASHER (10 MULTIPLE)
1-1
98AB501000
FUEL PIPE 5MM (3/16) (1 EA.=1 METER)
1-33
98AB701000
FUEL PIPE 7MM (5/16) (1 EA.=1 METER)
1-10
3R0076150
OIL FILTER, 9.9-60 HP 4-STROKE
1-8
3MC023190
BOLT, 60MM X 30MM (10-MULTIPLE)
1-2
338022150
CLIP, FUEL PIPE
1-46
3BJ610171
BOLT
1-6
345011110
DOWEL PIN 6-12
1-37
345069150
CORD CLAMP A
1-43
345069150
CORD CLAMP A
1-16
346010320
GASKET, THERMOSTAT
1-24
369602181
ANODE, ZINC (ROUND)
1-48
369843980
WIRE TIE BAND
1-18
3AL760790
COLLAR, 6.2-9-9.55
1-19
3BJ068690
BRACKET
1-20
3BJ843980
LEAD WIRE BAND 135
1-26
3H8B011431
CAP, ANODE
1-3
3BJB011001
CYLINDER CRANK CASE
1-21
3BJB023010
EXHAUST COVER
1-34
3C7022150
CLIP
1-11
3C7B015132
HANGER
1-15
3H6B010310
CAP, THERMOSTAT
1-7
3H8010121
BOLT
1-5
3H8020930
NIPPLE
1-36
3H8076290
COVER, PLUNGER
1-4
3H8076360
BOLT-OIL FILTER MOUNT
1-49
98AH951000
HOSE
