AIR COMPRESSOR Каталог оригинальных запчастей для лодочных моторов Tohatsu MD40B2 (2016)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

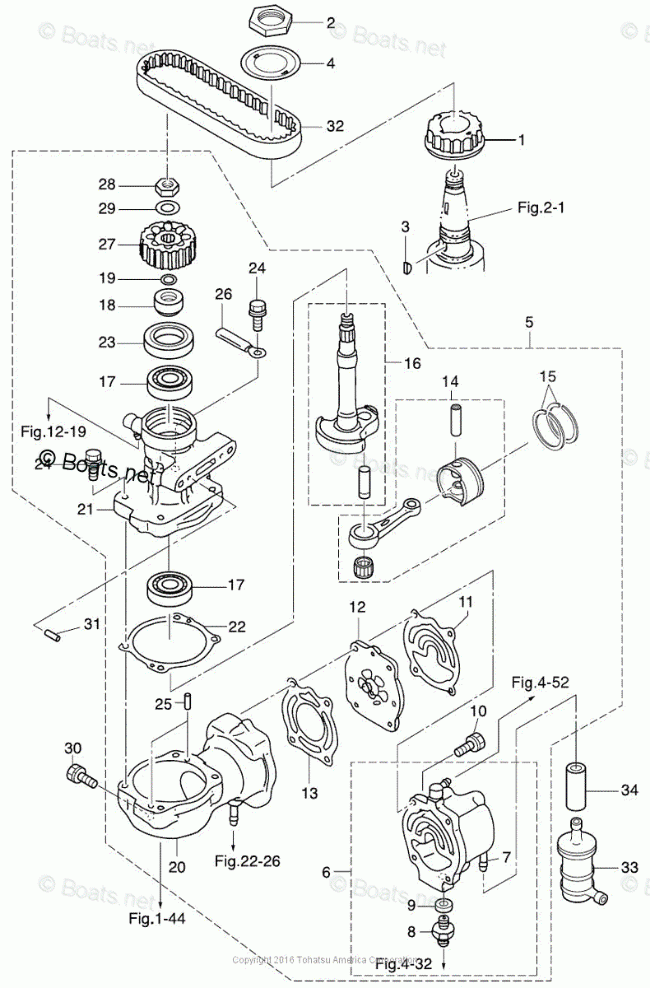

AIR COMPRESSOR

Tohatsu MD40B2

AIR COMPRESSOR

#

oem код

название

цена

5-28

MAGNETO NUT

MAGNETO NUT

5-15

PISTON RING, AIR COMPRESSOR

PISTON RING, AIR COMPRESSOR

5-17

BEARING

BEARING

5-24

BOLT WASHER (10 MULTIPLE)

BOLT WASHER (10 MULTIPLE)

5-10

BOLT

BOLT

5-30

BOLT W/SPRING WASHER

BOLT W/SPRING WASHER

5-21

HOUSING, AIR COMPRESSOR

HOUSING, AIR COMPRESSOR

5-3

MAGNETO KEY

MAGNETO KEY

5-2

NUT, PULLEY

NUT, PULLEY

5-4

BELT GUIDE

BELT GUIDE

5-27

DRIVEN PULLEY

DRIVEN PULLEY

5-32

DRIVE BELT

DRIVE BELT

5-1

DRIVE PULLEY

DRIVE PULLEY

5-22

GASKET, COMPRESSOR HOUSING

GASKET, COMPRESSOR HOUSING

5-19

O-RING

O-RING

5-23

OIL SEAL

OIL SEAL

5-13

GASKET, VALVE SEAT

GASKET, VALVE SEAT

5-26

CLAMP

CLAMP

5-5

AIR COMPRESSOR ASSY

AIR COMPRESSOR ASSY

5-25

DOWEL PIN,4-10

DOWEL PIN,4-10

5-31

DOWEL PIN,4-10

DOWEL PIN,4-10

5-29

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

5-33

AIR FILTER MD40/50B2/75/90C2/115A2 (TLDI)

AIR FILTER MD40/50B2/75/90C2/115A2 (TLDI)

5-14

PISTON, RINGS CONN ROD, AIR COMPRESSOR

PISTON, RINGS CONN ROD, AIR COMPRESSOR

5-16

CRANKSHAFT ASSY, AIR COMPRESSOR

CRANKSHAFT ASSY, AIR COMPRESSOR

5-6

HEAD, COMPRESSOR ASSY (WITH NIPPLE)

HEAD, COMPRESSOR ASSY (WITH NIPPLE)

5-11

GASKET, COMPRESSOR HEAD

GASKET, COMPRESSOR HEAD

5-20

CYLINDER, COMPRESSOR

CYLINDER, COMPRESSOR

5-7

NIPPLE

NIPPLE

5-18

COLLAR, 13.5-25-13

COLLAR, 13.5-25-13

5-8

ADAPTER, HOSE JOINT

ADAPTER, HOSE JOINT

5-9

WASHER, METAL

WASHER, METAL

5-12

REED VALVE ASSY--AIR COMPRESSOR

REED VALVE ASSY--AIR COMPRESSOR

5-34

HOSE

HOSE
