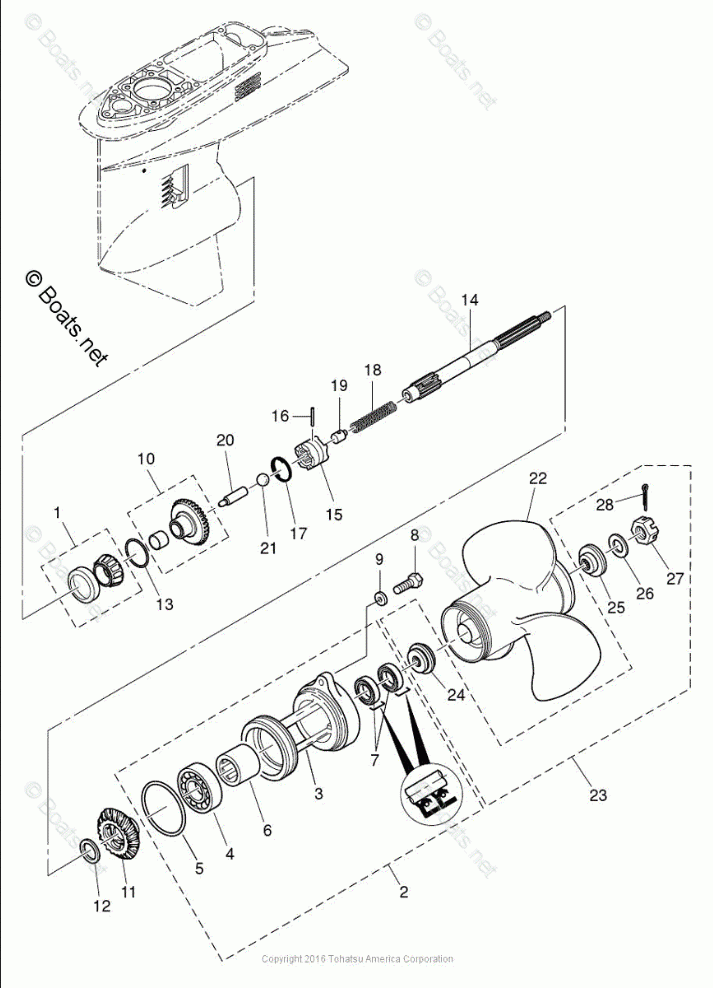

Gear Case (Propeller Shaft) MD30/40/50B2

Tohatsu MD40B2
Tohatsu
#oem кодцена
15A-5
345601030
O-RING
15A-2
3C8Q601001
PROP SHAFT HOUSING ASSY (AMB)
15A-4
960106007
BEARING
15A-28
9515030325
SPLIT PIN (10 MULTIPLE)
15A-9
9401130600
WASHER (10 MULTIPLE)
15A-23
3TW873260
PROP HDWR KIT D40B2/50B2,F40/50
15A-25
3TW642320
STOPPER
15A-26
3TW641240
WASHER,PROP NUT (D40/50B2)
15A-22
3T5B645320
PROP 40C/40D, 50D (11.0 DIA X 15 PITCH), BLACK
15A-22
3T5B645290
PROP 40C/40D, 50D (11.1 DIA. X 14 PITCH), BLACK
15A-22
3T5B645270
PROP 40C/40D, 50D (11.1 DIA. X 13 PITCH), BLACK
15A-22
3T5B645250
PROP 40C/40D, 50D (11.4 DIA. X 12 PITCH), BLACK
15A-22
3T5B645230
PROP 40C/40D-50D2/D40-50,F40-50 (11.6 DIA. X 11 PITCH), BLACK
15A-22
3T5B645180
PROP 40D/50D (12.1 DIA. X 9 PITCH), BLACK-WILL NOT FIT 40C
15A-7
3F3602230
OIL SEAL 22-37-8
15A-3
3C8Q601011
HOUSING, PROPELLER SHAFT (AMB)
15A-24
3C8642310
THRUST HOLDER(40C;40D;50D)
15A-6
345602110
NEEDLE BEARING A
15A-10
3C8640101
BEVEL GEAR A (FORWARD)
15A-1
345602150
BEARING, TAPERED ROLLER, 32007JR
15A-12
345640320
WASHER
15A-22
348B641081
PROP 40C,D-50D (11.4 DIA. X 7.1 PITCH) 4 BLADE
15A-13
353640330
SHIM KIT
15A-27
353641210
PROP NUT(40D-140) 21MM (WRENCH)
15A-8
3C8601082
BOLT 6-25
15A-11
3C8640300
BEVEL GEAR C (REVERSE)
15A-20
3C8642231
PUSH ROD,CLUTCH-25C2/30A3/40/50D
15A-14
3C8642110
PROPELLER SHAFT (12 SPLINE)
15A-15
3C8642152
CLUTCH
15A-16
3C8642170
CLUTCH PIN
15A-17
3C8642191
SNAP, CLUTCH PIN-40/50D
15A-18
3C8642210
SPRING
15A-19
3C8642220
SPRING HOLDER, CLUTCH
15A-21
9650020803
SST BALL
