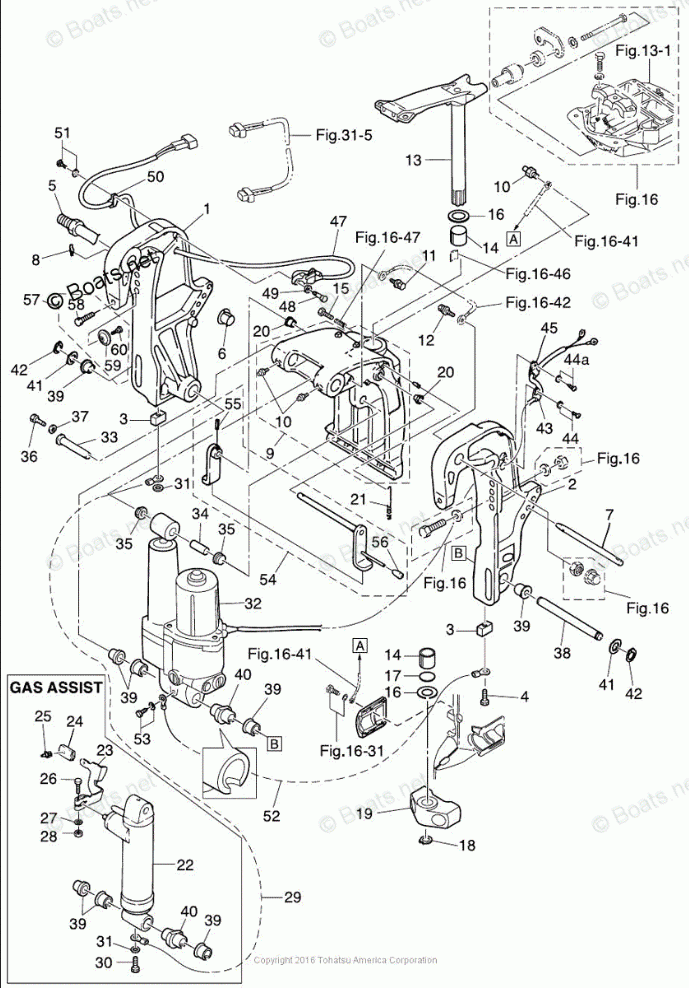

BRACKET (2) POWER TRIM & TILT / GAS ASSIST

Tohatsu MD40B2
Tohatsu
#oem кодцена
18-59
332621011
PAD, CLAMP SCREW (THREADED STYLE)
18-30
9101035608
BOLT
18-34
3R0770750
BUSHING, 13-16-40
18-35
3R0770760
BUSHING, 13-17-19.5
18-41
3R0771120
WASHER
18-7
3R0771180
THRUST ROD
18-26
3V2600010
BOLT, 6-35 PRECOATED
18-47
3Z4725740
TRIM SENSOR (2-WIRE)
18-40
3Z5771030
BUSHING, 18-24-60
18-32
3Z5771502
POWER TRIM TILT ASSY, D40/50 (AMB)
18-22
3Z5776010
GAS SHOCK ABSORBER
18-19
3Z5Q614110
MOUNT BRACKET (AMB)
18-36
9101030612
BOLT (10 MULTIPLE)
18-48
9101030620
BOLT (10 MULTIPLE)
18-4
9101035630
BOLT (10 MULTIPLE)
18-21
3R0624730
SPRING, TILT STOPPER
18-15
9101E30830
BOLT (10 MULTIPLE)
18-12
9101E35612
BOLT WASHER (10 MULTIPLE)
18-11
9101E35612
BOLT WASHER (10 MULTIPLE)
18-53
9101E35612
BOLT WASHER (10 MULTIPLE)
18-51
9215035612
SCREW (10 MULTIPLE)
18-44A
9215035612
SCREW (10 MULTIPLE)
18-44
9215035612
SCREW (10 MULTIPLE)
18-27
9301030600
NUT (10 MULTIPLE)
18-31
9401030600
WASHER (10 MULTIPLE)
18-28
9401130600
WASHER (10 MULTIPLE)
18-42
9451031800
C-RING
18-18
9451272800
C-RING
18-55
9514033516
SPRING PIN (10 MULTIPLE)
18-23
3R0663110
LOCK LEVER
18-38
3KY771010
CYLINDER PIN (LOWER)
18-50
336069730
CLAMP
18-5
3AD621910
SWIVEL BRACKET BOLT (PTT)
18-43
336069730
CLAMP
18-10
344671771
GREASE NIPPLE
18-37
345051221
WASHER, RACHET
18-45
345069150
CORD CLAMP A
18-25
346663340
STOPPER
18-17
353624150
O-RING
18-14
353624170
BUSHING
18-16
353624231
THRUST PLATE
18-20
353632070
COLLAR
18-56
369624331
GRIP
18-52
398623961
GROUND WIRE
18-54
3AC624661
TILT STOPPER (GAS ASSIST)
18-24
3AL663330
LOCK LEVER GRIP
18-33
3KY770710
CYLINDER PIN (UPPER)
18-3
3B7602181
ANODE
18-60
3C8621070
SHOULDER BOLT
18-29
3C8623961
GROUND WIRE
18-49
3C8663080
WASHER
18-39
3C8770761
BUSHING, 18-24-22
18-6
3C8772130
BUSHING
18-58
3C8772160
CLAMP SCREW (PTT)
18-57
3C8772170
CLAMP SCREW KIT
18-54
3GF624661
TILT STOPPER (PTT TYPE)
18-13
3GFQ620100
STEERING SHAFT ASSY, PTT (AMB)
18-9
3GFQ772080
SWIVEL BRACKET (MD40B2/50B2)
18-1
3GFQ772110
CLAMP BRACKET (PPT) RIGHT, MD50B
18-2
3GFQ772120
CLAMP BRACKET (PPT) LEFT, MD50B
18-8
9516031000
R-PIN D=10MM
